Edge for AI PCs - Micro Platform for Edge Computing PC

Edge Computing is a distributed computing model in which it occurs near a physical location where data is collected and analyzed, rather than on a centralized server or in the cloud. This new infrastructure includes sensors to collect data and Edge servers to securely process data in real time in the field, as well as connect other devices such as laptops and smartphones to the network.

Micro Platform for Edge computing is important as it creates new and improved ways for industrial and enterprise-grade enterprises to maximize operational efficiency, improve productivity and security, automate all major business processes, and ensure continuous availability. It is the leading method for achieving the digital transformation of your business.

The concept of Micro Platform for Edge Computing is integral to the next industrial revolution, transforming manufacturing and services.

________________________________________________________________________________________________________________

More Edge AI PC @ Desktop Version

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

2550L2D-MxPC	D2550	NM10	2 DDR3SO	Intel HD 3650	2 Broadcom	4 R+2 H	2 R	1 HDMI+1 VGA	PCIe 1x	2xPS/2	5.1 ALC662
X-D1540L2	D-1540	Broadwell-u	4 DDR4	Aspeed AST2400	2 Intel	4 H	2 R	1 VGA	PCIe 16x	TPM	option
X-D1540L4	D-1540	Broadwell-u	4 DDR4	Aspeed AST2400	4 Intel+1 IPMI	4 H	2 R	1 VGA	PCIe 16x	TPM	option
H110-G330-6DP	6/7th Socket 1151	H110	2 DDR3SO	Radeon 7750	2 Intel	4 R	1 F	6 DP	2 MiniPCIe		5.1 ALC662
H110L2C12	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	2 R+2 H	4 R	1 DP+1 HDMI+1 VGA	2 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
Poly X299E4	Socket 2066 Core X-Series	X299	8 DDR4	By Graphics Card	1 Intel\i219V+1 Intel\i211AT	4 R+4 H	5 R+6 H	by Graphics Card	4 PCIe 16x+1 PCIe 1x	TPM+1xPS/2	7.1 ALC1220
X399E4	AMD Ryzen Threadripper	AMD X399	8 DDR4	AMD Radeon	2 Intel\i211AT	4 H	9 R+4 H	by Graphics Card	4 PCIe 16x+1 PCIe 4x+1 PCIe 1x	1xPS/2	7.1 ALC1200
H110L2A/i1000A13	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	6 H	2 R	1 HDMI+1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
C3558L4	Atom-C (BGA-1310)	Denverton C3000	4 DDR4 256G/2Ch	Aspeed AST2400	4x1Gbit Intel LAN	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
C3758L4/C3758T	C3758	Denverton	4 DDR4	Aspeed AST2400	4 Intel+1 IPMI	2 R	1 H	1 VGA	PCIe 4x	TPM	option

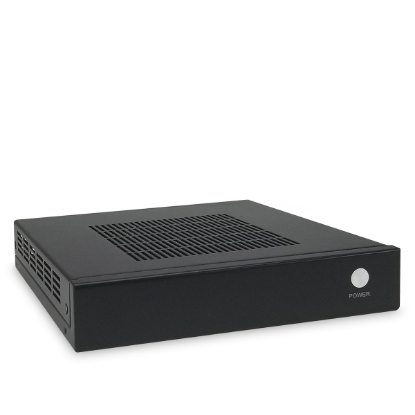

J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892

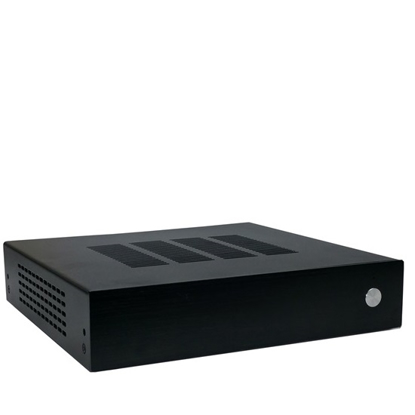

C3338L4	Atom-C (BGA-1310)	Denverton C3000	2 DDR4 128G/1Ch	Aspeed AST2400	4x1Gbit Intel LAN	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
N4200AEL2	N4200	Apollo Lake	2 DDR3SO	Intel HD 505	2 Intel\i211AT	5 R	4 R	1 HDMI+2 DP+1 LVDS	MiniPCIe+PCIe 1x	GPIO+TPM	5.1 ALC662
X-D1520TP2/X-D1540TP2	D-1540	Broadwell-u	4 DDR4	Aspeed AST2400	2 Intel+2 SFP+1 IPMI	2 H	2 R	1 VGA	PCIe 16x	TPM	TPM
i59F	i5-6200u	Skylake-u	2 DDR4SO	Intel HD 510	1 Intel\i219LM+1 Realtek\RTL8111F	2 R	2 R+2 S	2 DP+1 VGA	2 MiniPCIe	TPM	5.1 ALC662
i61F	i5-7200u	Kaby Lake-u	2 DDR4SO	Intel HD 620	1 Intel\i219LM+1 Realtek\RTL8111F	2 R	2 R+2 S	2 DP+1 VGA	2 MiniPCIe	TPM	5.1 ALC662
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
X299L2	Socket 2066 Core X-Series	X299	4 DDR4	By Graphics Card	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	5 R+2 H	5 R+2 H	1 HDMI+1 DP	PCIe 16x	TPM	7.1 ALC1220
X299x	Socket 2066 Core X-Series	X299	4 DDR4	By Graphics Card	1 Intel\i219V+1 Intel\i211AT	4 R+4 H	5 R+2 H	by Graphics Card	3 PCIe 16x	TPM+1xPS/2	7.1 ALC1220
H110L2V	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek\RTL8111H	2 R+4 H	4 R	2 DP+1 VGA+1 HDMI/H	MiniPCIe+PCIe 16x		5.1 ALC662
H370L2G	8/9th Socket 1151	H370	2 DDR4	Intel UHD 630	2 Intel+11ac WiFi/BT	2 H	4 R+2 H	1 HDMI2.0+1 HDMI+1 DP	PCIe 16x	TPM	7.1 ALC1220

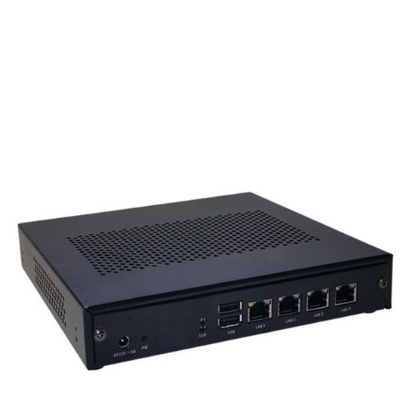

Slim-7000L4	i7-7660u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
X399x	AMD Ryzen Threadripper	AMD X399	4 DDR4	4 DDR4 DIMM	2 Intel\i211AT	4 H	9 R+4 H		3 PCIe 16x	TPM+1xPS/2	7.1 ALC1200
Nano-J1900L2V3	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek	2 F+2 H	2 F	1 HDMI+1 VGA	MiniPCIe-F		5.1 ALC662
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
X-D2123TPL4	D-2123IT	Skylake-D	4 DDR4	Aspeed AST2500	4 Intel\I350-AM4+1 IPMI	2 H	2 R	1 VGA	1 PCIe 16x+1 PCIe 8x	TPM	TPM
X-D2123T	D-2123IT	Skylake-D	4 DDR4	Aspeed AST2500	2 Intel\X557+1 IPMI	2 H	2 R	1 VGA	1 PCIe 8x+1 OCuLink	TPM	TPM
C242L2	Xeon E-2200 (1151pin)	C242	4 DDR4 128G/2Ch	Aspeed AST2500	2xGbit Intel i210	2 R+2 H	2 R+3 H	IPMI 2.0	1x16	TPM+GPIO	7.1 ALC892
Q370L2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219LM+1 Intel\i210AT	4 H	2 R+2 H	1 DP+1 HDMI+1 DVI	PCIe 16x	TPM	7.1 ALC888
C246L8	Xeon E-2200 (1151pin)	C246	4 DDR4 128G/2Ch	Aspeed AST2500	8xGbit Intel i210	2 R+2 H	2 R+2 H	IPMI 2.0	1x16	TPM	7.1 ALC892
H110L3	6/7th Socket 1151	H110 B150	2 DDR4SO	Intel HD 530 Intel HD 630	3 Realtek	2 R+2 H	4 R	1 DP+1 HDMI+1 eDP/H	PCIe 16x+PCIe 1x	1xPS/2/H+GPIO+LPT	5.1 ALC662

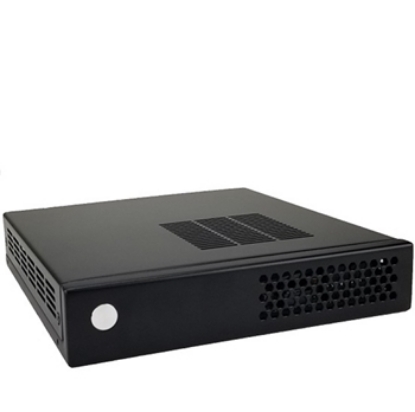

Slim-7000AEL2	i5-7200u	Kaby Lake-u	1 DDR4SO	Integrated	2 Realtek\RTL8111F	4 H	4 R	1 DP+1 HDMI+1 eDP/H\LVDS	PCIe 4x	GPIO+LPT	5.1 ALC662
Z390L2	8/9th Socket 1151	Z390	2 DDR4	Intel UHD 630	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	2 R+2 H	5 R+2 H	2 HDMI+1 DP	PCIe 16x	TPM+1xPS/2	7.1 ALC892
Nano-E310	N3350	Apollo Lake	1 DDR3SO	Intel HD 505 Intel HD 500	1 Realtek			1 HDMI+1 DP			5.1 ALC662
C236FL2	Xeon Socket-S 1151pin	C236	2 DDR4	Intel HD	2 RJ45	4 F+4 R	4 F+4 R	1 DP+1 HDMI+1 VGA	2 MiniPCIe+2 PCIe 8x+2 PCI	2 MXM3.0	5.1 ALC662
i63F/i63u	i7-8665u	Whiskey Lake-u	2 DDR4SO	Intel UHD 620	1 Intel i219LM/S+1 Realtek RTL8111F/R	2 R+4 S	2 R+4 S	1 HDMI+1 HDMI2.0+1 DP	MiniPCIe	TPM	5.1 ALC662
Slim-3865L4	3865u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
Z390L2-i9	i9-9900	Z390 Express	2 DDR4	UHD 630 Graphics	1 Intel® i219V+1 Intel® i211AT+WiFi	2 R+2 H	5 R+2 H	2 HDMI+1 DP	PCIe x16	PS/2, TPM	7.1 ALC892
C246L2	Xeon E-2200 (1151pin)	C246	4 DDR4 128G/2Ch	Intel UHD P630	2xGbit Intel i210	2 R	4 R+2 H	IPMI 2.0	1x16	6H	7.1 ALC892
Z490L2	11th/10th Socket 1200	Z490	2 DDR4	Intel UHD 630	1 Reltek\RTL8125BG+1 Intel\i219V	2 R+2 H	5 R+2 H	1 HDMI+1 DP	PCIe 16x	1xPS/2	7.1 ALC1220
H470L2G	11th/10th Socket 1200	H470	2 DDR4	Integrated	2 Intel+11ac WiFi/BT	1 H	4 R+1 H	2 HDMI+1 DP	PCIe 16x	TPM	7.1 ALC1220
H410A1	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	1 Reltek\RTL8111F	4R	2R+2F	1 DP + HDMI		LPT/S	5.1 ALC662
Q370L3E2	8/9th Socket 1151 vPro	Q370	2 DDR4SO	Intel UHD 630	1 Intel\i219V+2 Intel\i210AT	2 R+4 H	4 R+1 H	2 DP+1 DVI+1 LVDS/H	1 PCIe 16x+1 PCIe 4x	GPIO+LPT	7.1 ALC888

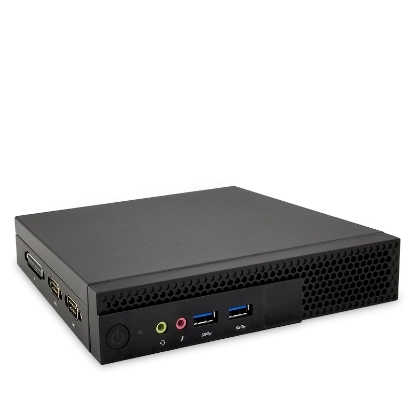

H310CAL2	6/7/8/9th Socket 1151	H310C	2 DDR4SO	Intel UHD	2 Realtek\RTL8111H	2 R	2 R+2 F	1 DP+1 HDMI		LPT/S	5.1 ALC662
Q370-15HDMI	8/9th Socket 1151 vPro	Q370	2 DDR4SO	2 Radeon 8860	2 Intel\I211AT	2 R	1 F+2 R	15 HDMI2.0			5.1 ALC662
H170L8-1U	6/7th Socket 1151	H170	2 DDR4SO	Intel HD 530 Intel HD 630	8 Intel/F\WGI211AT	option 2 R+4 H	2 F+2 H	1 HDMI/H+1 HDMI(Option)	PCIe 8x	1F-Console(RJ45)	1F-Console(RJ45)
Nano-U10L2	i7-10710U	Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	2F + 2S	2F + 2S	1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF		GPIO	5.1 ALC662
Nano-N6400D	N6211	Elkhart Lake	0 DDR4OB	10th Gen. UHD	1 Realtek\RTL8111H	2 R	2 F	1 DP+1 HDMI	MiniPCIe	1F	CM119B
B8500L6+2SFP	Socket 1150 Haswell	B85	2 DDR3SO	Intel HD 5000	6 intel/F\82574L+2 SFP/F	2 H	2 F	1 VGAH	1 MiniPCIe+PCIe 1x	1 F-Console(RJ45)	USB Audio
Z590L2	10/11th Socket 1200	Z590	2 DDR4	Intel UHD 750	1 Reltek\RTL8125BG+1 Intel\i219V+11ac WiFi/BT	1 R+2 H	4 R+2 H	1 HDMI+1 DP1.4	PCIe 16x		7.1 ALC897
Nano-U8L2	i5-8259u	Coffee Lake-u Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	2F + 2S	2F + 2S	1 HDMI+ 1 DP		GPIO	5.1 ALC662
Nano-U10FL2C/Nano-U10L2C	BGA-1528	Comet Lake-u	2 DDR4SO	Intel UHD 4K	2 x Intel® i211+i219	2F + 2S	2F + 2S	1 HDMI+ 1 DP+ 1 Type-C+ 3 USB+ 1 COM+ 2 LAN+ 1 SIM+ 1 SD+ S/PDIF			5.1 ALC662
H410AL2	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	2 Realtek\RT8111H	2R	2R+2F	1 HDMI+1DP/VGA		Option: LPT/S	5.1 ALC662
Nano-H510A/Q570A	11th/10th Socket 1200	H510/Q570	2 DDR4	Intel UHD 750	1 Intel\I219LM	3F	1F	1 HDMI2.0/F+1 DP/F	M.2-2280+M.2-2230	TPM	5.1 ALC662
Slim-H510B/Q570B	i9-11900T	Intel H510	2 DDR4SO	Intel UHD 750	2 Intel I219LM + 1 M.2 2230 + WiFi/BT	2 R + 3 F	2 R + 1 F	2 HDMI + 1 DC + 2 Lan			ALC662
Q570x	11th/10th Gen. Socket-S LGA1200	Q370 Express, vPro® Technology	4 DDR4	UHD Graphics	1 Intel i211+1 Intel® i219	2 R+2 F+2 H	4 R+2 F+1H	1 HDMI+2 DP+1 VGA	2 PCIe x16, 1 PCI 3.0 x1, PCI	TPM	7.1 Realtek Codec

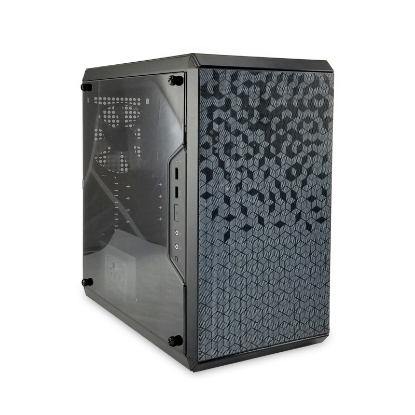

H570x	11th/10th Gen Socket-S LGA1200	H470 Express	4 DDR4	UHD Graphics	1 Intel i219V	2 R+2 H	3 R+4 H	1 HDMI+1 VGA+1 DP	2 PCIe x16, 2 PCIe x1	TPM
Nano-N6000DL2	N4500	Jasper Lake	Onboard 4GB/8GB DDR4	11th Gen. UHD	2 Gigabit LAN	2 R	2F	1 DP + 1 HDMI	MiniPCIe		CM119B
Z690L2	Socket-S 12th Gen	Z690 Express	2 DDR4	UHD 770/730/710	Dual Gigabit LAN + ax WiFi6E			HDMI 2.1 + DP 1.4	PCIe 5.0 x16		ALC897 (7.1)
SwapPC-U8A	i5-8259u	Whiskey Lake-u/Coffee Lake-u	2 DDR4SO	Intel Iris Plus/UHD	2 LAN + SIM	2 R	4 F + 2 R	3 HDMI		TPM	5.1 ALC662
SwapPC-U10S	i7-10710u	Comet Lake-u	2 DDR4SO	Intel UHD 620	2 LAN + SIM	1 F + 2 R	3 F + 2 R	2 HDMI + 1 DP		TPM	5.1 ALC662
SwapPC-U8S	i5-8259u	Whiskey Lake-u/Coffee Lake-u	2 DDR4SO	Intel Iris Plus/UHD	2 LAN + SIM	1 F + 2 R	3 F + 2 R	2 HDMI + 1 DP		TPM	5.1 ALC662
SwapPC-U10A	i7-10710u	Comet Lake-u	2 DDR4SO	Intel UHD 620	2 LAN + SIM	2 R	4 F + 2 R	3 HDMI		TPM	5.1 ALC662
SwapPC-J5005	Pentium J5005	Gemini Lake	2 DDR4SO	Intel UHD 605/600	2 LAN	1 F + 2 R	3 F + 2 R	2 HDMI + 1 DP		TPM	5.1 ALC662
SwapPC-H510A	10/11th Socket 1200	H510	2 DDR4SO	Intel UHD 750	2 LAN	3 F + 2 R	1 F + 2 R	3 HDMI + 1 DP		TPM	5.1 ALC662
H670L2	Socket-S 12th Gen	H670 Chipset	2 DDR4, up to 64GB	UHD 770/730/710	2.5GbE LAN + 1GbE LAN, WiFi 6E	4 R + 1 H	2 R + 1 H	HDMI 2.1 + DP 1.4	PCIe 5.0 x16		ALC897 (7.1)
i2313	i9-10885H	Comet Lake-u	2 DDR4SO	RTX 2060 + UHD Graphics	LAN + WiFi/BT	2 R	4 R	HDMI 2.0 + HDMI 1.4 + DP 1.2			ALC662 (5.1)
H610D	Socket-S 12th Gen	H610 Express	2 DDR4, up to 128GB	UHD 770/730/710	Gigabit LAN + ac WiFi/BT	2R + 1H		HDMI 2.1 + DP 1.4	PCIe 4.0 x16		ALC897 (7.1)
H610V	Socket-S 12th Gen	H610 Express	2 DDR4, up to 64GB	UHD 770/730	Gigabit LAN	4R + 2H	2R + 1H	HDMI 2.1 + 2 DP 1.2 + VGA	PCIe 4.0 x16	TPM	7.1 Audio
SwapPC-X39	ARM Cortex-A53	Rockchip 3399 (SOC)	2/4GB LPDDR4	Mali T764	2/3 LAN + WiFi/BT	3 F + 2 R	1 F + 2R	3HDMI+HDMI-In		SIM, TF	ALC662 (5.1)
WRX80-E7T	Ryzen Threadripper Pro	WRX80	8 DDR4	SLI Ready	Dual 10GbE + WiFi 6	2 H	8 R + 1 H				Realtek W4080

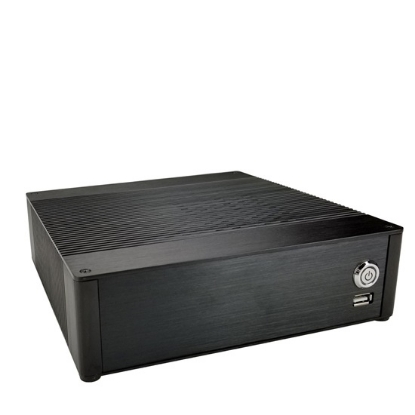

H410L2	10th Gen. Socket-S	H410	2 DDR4SO	Intel® Gen9.5 Intel® Graphics DX 12*, OGL4.5	2 LAN + Wifi6 AX201 802.11	4H	4R	HDMI + DP + VGA	PCIe 3.0 x16		5.1 ALC662
H610V3	Alder Lake	H610	2 DDR4SO	UHD 770/730	Realtek® RTL8125B	3 R	2 R	2 HDMI, DP			Realtek® ALC897
H610A	Alder Lake	H610	2 DDR4SO	Intel® 12th Gen Xe Graphics UHD 770/730/710	1 LAN + WiFi/BT		4 R	1 HDMI + 1 VGA	1		7.1 ALC897
H610L2	Alder Lake	H610	2 DDR4 U-DIMM	UHD 770/730	2 LAN	3 R	2 R	2 HDMI, DP			ALC897
Nano-U8MX250	i7-10510u	Comet Lake-u/Whiskey Lake-u Platform (SOC)	2 DDR4SO	Intel UHD, Nvidia MX250	1 Realtek® RTL8111	2 F	2 R		M.2-2280+M.2-2230		Intel® HD
i2312B	i7-9750H	Coffee Lake	2 DDR4SO	Intel UHD 630 Graphics + Nvidia GTX-1650 4G	1 Lan + WiFi/BT + 5G-LTE	2 R	4 R	1 HDMI+1 DP+1 Type-C
Nano-N6400L2C4	10th Gen Celeron/Pentium	Elkhart Platform (SOC)	DDR4 SODIMM	10th Gen UHD	2 2.5GbE LAN + 5G/4G	1 R	3 R	HDMI 2.0 + DP 1.2		4 COM	HD
Z790L2	13th Gen Socket-S series	Intel® Z790	2 DDR5 DIMM	UHD 770	2 LAN + Wifi6 AX201 802.11	2	4	1 HDMI+1 DP			7.1 ALC897
Nano-J4125L2C2	Celeron J4125	Gemini Lake	DDR4SO	Intel UHD 600	2 LAN	3F + 1R	1 F	HDMI + VGA + COM	Mini PCIe
J4125L4	Intel Celeron J4125	Intel Gemini Lake	1 DDR4SO	UHD 600		2 R		VGA
1750C-6DP	Socket 1150 Haswell	H81	2 DDR3	Radeon 7750/7870 Nvidia NV810	2 Realtek	4 R+1 H	2 R	6 or 8 DP	MiniPCIe+PCIe 16x		5.1 ALC662
Nano-U11C	i7-1185G7	Tiger Lake-u	2 DDR4SO	Iris Xe/UHD	LAN + WiFi/BT + 5G/4G-LTE	2 F	4 R	2HDMI + DP+Thunderbolt4			CJC6811A
J1900AL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek	1 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+GPIO+1xPS/2/H	5.1 ALC662
i12P	12th Gen Core-P Series	Alder Lake-P (SOC)	2 DDR4 SODIMM	Iris Plus	2 LAN+WiFi/BT+5G/4G			2 HDMI 2.0 + DP 1.4		2 COM	7.1 ALC897
i63C / i65C	10th/8th Gen. u-Series	Comet Lake-u/Whiskey Lake-u SOC	2 DDR4SO	10th/8th Gen. UHD Graphics	Intel® i219+Realtek® RTL8111H w/ SIM		4 R+2F	1 HDMI 2.0+1 HDMI 1.4+1 DP 1.2	MiniPCIe		5.1 ALC662
SwapPC-U11A	i7-1185G7	Tiger Lake-u	2 DDR4SO	Intel Iris Xe/UHD	2 LAN + SIM	2 R	4 F + 2 R	3 HDMI		TPM	5.1 ALC662
Q470L2G	11th/10th Socket 1200	Q470	2 DDR4SO	Intel UHD	1 Intel\i219V+1 Intel\i211	4 H	4 R+2 F	1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP)	1 MiniPCIe+1 PCIe 16x	GPIO+TPM	5.1 ALC662

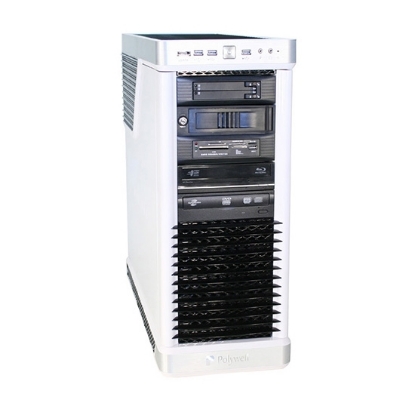

Poly X299E5	Socket 2066 Core X-Series	X299	8 DDR4	By Graphics Card	1 Intel\i219V+1 Killer\E2500	4 H	8 R+6 H	by Graphics Card	2 PCIe 16x+1 PCIe 8x+2 PCIe 4x	TPM+1xPS/2	7.1 ALC1220
J5040/J4125AE	J4005	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek	3 R+4 H	2 R	1 HDMI+1 DP+1 eDP+1 LVDS	PCIe 2x	GPIO	5.1 ALC662

i2314

Nano-U12L2C

H610AL2

NUC-U12V3c

Z690L2V4

H310AEL2

Nano-U12P

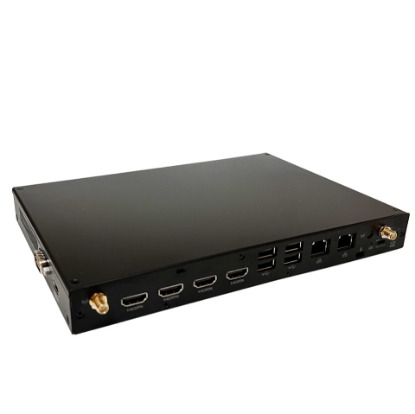

U12L2

U11L2

Nano-U11B

i2312

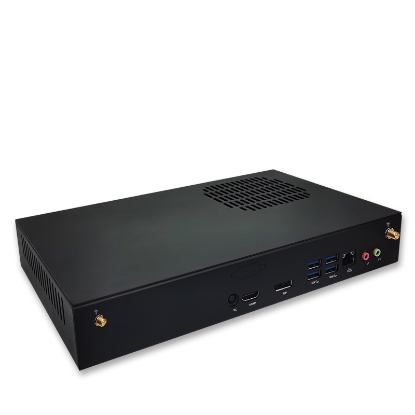

H510MXM

Z690G

Nano-U12C

Nano-U8FL2C6
