5000P16S, Xeon
 |
|
Processor |
• Dual Intel 64-bit Xeon, 667 / 1066 / 1333MHz FSB |
Chipset |
• Intel 5000P (Blackford) Chipset |
LAN |
• Dual Gigabit Ethernet |
Memory |
• Up to 64GB DDRII 667 & 533 Fully Buffered DIMM |
Drivers |
• 6x SATA2 |
Expansion Slots |
• 2 (x8) & 1 (x4) PCI-E
• 2x PCI-X
• 1x PCI-X |
Graphics |
• ATI ES1000 Graphics with 16MB video memory |
I/O |
• 8 USB,1 DVI,1 HDTV ;1 D-Sub, 5.1 CH Audio,1 IDE, 2 SATA,1 Gbit LAN, Com x2 |
|
 |

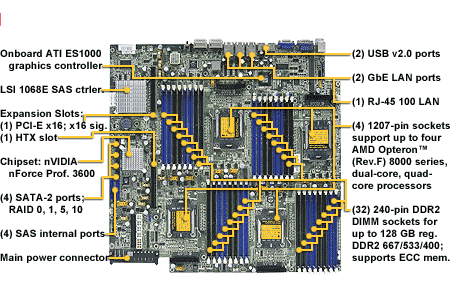

8405SS 16way Quad Opteron-F MB
 |
|
Processor |
• Up to 4 AMD Opteron™ 8000 Series |
Chipset |
• MCP55 chipset |
LAN |
• Dual Gigabit Ethernet |
Memory |
• Up to 128GB with 32 240-pin DDR2 DIMM sockets (8 per CPU) |
Drivers |
• 4 SATA2,RAID 0, 1, 5, 10
• 8 SAS(4 ports internal, 4 ports external)
• 1 IDE |
Expansion Slots |
• 1x PCI Express x16 slot (w/ x16 signal)
• 1x HTX slot
• 200-pin OPMA connector support IPMI TAB card |
Graphics |
• Integrated ATI ES1000 controller |
I/O |
•2 USB, 1 Serial, 1 VGA port,3 LAN |
|
|
5000P8SS,Xeon
 |
|
Processor |
• Dual Intel Quad-Core Xeon, 1066 / 1333MHz FSB |
Chipset |
• Intel 5000P (Blackford) Chipset |
LAN |
• Dual Gigabit Ethernet |
Memory |
• Up to 32GB DDRII 667 & 533 ECC FB-DIMM |
Drivers |
• 8 Hot-swap SAS/SATA
• 1x 5.25" full-height peripheral bay,1 Floppy Drive |
Expansion Slots |
• 7x low-profile full-length expansion slots |
Graphics |
• ATI ES1000 controller with 16 MB of video memory |
I/O |
• 1 VGA port, 1 serial port,1 parallel port, 5 USB,2 RJ-45 LAN ports |
|
 |

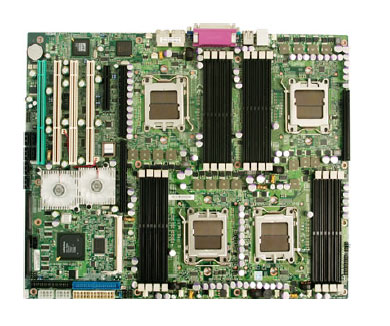

8405S 8-way Quad Opteron-F MB SCSIx2
 |
|
Processor |
• Up to 4 AMD Opteron™ 8000 Series |
Chipset |
• nVidia MCP55 Pro |
LAN |
• Dual Gigabit Ethernet |
Memory |
• Up to 64GB 16 DIMM DDR2 sockets |
Drivers |
• 4 x SCSI or 6 SATA
• 2x IDE |
Expansion Slots |
• 2 Hypertransport Connectors with 1 PCI-Express x16
•1 PCI-Express x8
•2 PCI-X-133/100MHz
•2 PCI-X-100MHz |
Graphics |
• ATI ES1000 Graphics |
I/O |
•4 USB, 2 Serial,1 parallel port, 1 VGA port |
|
|

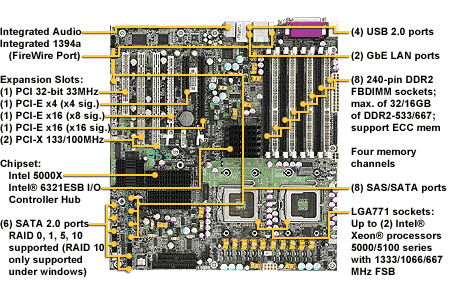

5000X8SS, 2 x QuadCore Xeon
 |
|
Processor |
• Dual Intel Quad-Core Xeon, 1066 / 1333MHz FSB |
Chipset |
• Intel 5000X (Greencreek) Chipset |
LAN |
• Dual Gigabit Ethernet |
Memory |
• Up to 32GB DDRII 667 & 533 ECC DIMMs |
Drivers |
• 6 SATA2 RAID 0, 1, 5, and 10
• 8 SAS ports; RAID 0, 1, and 1E supported |
Expansion Slots |
• 2 x PCI-E x16 slots,1 PCI-E x4 slot
• 2 x PCI-X slots
• 1 x PCI slot |
Audio |
• On-board Standard Audio Sound |
I/O |
• 1 serial port, 8 USB,2 RJ-45 LAN ports, IEEE1394, PS/2 |
|
|
2500A/S16, QuadCore Opteron
 |
|
Processor |
• Up to two AMD Opteron 2000 dual core/quad core series processor |
Chipset |
• NVIDIA MCP55 Pro / NEC uPD720400 |
LAN |
• Dual-port LAN / Ethernet Controller |
Memory |
• Up to 64GB DDR2 667 SDRAM |
Drivers |
• 6 SATA ports (3.0 Gb/s)
ports; RAID 0, 1, 0+1, 5, JBOD
• Optional SAS RAID Controller |
Expansion Slots |
• 2 x 8 PCI-e
• 2 x 64-bit 133/100MHz PCI-X
• 2 x 64-bit 100MHz PCI-X |
Graphics |
• ATI ES1000 Graphics Controller |
I/O |
• 1 VGA port, 1 serial port, 6 USB,2 RJ-45 LAN ports,1 Floppy, PS/2 |
|
