Think Big. Go Small. Eco-Smart Computing

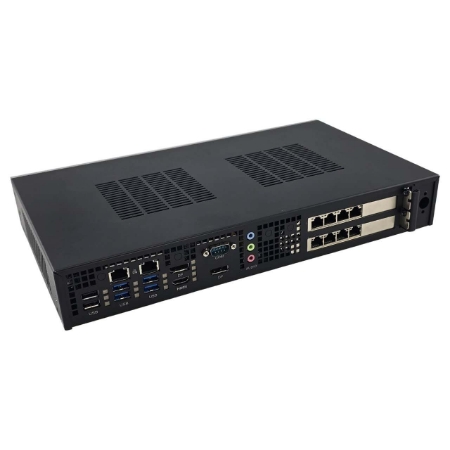

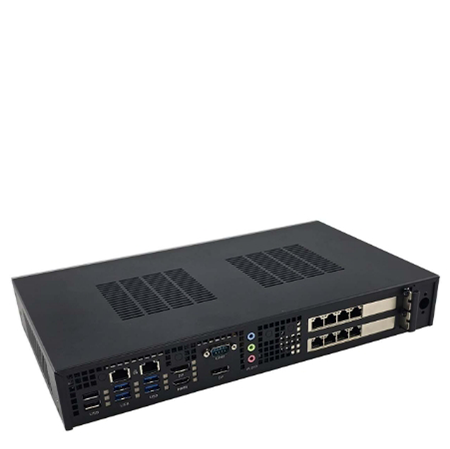

1750C/1750R with RISER

12.25"(W) x 8"(D) x 1.75"(H) Small Form Factor PC with full size slot
Featured Highlights


Dimensions:
12.25"(W) x 8"-9.9"(D) x 1.75"(H), variable width size to support different models
Xeon, Core i9/i7/i5/i3/Pentium/Celeron, AMD Family
Socket-S, u-series, J/N-series, AMD-series
Full-size RISER Slot
Up to 2 x HD/SSD Drives
DC12V up to 200W DC Power Adapter
Small Platform, High-Performance, GPU Computing
Color: Black (Custom colors available with special order)
Applications: AV Appliance, Entertainment, Videowall, Digital Signage, Surveillance, Security, Medical Equipment, VoIP, Transportation, IoT.




Starts at: N/A
Call for pricing Options(800-999-1278)
SKU: 1750C/R
Model Processor Chipset Memory Graphics Network M.2 MSata USB2.0 USB3.0 Ports Expansion OtherIO Audio
C246L2 Xeon E-2200 (1151pin) C246 4 DDR4 128G/2Ch Intel UHD P630 2xGbit Intel i210 1xM.2 1x2.5" SATA 2 R 4 R+2 H IPMI 2.0 1x16 6H 7.1 ALC892
C242L2 Xeon E-2200 (1151pin) C242 4 DDR4 128G/2Ch Aspeed AST2500 2xGbit Intel i210 1xM.2 1x2.5" SATA 2 R+2 H 2 R+3 H IPMI 2.0 1x16 TPM+GPIO 7.1 ALC892
C236FL2 Xeon Socket-S 1151pin C236 2 DDR4 Intel HD 2 RJ45 1-8/4 1 4 F+4 R 4 F+4 R 1 DP+1 HDMI+1 VGA 2 MiniPCIe+2 PCIe 8x+2 PCI 2 MXM3.0 5.1 ALC662
X-D2123T D-2123IT Skylake-D 4 DDR4 Aspeed AST2500 2 Intel\X557+1 IPMI 8 R 2 H 2 R 1 VGA 1 PCIe 8x+1 OCuLink TPM TPM
X-D1540L2 D-1540 Broadwell-u 4 DDR4 Aspeed AST2400 2 Intel 1 6 4 H 2 R 1 VGA PCIe 16x TPM option
X-D1540L4 D-1540 Broadwell-u 4 DDR4 Aspeed AST2400 4 Intel+1 IPMI 1 6 4 H 2 R 1 VGA PCIe 16x TPM option
X-D1520TP2/X-D1540TP2 D-1540 Broadwell-u 4 DDR4 Aspeed AST2400 2 Intel+2 SFP+1 IPMI 1 6 R 2 H 2 R 1 VGA PCIe 16x TPM TPM
C3338L4 Atom-C (BGA-1310) Denverton C3000 2 DDR4 128G/1Ch Aspeed AST2400 4x1Gbit Intel LAN 1xM.2 1x2.5" SATA 2 R 1 H IPMI 2.0 (AST2400) 1x4 3.0 TPM option
C3558L4 Atom-C (BGA-1310) Denverton C3000 4 DDR4 256G/2Ch Aspeed AST2400 4x1Gbit Intel LAN 1xM.2 1x2.5" SATA 2 R 1 H IPMI 2.0 (AST2400) 1x4 3.0 TPM option
C3758L4/C3758T C3758 Denverton 4 DDR4 Aspeed AST2400 4 Intel+1 IPMI 2 12 2 R 1 H 1 VGA PCIe 4x TPM option
Z590L2 10/11th Socket 1200 Z590 2 DDR4 Intel UHD 750 1 Reltek\RTL8125BG+1 Intel\i219V+11ac WiFi/BT 2-8+U2-8 4 R 1 R+2 H 4 R+2 H 1 HDMI+1 DP1.4 PCIe 16x 7.1 ALC897
B560E 10/11th Socket 1200 B560 2 DDR4 Intel UHD 750 1 Intel\i219V+11ac WiFi/BT 2-8 4 R 2 R+2 H 2 R+2 H 1 HDMI+1 DP1.4 PCIe 16x 1xPS/2 7.1 ALC897
Z490L2 11th/10th Socket 1200 Z490 2 DDR4 Intel UHD 630 1 Reltek\RTL8125BG+1 Intel\i219V 2-8 4 R 2 R+2 H 5 R+2 H 1 HDMI+1 DP PCIe 16x 1xPS/2 7.1 ALC1220
Q470L2G 11th/10th Socket 1200 Q470 2 DDR4SO Intel UHD 1 Intel\i219V+1 Intel\i211 2-8 2 4 H 4 R+2 F 1 DP+1 HDMI+1 HDMI2.0+1 eDP\LVDS/H+VGA header (co-lay with eDP) 1 MiniPCIe+1 PCIe 16x GPIO+TPM 5.1 ALC662
H470L2G 11th/10th Socket 1200 H470 2 DDR4 Integrated 2 Intel+11ac WiFi/BT 2-6/8 4 R 1 H 4 R+1 H 2 HDMI+1 DP PCIe 16x TPM 7.1 ALC1220
H410A1 10th Socket 1200 H410 2 DDR4SO Intel UHD 630 1 Reltek\RTL8111F 1 2 4R 2R+2F 1 DP + HDMI LPT/S 5.1 ALC662
H310G 8/9th Socket 1151 H310 2 DDR4 Intel UHD 630 1 Intel\i219V+11ac WiFi/BT 1 4 2 R+2 H 2 R+2 H 1 DP+1 HDMI+1 DVI PCIe 16x 1xPS/2 7.1 ALC887
B360L2 8/9th Socket 1151 B360 2 DDR4 Intel UHD 630 1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT 1 4 2 R+2 H 4 R+2 H 2 HDMI PCIe 16x 1xPS/2 7.1 ALC887
B365AL2 6/7/8/9th Socket 1151 B365 2 DDR4SO Integrated 2 Realtek\RTL8111H 1-4/6/8 2 4 H 4 R+2 H 1 DP+1 HDMI+1 LVDS/H TPM 2.1 ALC269
H370L2 8/9th Socket 1151 H370 2 DDR4 Intel UHD 630 1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT 1 6 R 2 R+2 H 6 R+2 H 2 HDMI+1 DP PCIe 16x 1xPS/2+TPM 7.1 ALC892
H370L2G 8/9th Socket 1151 H370 2 DDR4 Intel UHD 630 2 Intel+11ac WiFi/BT 2 4 R 2 H 4 R+2 H 1 HDMI2.0+1 HDMI+1 DP PCIe 16x TPM 7.1 ALC1220
Q370L2 8/9th Socket 1151 vPro Q370 2 DDR4SO Intel UHD 630 1 Intel\i219LM+1 Intel\i210AT 1-4/8+1-2 5 R 4 H 2 R+2 H 1 DP+1 HDMI+1 DVI PCIe 16x TPM 7.1 ALC888
Q370L3E2 8/9th Socket 1151 vPro Q370 2 DDR4SO Intel UHD 630 1 Intel\i219V+2 Intel\i210AT 1-4/8 4 2 R+4 H 4 R+1 H 2 DP+1 DVI+1 LVDS/H 1 PCIe 16x+1 PCIe 4x GPIO+LPT 7.1 ALC888
Z390L2 8/9th Socket 1151 Z390 2 DDR4 Intel UHD 630 1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT 1 6 R 2 R+2 H 5 R+2 H 2 HDMI+1 DP PCIe 16x TPM+1xPS/2 7.1 ALC892
H310L4 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 4 Intel\i211 2-8 1 4 H 2 R+2 F 1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
H310AEL2 8/9th Socket 1151 H310 Q370 2 DDR4SO Intel UHD 630 2 Intel\i211 2-8 1 4 R+2 H 2 R+2 F 1HDMI+1DP+1VGA/H+1LVDS/H PCIe 4x TPM 5.1 ALC662
H310A1 8/9th Socket 1151 H310 1 DDR4SO Intel UHD 630 1 Intel\i219V 1 2 4 H 4 R+2 H 1 HDMI+1 VGA/H+1 LVDS/H 5.1 ALC662
B250G Socket 1151 Kaby Lake B250 2 DDR4 Intel HD 630 1 Intel 1 4 2 R+2 H/F 4 R+2 H 1 HDMI+1 DP PCIe 16x 7.1 ALC892
Q170L2 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 1 5 R 4 H 4 R+2 H 1 DP+1 HDMI+1 DVI MiniPCIe+PCIe 16x GPIO+TPM 7.1 ALC888
B150L2-Customize 6/7th Socket 1151 B150 2 DDR4 Intel HD 530 Intel HD 630 2 Intel 1 6 R 2 R+2 H 4 R+2 H 2 HDMI MiniPCIe+PCIe 16x 7.1 ALC887
B150V3 6/7th Socket 1151 B150 2 DDR4 Intel HD 530 Intel HD 630 1 Realtek\RTL8111H 2-8 1 2 R+4 H 4 R 2 DP+1 HDMI MiniPCIe+PCIe 16x 5.1 ALC662
H110L2 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 1 Realtek\RTL8111H 2-8 1 2 R+4 H 4 R 2 DP+1 HDMI MiniPCIe+PCIe 16x 5.1 ALC662
H110L3 6/7th Socket 1151 H110 B150 2 DDR4SO Intel HD 530 Intel HD 630 3 Realtek 1-4 2 2 R+2 H 4 R 1 DP+1 HDMI+1 eDP/H PCIe 16x+PCIe 1x 1xPS/2/H+GPIO+LPT 5.1 ALC662
H110L2V 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek\RTL8111H 2-8 1 2 R+4 H 4 R 2 DP+1 VGA+1 HDMI/H MiniPCIe+PCIe 16x 5.1 ALC662
H110L2C12 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek 2-8 1 2 R+2 H 4 R 1 DP+1 HDMI+1 VGA 2 MiniPCIe+PCIe 16x 1xPS/2 5.1 ALC662
H110AEL2/i1000A12 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Intel\i219V+1 Intel\i211AT 2-8 1 4 H 4 R 1 DP+1 HDMI+1 VGAH MiniPCIe+PCIe 4x GPIO 7.1 ALC887
H110L2A/i1000A13 6/7th Socket 1151 H110 2 DDR4 Intel HD 530 Intel HD 630 2 Realtek 2-8 1 6 H 2 R 1 HDMI+1 VGA MiniPCIe+PCIe 4x GPIO 5.1 ALC662
Q170A2-3HDMI 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 2-8 1 4 H 4 R 2 HDMI+1 HDMI2.0+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
Q170A 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 2-8 1 4 H 4 R 1 DP+1 HDMI+1 VGAH+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
i1000Q10 6/7th Socket 1151 vPro Q170 2 DDR4SO Intel HD 530 Intel HD 630 2 Intel 2-8 1 4 H 4 R 1 DP+1 HDMI+1 VGAH+1 LVDS 2 MiniPCIe+PCIe 4x GPIO+TPM 7.1 ALC887
Slim-H110A2 6/7th Socket 1151 H110 1 DDR4SO Intel HD 530 Intel HD 630 1 Realtek\RTL8111F 2-8 1 4 H 4 R 1 HDMI+1 VGA+1 LVDS 1 MiniPCIe+1 MiniPCIe-F 5.1 ALC662
H110A1/i1000A10 6/7th Socket 1151 H110 2 DDR4SO Intel HD 530 Intel HD 630 1 Realtek 2-8 1 4 H 4 R 1 HDMI+1 VGA+1 LVDS MiniPCIe 7.1 ALC887
H8100L2/H8100L3 Socket 1150 Haswell H81 2 DDR3 Intel HD 5000 2 Realtek 2-8 1 4 R+1 H 2 R 1 HDMI+1 DVI+1 VGA 1 MiniPCIe+PCIe 16x 1xPS/2 5.1 ALC662
B8500L4/H8100L4 Socket 1150 Haswell B85 4 DDR3 Intel HD 5000 4 Intel\i350 2-8 1 4 H 2 R 1 HDMI+1 DP+1 VGA 1 MiniPCIe+PCIe 8x TPM 5.1 ALC662
H8700L8-1U Socket 1150 Haswell H87 2 DDR3SO Intel HD 5000 8 Intel/F 2-8 1 2 F+4 H 2 H 1 VGA MiniPCIe+PCIe 8x
J5005E/J4105E J5005 Gemini Lake 2 DDR4SO Intel UHD 605 1 Realtek\RTL8111H 4 2 R+3 H 2 R+2 H 1 HDMI+1 DVI+1 VGA PCIe 1x 2xPS/2 7.1 ALC892
J1900S6 J1900 Bay Trail 2 DDR3SO 7th Gen. HD 2 Intel 1 1 R 1 R 1 HDMI+1 DP+1 VGA MiniPCIe+PCIe 8x TPM 7.1 ALC888
525iD D525 NM10 1 DDR3SO Intel GMA 3150 1 Realtek 1 4 R+2 H 1 VGA PCI 2xPS/2+Printer 5.1 ALC662
2550iD D2550 NM10 2 DDR3SO Intel HD 3600 1 Broadcom 2 4 R+2 H 1 HDMI+1 VGA PCIe 1x 2xPS/2 5.1 ALC662
2550L2D D2550 NM10 2 DDR3SO Intel HD 3650 2 Broadcom 2 4 R+2 H 2 R 1 HDMI+1 VGA PCIe 1x 2xPS/2 5.1 ALC662
2550L2D-MxPC D2550 NM10 2 DDR3SO Intel HD 3650 2 Broadcom 2 4 R+2 H 2 R 1 HDMI+1 VGA PCIe 1x 2xPS/2 5.1 ALC662
2600L2 N2600 NM10 1 DDR3SO Intel HD 3600 2 Realtek option 4 R+2 H 1 VGA 2 MiniPCIe+PCI 2xPS/2 5.1 ALC662
X570E Socket AM4 Ryzen 3rd AMD X570 2 DDR4 Radeon Vega 1 Intel\i211AT 2-6/8 4 R 2 H 4 R+2 H 1 DP+2 HDMI2.0 PCIe 16x 7.1 ALC1220
B550G Socket AM4 Ryzen 3rd w/o G-Series AMD B550 2 DDR4 Radeon Vega 1 Realtek 2-8 4 R 1 H 5 R+1 H 2 HDMI2.1+1 DP1.4 1 PCIe 16x TPM 7.1 ALC1120
B550E Socket AM4 Ryzen 3rd w/o G-Series AMD B550 2 DDR4 Radeon Vega 1 Realtek\RTL8111H 2-8 4 R 2 R+1 H 3 R+1 H 1 HDMI2.1+1 DP1.4 1 PCIe 16x 1xPS/2 7.1 ALC887
B450G Socket AM4 Ryzen 2nd AMD B450 2 DDR4 Integrated 1 Realtek 1 4 R 2 R+1 H 2 R+1 H 1 HDMI+1 DP PCIe 16x 1xPS/2 7.1 ALC1220
E3-1585L4 Xeon® E3-1585V5 C236 Express Chipset 4 DDR4 Iris® 6200 Pro Graphics 3 x i210+1 x i219LM LAN TPM, GPIO 1 H 2 R+1 H 1 HDMI+1 VGA PCIe x16 7.1 ALC887
