Processor
• Dual Socket SP3 (LGA4094) • Support AMD® EPYC™ 7003 and 7002 Series Processors
|
Memory
• 16+16 (32) DIMM slots (2DPC) • Supports DDR4 288-pin RDIMM, LRDIMM • RDIMM/LRDIMM-3DS, 8 Channel per CPU, 1.2V Memory voltage, up to 8TB Capacity • RDIMM/ LRDIMM: max. 3200MHz
Storage
• 2 x M.2-22110/2280 PCIe 4.0 x4 • Optional Marvell 9235 4 x SATA-6Gb/s • Optional 2 x SFF-8654 for (4) NVMe
|
Network
• 2 x 10Gbit RJ45 Ethernet Intel X550-AT2
Expansion Slot
• Supports Up to 5 RISER Slots HH HL, 4 HH HL x16, 1 HH HL x8 [CPU1] [CPU2] (rear), 1 x OCP NIC 3.0 (x16) [CPU1]
|
Graphics
• ASPEED AST2500: 1 DB15, 1 (15-pin header)
I/O
• 2 x USB 3.1 (Rear), 2 USB 3.1 (Front) • 2 x Serial Port Headers • 2 x RJ45 10GbE LAN Ports • 1 x RJ45 IPMI 2.0 Port • 1 x DB15 VGA Port
|

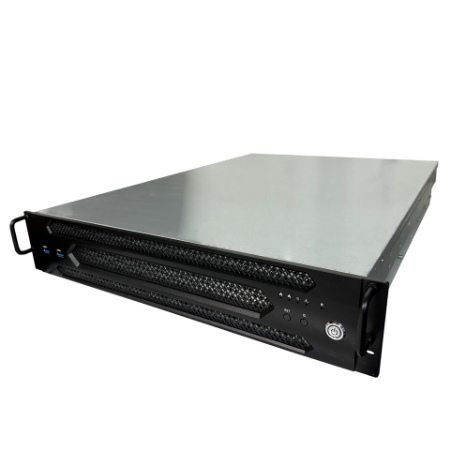

Chassis
• 2U Rackmount with Front HDD LED • 6 x 2U Cooling Fans • Dimension: 3.43" H x 17.26" W x 25" D
Power Supply
• 2 x CRPS Hot Swap P/S 1+1 2000W Titanium Redundant
|
OS Support
• Windows Server, Linux, FreeBSD, VMware
Applications
• Virtual Server, Compute Server, Database Server, Cloud Computing
|
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
