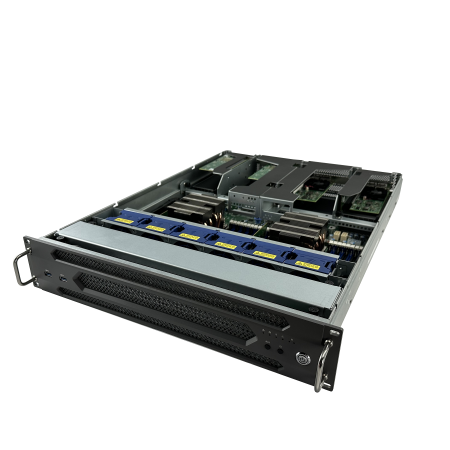

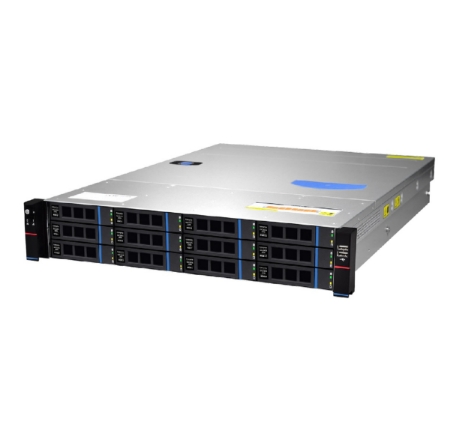

2U-E9500C - 5th Gen 2U AMD® EPYC™ Compute Server

AMD® EPYC™ Compute Server, 2P 5 PCIe + OCP, 2x10GbE 24 DIMM, Titanium CRPS

Key Features:

• Dual Socket AMD® EPYC™ 9005 series Processors
• 24× DDR5 ECC up to 6400MHz 12 Channel I/O Memory
• 2 x M.2-22110/2280 PCIe 4.0 x4 NVMe SSD
• Up to 5 x PCIe 5.0 x16 Slots
• 2 x 10Gbit LAN with OCP NIC 3.0 Slot
• Remote management (IPMI 2.0)
• For Virtual Server, Compute Server, Database Server, Cloud

SKU: 2U-E9500C/2U-E9500E
Product specifications
Processor

• one or two AMD® EPYC™ 9005 series Processors
• Up to 500W per processor
• Up to 192 Cores 384 Threads per processor

Chipset

• AMD® Turin SoC

Memory

•   24 × DDR5 slots ECC Reg, up to 6400MHz, 12 Channel per processor

Storage

• 2 x M.2-2280 PCIe x4 for NVMe  for OS Boot Drives
• Optional Front 2.5" / 3.5" SSD/HD (SATA/SAS/NVMe)

Network

• 2 x 10Gbit RJ45 Intel® Ethernet via OCP 3.0 Slot
• Optional 2 or 4 Port LAN Module up to 200GbE

Expansion Slot

• Up to 7 PCIe Slots
• RISER 1:
»1 x PCIe 5.0 x16 slot (PCIe 5.0 x16 signal, from CPU0, supporting FHFL GPU card)
»2 x PCIe 5.0 x16 slots (PCIe 5.0 x8 signal, from CPU0, supporting FH PCIe card)

• RISER2:
 »1 x PCIe 5.0 x16 slot (PCIe 5.0 x16 signal, from CPU1, supporting FHFL GPU card)
 »2 x PCIe 5.0 x16 slots (PCIe 5.0 x8 signal, from CPU1, supporting FH PCIe card)

• RISER3:
 »1 x PCIe 5.0 x16 slot (PCIe 5.0 x16 signal, from CPU1, supporting FHFL GPU card)

• All RISERs can be customized in low-profile form factor.

• 1 x OCP 3.0 Mezzanine card slot (PCIe 5.0 x16 signal, from CPU0)
• Supports NCSI

Graphics

• ASPEED AST2600: 1 DB15, 1 (15-pin header)

I/O

• 2 x USB 3.2 (Rear), 2 USB 3.2 (Front)
• 1 x Serial Port (RJ45)
• 2 x RJ45 10GbE LAN Ports
• 1 x RJ45 IPMI 2.0 Port
• 1 x DB15 VGA Port

Chassis

• 2U Rackmount with Front HDD LED
• 6 x  2U Cooling Fans
• Dimension: 3.43" H x 17.26" W x 25" D

Power Supply

• 2 x CRPS Hot Swap P/S 1+1 2000W Titanium Redundant



OS Support
• Windows Server, Linux, FreeBSD, VMware
Applications
• Virtual Server, Compute Server, Database Server, Cloud Computing
Environment

• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
Model Processor Chipset Memory Graphics Network USB2.0 USB3.0 Ports Expansion OtherIO Audio
SKU # Module 1 Module 2 Modue 3 Modue 4 Modue 5 Modue 6
N8T8 2 x 400G NDR 2 x 400G NDR 2 x 400G NDR 2 x 400G NDR 4 x 10GbE 4 x 10GbE
H8T8 2 x 200G HDR 2 x 200G HDR 2 x 200G HDR 2 x 200G HDR 4 x 10GbE 4 x 10GbE
E8T8 2 x 100G EDR 2 x 100G EDR 2 x 100G EDR 2 x 100G EDR 4 x 10GbE 4 x 10GbE
N2H2P8T8 2 x 400G NDR 2 x 200G HDR 4 x 10G SFP+ 4 x 10G SFP+ 4 x 10GbE 4 x 10GbE
N2P12T8 2 x 400G NDR 4 x 10G SFP+ 4 x 10G SFP+ 4 x 10G SFP+ 4 x 10GbE 4 x 10GbE
H2P4T16 2 x 200G HDR 4 x 10G SFP+ 4 x 10GbE 4 x 10GbE 4 x 10GbE 4 x 10GbE
E2P4T16 2 x 100G EDR 4 x 10G SFP+ 4 x 10GbE 4 x 10GbE 4 x 10GbE 4 x 10GbE
E2P4T12L8 2 x 100G EDR 4 x 10G SFP+ 4 x 10GbE 4 x 10GbE 4 x 10GbE 8 x 1GbE
E2P4T8L16 2 x 100G EDR 4 x 10G SFP+ 4 x 10GbE 4 x 10GbE 8 x 1GbE 8 x 1GbE
E2P4T8L8B4 2 x 100G EDR 4 x 10G SFP+ 4 x 10GbE 4 x 10GbE 8 x 1GbE 4 x 2.5GbE
P4T12L8B4 4 x 10G SFP+ 4 x 10GbE 4 x 10GbE 4 x 10GbE 8 x 1GbE 4 x 2.5GbE
P4T12L8O4 4 x 10G SFP+ 4 x 10GbE 4 x 10GbE 4 x 10GbE 8 x 1GbE 4 x PoE-1GbE
