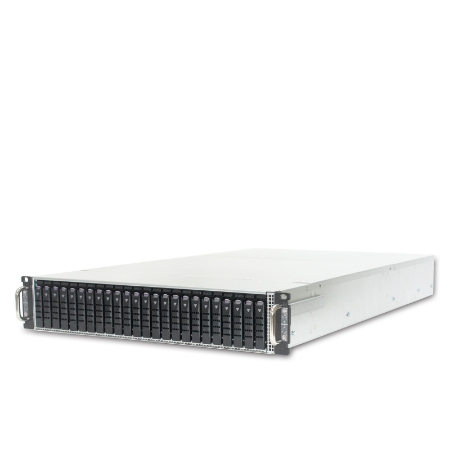

High Performance XEON Server

2U24N32-4189A

2U 24x NVMe U.2/SATA/SAS, 32x 8-Channel DDR4, 2 PCIe x16 + 6 PCIe x8 Slots, 3rd Gen. Scalable Xeon®

Key Features:

• 2U 24 x 2.5” NVMe U.2 4.0 / SATA/SAS Hot Swap Drives
• Dual Socket P+ for 3rd Gen. Intel® Scalable Xeon® Processors
• 32 DDR4 up to 12TB 8-Channel Intel® Optane™ Memory
• 2 PCIe 4.0 x16, 6 x8 Slots
• 4 x 10Gbit Ethernet (2 x RJ45, 2 x SFP+), IPMI 2.0
• 1600W Titanium Redundant Power Supply
• For Virtual Server, Compute Server, Database Server, Cloud, etc.

Download DataSheet

$0.00
SKU: 2U24N32-4189A
Product specifications
Processor
• Dual 3rd Generation Intel® Scalable Xeon®
• Socket P+ (LGA 4189), supports 270W, Up to 40 Core 80 Threads
Chipset
• Intel® C621A
Graphics

• Aspeed AST2600 BMC VGA (DB15)

Memory
• 32 DDR4 DIMM Sockets
• 8-channel memory bus per processor
• Supports up to 8TB ECC DDR4 3200MHz RDIMM
• Supports up to 12TB Intel® Optane™ persistent memory 200 series
Storage
• 24 x 2.5” NVMe U.2 PCIe 4.0 / SATA / SAS Hot Swap Bays
• Left to Right: 0-1: SATA/SAS, 2-23: NVMe/SATA/SAS*
• Intel® 22 x NVMe (16GT/s), C621A 14 x SATA (6Gb/s) RAID-0/1/5/10
• Optional* Broadcom 3108/3808/3816/3916 for SAS (12Gb/s)
• 2 x SATA-DOM (Disk on Module) Connectors
Network
• 2 x 10GbE BaseT RJ45 with Intel® X710-AT2 By LAN Module
• Optional 2 x 10GbE SFP+ with Intel® X710-TM4 By LAN Module
• RJ45 Gigabit LAN for IPMI 2.0 by AST2600
• Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot
• 2 x PCIe 4.0 x16 (1 Full Height 10.5” L, 1 Low Profile)
• 6 x PCIe 4.0 x8 (5 Full Height 10.5” L, 1 Internal Low Profile)
• 1 x LAN Module Slot (For 2x10GbE or 2x10GbE+2x10GbE SFP+)
Back I/O
• 1 x RJ45 IPMI
• 2 x RJ45 Ethernet, Optional 2 x SFP+ Ethernet
• 1 x DB15 VGA, 2 x USB 3.0, 1 COM
Internal I/O
• 1 x RS-232 COM port header
• 1 x USB 3.0 Header for Front USB
• 1 x TPM Header
BIOS
• AMI®
• Watchdog Supported
Chassis
• 2U Rackmount
• 24 x 2.5” NVMe U.2 4.0/SATA/SAS Hot Swap Drive Bays
• 4 x 8cm Cooling Fans
• Dimension: 3.5" (89mm) H x 17.2" (437mm) W x 27.8" (705mm) D
• System Weight: 40 lbs. (18kg) Net, 70 lbs. (32kg) Gross
Power Supply
• 1600W (1+1) Redundant Titanium Level with PMBus
• 1000W: 100-127Vac / 1600W: 200-240Vac Input
OS Support
• Windows Server, Linux, FreeBSD, VMware
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing.
Environment

• Operating Temperature: 0 to +35 C
• Non-operating Temperature: -40 to +60 C
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance

*
*
*
*
*
*
*
*
