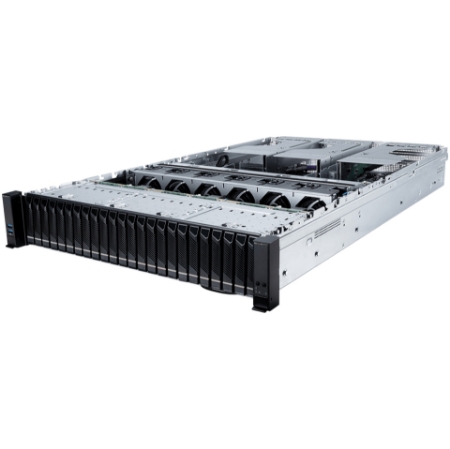

2U24SD32-C741

2U General Server

Key Features:

• Socket 4th & 5th Gen Xeon® CPU
• Up to 24 x 3.5” SAS （12x front + 12x internal）
• Up to 20× standard PCIe standard slots （10x internal + 10x rear）
• 32× DDR5 slots (RDIMM)，up to 5600MHz
• Onboard 1× 1Gbps IPMI Support 2×OCP3.0，support NCSI
• BMC KVM Remote Management
• 2× 800/1200/2000W CRPS Power Modules, support 1+1 redundancy
• GPU Cluster for AI, Deep Learning, HPC.

SKU: 2U24SD32-C741

Specifications
Request for Info

Product specifications

Processor • 1 or 2×Intel® 4th & 5th Gen Xeon® Sapphire Rapids/ Emerald Rapids，up to 64 cores each, max 350W Chipset • Intel C741
Memory • 32× DDR5 slots (RDIMM)，16channel, up to 5600MHz, support RDIMM/3DS RDIMM • Up to 8TB Storage • Integrated 6Gb/s SATA controller； • 12Gb/s SAS HBA or 12Gb/s SAS RAID option • Up to 24 x 3.5” SAS （12x front + 12x internal） • Front: Up to 12×3.5" or 25×2.5" HDD • Internal : 12×M.2(PCIe 4.0 x4，2280&22110)
Expansion Slot • Up to 22x PCIe • Up to 20× standard PCIe standard slots （10x internal + 10x rear） • Up to 4× DW GPU cards (450W) • Support 2x OCP3.0 slot onboard Network • Onboard 1× 1Gbps IPMI • Support 2×OCP3.0，support NCSI • Network adapter based on standard PCIe slot option
I/O • 1×IPMI，1×rear VGA，4×USB(2×front, 2×rear) • Ear bezel option：2×USB2.0 or 2×USB3.0，1× VGA， 1×IPMI RJ45 or Type-C UAGT Front I/O • 1×Optional VGA • 2×USB3.0 • 1×LCD Mini USB
Chassis • 2U standard rack server • W 436mm × H 87mm × D 763mm（783mm with ear bezels） OS Support • Windows Server, Linux
Power Supply • 2×Power Modules, support 1+1 redundancy（Active-Active & Active-standby module)，support hot-swap • 800W/1300W/1600W/2000W Platinum or Titanium power module option Applications • GPU for AI, Deep Learning, HPC.
Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
