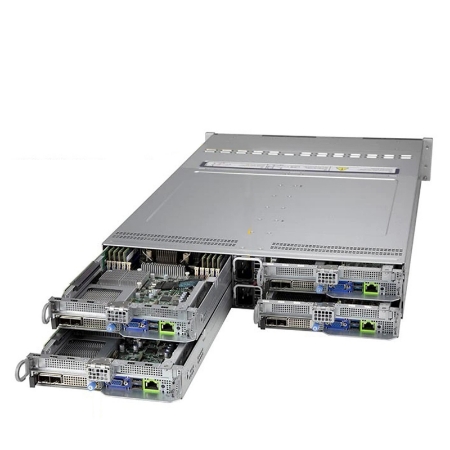

High Performance XEON Server

2U4X-24N-4189A

2U 4 Node + 20 DDR4, 24x NVMe U.2/SATA, 2 PCIe x16 Low Profile Slots, 3rd Gen. Scalable Xeon®

Key Features:

• 2U 4 Node Compute Servers
• Dual Socket P+ for 3rd Gen. Intel® Scalable Xeon® Processors
• 6 x 2.5” NVMe U.2 4.0 / SATA Hot Swap Drives per Node
• 20 DDR4 up to 6TB 8-Channel Intel® Optane™ Memory
• 2 x PCIe 4.0 x16 Low Profile Slots, 2 x M.2
• OCP 3.0 PCIe 4.0 x16 Slot for Ethernet Module, IPMI 2.0
• 2600W Titanium Redundant Power Supply
• For Virtual Server, Compute Server, Database Server, Cloud, etc.

Download DataSheet

$0.00
SKU: 2U4X-24N-4189A, SYS-220BT-HNTR
Product specifications
Processor
• Dual 3rd Generation Intel® Scalable Xeon® per Node
• Socket P+ (LGA 4189), supports 205W, Up to 36 Core 72 Threads
Chipset
• Intel® C621A
Graphics

• Aspeed AST2600 BMC VGA (DB15)

Memory
• 20 DDR4 DIMM Sockets per Node
• 8-channel memory bus per processor
• Supports up to 4TB ECC DDR4 3200MHz RDIMM
• Supports up to 6TB Intel® Optane™ persistent memory 200 series
Storage
• 6 x 2.5” NVMe U.2 PCIe 4.0 / SATA Hot Swap Bays per Note
• Supports NVMe (16GT/s) or SATA (6Gb/s) RAID-0/1/5/10
• 2 x M.2-20110/2080/2060 Sockets for NVMe 4.0 x16/SATA per Node
Network
• OCP 3.0 (PCIe 4.0 x16) for Network Module per Node
• Network Modules are available with 2-4 ports of 1G/2.5G/10G/25G/100G RJ45/SFP+/SFP28/QSFP28
• RJ45 Gigabit LAN for IPMI 2.0 by AST2600
• Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot
• 2 x PCIe 4.0 x16 (Low Profile) per Node
• 1 x OCP 3.0 (PCIe 4.0 x16) Slot for Ethernet Network Module per Node
Back I/O
• 1 x RJ45 IPMI
• Optional 2-4 RJ45/SFP+/SFP28/QSFP28 Ports
• 1 x DB15 VGA, 2 x USB 3.0
Internal I/O
• 1 x RS-232 COM port header
• 1 x TPM Header
BIOS
• AMI®
• Watchdog Supported
Chassis
• 2U 4 Node Rackmount
• 24 x 2.5" NVMe U.2 4.0/SATA Hot Swap Drive Bays (6 per Node)
• 4 x 8cm Cooling Fans
• Dimensions: 3.47"(88mm) H x 17.68"(449mm) W x 28.75"(730mm) D
• System Weight: 54.5 lbs. (24.7 kg) Net, 85 lbs. (38.6kg) Gross
Power Supply
• 2600W (1+1) Redundant Titanium Level
• 208-250Vac / 220-240Vac Input
OS Support
• Windows Server, Linux, FreeBSD, VMware
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing.
Environment

• Operating Temperature: 0 to +35 C
• Non-operating Temperature: -40 to +60 C
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance

*
*
*
*
*
*
*
