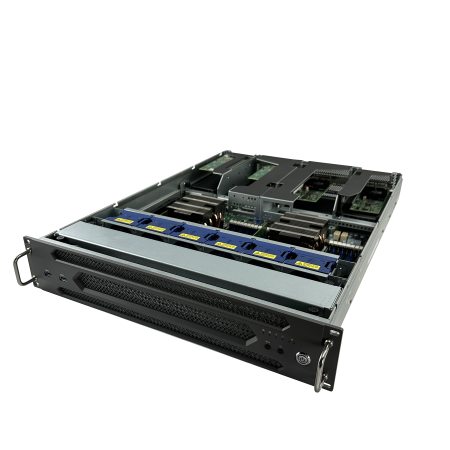

2U5E-X6 - 2U Short 6th Gen. Birch Stream Server

2U Short 6th Gen. Birch Stream, 5 x16 PCIe 5.0 + 32 DDR5, OCP 3.0 + 2x10GbE, 2x2000W CRPS

Key Features:

• Dual 6th Gen Xeon® Birch Stream-SP，up to 144 cores each，max 350W
• 32 x DDR5 DIMM 4800MHz ECC Memory
• 2 x M.2 NVMe 4.0
• 2 x 10GbE RJ45 Ethernet, IPMI 2.0
• Up to 3× FHFLDW or 6× FHFLSW or 8× HHHLSW GPU
• 2 x 2000W CRPS Platinum
• For AI Server, Virtual Server, Compute Server, Database Server, Cloud

SKU: 2U5E-X6

Specifications
Request for Info

Product specifications

Processor • Dual Intel® 6th Gen Xeon® Birch Stream-SP，up to 144 cores each，max 350W • Support 6700P, 6500P, 6700E series CPU Memory • 32 × DDR5 slots ((RDIMM/3DS RDIMM)，up to 6400MT/s, 16 channels • 6700P, 6500P series CPU support MRDIMMs, up to 8000MT/s
Storage • 12Gb/s SAS HBA or RAID card option • 1 × M.2 SATA switch card with 2× SATA3.0 option, support RAID 1 • Front: Up to 12 × 3.5” or 25 × 2.5”HDDs • Up to 24 × U.2 NVMe SSD or 32 × E3.S NVMe SSD • Rear : Up to 4 × 2.5" HDD • Internal : 2 × M.2 (PCIe 5.0 x4，2280&22110) Network • 2 x 10GbE BaseT RJ45 LAN Ports from Intel® X710-AT2 • 1 x GbE dedicated for IPMI
Expansion Slot • Front: 2 × PCIe 5.0 standard slots option；1 × OCP3.0 option, PCIe5.0 ×8 or ×16 , with NCSI • Rear: Up to 10 × PCIe 5.0 standard slots option； • 1 × OCP3.0 option, PCIe5.0 ×8 or ×16 option, with NCSI • Up to 3 × FHFLDW or 6 × FHFLSW or 8 × HHHLSW GPU I/O • 1 × Optional VGA(F) • 2 × USB3.0 • 1 × VGA • 2 × USB3.0 • 1 × IPMI RJ45 • 1 × COM • 1 × OCP NIC 3.0 slot option
BIOS • AMI / 64MB Chassis • 2U Rackmount with Front HDD LED • 6 x 2U Cooling Fans • Dimension: 3.43" H x 17.26" W x 25" D
Power Supply • 2 x 2000W CRPS Platinum Level PSU OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • Virtual Server, Compute Server, Database Server, Cloud Computing
