High Performance XEON Server

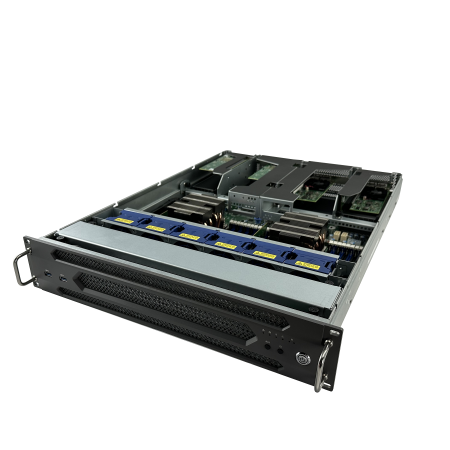

2U5E32TP-X4677B - 2U Short 4th Gen. EagleStream Server

2U Short 4th Gen. EagleStream, 5 x16 PCIe 5.0 + 32 DDR5, OCP 3.0 + 2x10GbE, 2x2000W CRPS

Key Features:

• Dual 4th Gen. Intel Xeon Scalable Processors
• 32 x DDR5 DIMM 4800MHz ECC Memory
• 2 x M.2 NVMe 4.0
• 2 x 10GbE RJ45 Ethernet, IPMI 2.0
• 2 x16 PCIe 5.0 HH + 3x16PCIe 5.0 FH
• 2 x 2000W CRPS Platinum
• For Virtual Server, Compute Server, Database Server, Cloud

SKU: 2U5E32TP-X4677B
Product specifications
Processor

• Dual 4th Gen. Intel Xeon Scalable Processors
• Sockets Supported LGA4677, Max up to 350W (TDP)

Chipset

• Intel® C741

Memory

• 32 x DDR5 DIMM Sockets
• 8 Channels per CPU
• Supports up to 4,096GB RDIMM/3DS RDIMM DDR5 4800/4400/
4000 memory

Storage

• 2 x M.2 NVMe 4.0 Slots
• Optional 16 U.2 NVMe 4.0 + 10 SATA/SAS ( SKU: 2U26N32TP-X4677B)

Network

• 2 x 10GbE BaseT RJ45 LAN Ports from Intel® X710-AT2
• 1 x GbE dedicated for IPMI

Expansion Slot

• 2 x PCIe 5.0 x16 slots (Full Height Length)
• 3 x PCIe 5.0 x16 OCP 3.0  Slot

Graphics

• Aspeed AST2600 VGA (DB15)

I/O

• 1 x USB 3.2 Ports (R)
• 2 x USB 3.2 Ports (F)
• 2 x RJ45 10GbE LAN Ports
• 1 x RJ45 IPMI 2.0 Port
• 1 x DB15 VGA Port

BIOS

• AMI / 64MB

Chassis

• 2U Rackmount with Front HDD LED
• 6 x  2U Cooling Fans
• Dimension: 3.43" H x 17.26" W x 25" D

Power Supply

• 2 x 2000W CRPS Platinum Level PSU



OS Support
• Windows Server, Linux, FreeBSD, VMware
Application
• Virtual Server, Compute Server, Database Server, Cloud Computing
Environment

• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
