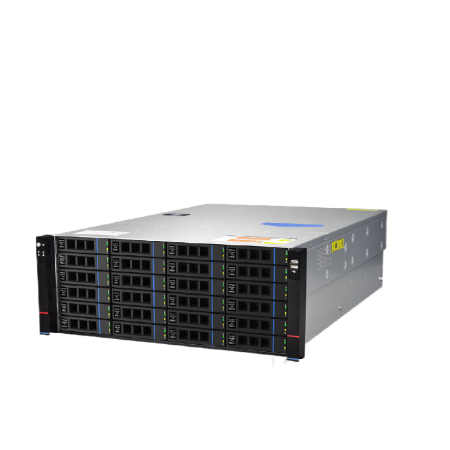

4U24S32-C741

4U 5th Xeon 36 HDD/SSD, 32 DDR5, 10GB SFP Server

Key Features:

• Dual Sockets 4th/5th Gen Intel® Xeon® Processor
• Front Up to 24 × 3.5" HDD/SSD Drive Bays，
• Rear Up to 12 × 3.5"+ 6 × 2.5" HDD/SSD
• 32 DDR5 ECC Memory, up to 8TB
• 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28 option
• BMC KVM (IPMI 2.0) Remote Management
• 4 x 2700W 3+1 CRPS Titanium Redundant Power Supply
• Runs Microsoft Windows, Server, Linux OS
• Storage Server

SKU: 4U24S32-C741

Specifications
Request for Info

Product specifications

Processor • Dual Sockets Intel® 4th / 5th Gen Xeon® Sapphire Rapids/ Emerald Rapids, up to 350W Chipset • Intel® C741
Memory • 32× DDR5 slots (RDIMM)，16-channel (8-channel per CPU), up to 5600MHz, support RDIMM/3DS RDIMM • Up to 8TB ECC Storage Integrated 6Gb/s SATA controller；12Gb/s SAS HBA or 12Gb/s SAS RAID option • Front: Up to 24 × 3.5" HDD/SSD • Rear : Up to 12 × 3.5"+ 6×2.5" HDD/SSD • Internal : 2 × M.2 (PCIe 4.0 x4，2280&22110)
Expansion Slot • Up to 10× PCIe4.0 expansion slots （Up to 2×FHFLDW or 8×FHFLSW DGPU card ） Network • Support 1×OCP3.0 expansion slot standard with PCIe 5.0 x8, (x16 is option) • LAN options: 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28 • Support NCSI
I/O • 1 × VGA • 1 × COM • 2 × USB3.0 • 1 × IPMI RJ45 • 1 × Standard OCP NIC 3.0 slot Front Panel • 2×USB3.0 • 1×Optional VGA
Internal I/O • 2 × USB 3.0 header、2 × USB 2.0 header、1 × USB 2.0 Type A • 1 × VROC Key header • 12 × SATA 3.0（3 × SFF-8643）, support RAID 0, 1, 5, 10 • 3 × MCIO（PCIe 5.0x8），support 6 × NVMe（PCIe 5.0x4） • 2 × M.2 , PCIe 4.0 x4 , 2280 & 22110 • 12 × 4pin FAN • 1 × VGA header for FP • 1 × SPI TPM 2.0 Chassis 4U 19" Standard Rackmount • 2.5” Configuration: W 448mm × H 175mm × D 772mm （792mm with ear bezel） • 3.5” Configuration: W 448mm × H 175mm × D 822mm （842mm with ear bezel）
Power Supply • 2 × Power Modules, support 1+1 redundancy • 1300W/1600W/2000W 80 PLUS Platinum power module option OS Support Windows Server, Linux

Your name *

Your email *

Inquiry *

Product specifications

Processor • Dual Sockets Intel® 4th / 5th Gen Xeon® Sapphire Rapids/ Emerald Rapids, up to 350W Chipset • Intel® C741
Memory • 32× DDR5 slots (RDIMM)，16-channel (8-channel per CPU), up to 5600MHz, support RDIMM/3DS RDIMM • Up to 8TB ECC Storage Integrated 6Gb/s SATA controller；12Gb/s SAS HBA or 12Gb/s SAS RAID option • Front: Up to 24 × 3.5" HDD/SSD • Rear : Up to 12 × 3.5"+ 6×2.5" HDD/SSD • Internal : 2 × M.2 (PCIe 4.0 x4，2280&22110)
Expansion Slot • Up to 10× PCIe4.0 expansion slots （Up to 2×FHFLDW or 8×FHFLSW DGPU card ） Network • Support 1×OCP3.0 expansion slot standard with PCIe 5.0 x8, (x16 is option) • LAN options: 4×1GbE / 2×10Gb SFP+ / 4×10Gb SFP+/ 2×25Gb SFP28 • Support NCSI
I/O • 1 × VGA • 1 × COM • 2 × USB3.0 • 1 × IPMI RJ45 • 1 × Standard OCP NIC 3.0 slot Front Panel • 2×USB3.0 • 1×Optional VGA
Internal I/O • 2 × USB 3.0 header、2 × USB 2.0 header、1 × USB 2.0 Type A • 1 × VROC Key header • 12 × SATA 3.0（3 × SFF-8643）, support RAID 0, 1, 5, 10 • 3 × MCIO（PCIe 5.0x8），support 6 × NVMe（PCIe 5.0x4） • 2 × M.2 , PCIe 4.0 x4 , 2280 & 22110 • 12 × 4pin FAN • 1 × VGA header for FP • 1 × SPI TPM 2.0 Chassis 4U 19" Standard Rackmount • 2.5” Configuration: W 448mm × H 175mm × D 772mm （792mm with ear bezel） • 3.5” Configuration: W 448mm × H 175mm × D 822mm （842mm with ear bezel）
Power Supply • 2 × Power Modules, support 1+1 redundancy • 1300W/1600W/2000W 80 PLUS Platinum power module option OS Support Windows Server, Linux
