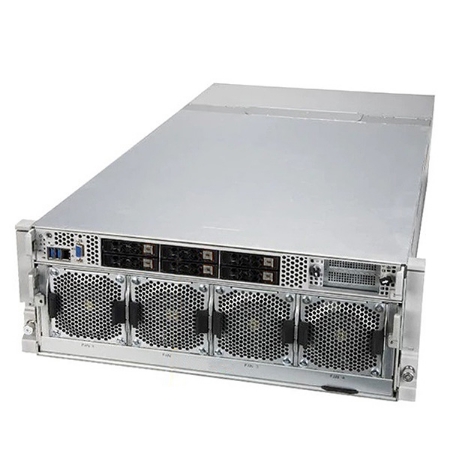

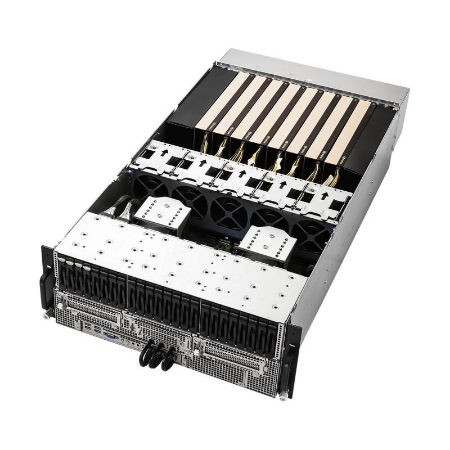

High Performance EPYC Server

4U8GPU-A100-E7003

4U 8x NVIDIA® GPU-A100, 6x 2.5” NVMe U.2/SATA, 32x 8-Channel DDR4, Dual 3rd Gen. EPYC™

Key Features:

• 4U 8 x NVIDIA® HGX A100 GPU 40GB/80GB, NVLink, NVSwitch
• Dual AMD EPYC™ 7003/7002 Series Processors
• Front 6 x 2.5” NVMe U.2 4.0 / SATA Hot Swap System Drives
• Optional Rear 4 x 2.5” NVMe U.2 4.0 SSD for GPU Storage
• 2 x M.2 NVMe 3.0 / SATA for OS Mirrored Drives
• 32 DDR4 up to 8TB 8-Channel 3200MHz ECC Memory
• 9 PCIe 4.0 x16, 1 x8 Low Profile Slots
• OCP 3.0 PCIe 4.0 x16 for Networking Module, IPMI 2.0
• 4 x 2200W-3000W Platinum/Titanium Redundant Power Supply
• GPU Cluster for AI, Deep Learning, HPC.

 Download DataSheet

SKU: 4U8GPU-A100-E7003
Product specifications
Processor
• Dual AMD EPYC™ 7003/7002 Series Processors
• Socket SP3 (LGA 4094) supports 280W, Up to 64 Core 128 Threads
GPU
• NVIDIA® HGX A100 8-GPU 40GB/80GB, NVLink, NVSwitch
Memory
• 32 DDR4 DIMM Sockets
• 8-channel memory bus per processor
• Supports up to 8TB ECC DDR4 3200MHz RDIMM
Storage
• 6 x 2.5” NVMe U.2 PCIe 4.0 / SATA Hot Swap Bays
• Up to 6 NVMe (16GT/s) / 4 SATA (6Gb/s) RAID-0/1/5/10
• Optional Rear 4 x NVMe U.2 PCIe 4.0 Hot Swap for GPU Storage
• 2 x M.2-22110/2280/2260 Sockets for NVMe 3.0 x2/SATA
Network
• OCP 3.0 (PCIe 4.0 x16) for Network Module
• Network Modules are available with 2-4 ports of 1G/2.5G/10G/25G/100G RJ45/SFP+/SFP28/QSFP28
• RJ45 Gigabit LAN for IPMI 2.0 by AST2600 (KVM)
• Additional LAN or InfiniBand by PCIe add-on cards
Expansion Slot
• 9 x PCIe 4.0 x16 (8 Rear, 1 Front), 1 x8 (Front) Low Profile
• 1 x OCP 3.0 (PCIe 4.0 x16) Slot for Ethernet Network Module
Other I/O
• 1 x RJ45 IPMI (Front), 1 x DB15 VGA, 2 x USB 3.0 (Front)
Internal I/O
• 1 x RS-232 COM and 1 TPM header
BIOS
• AMI, Watchdog Supported
Chassis
• 4U Rackmount
• 6 x 2.5” NVMe U.2 4.0/SATA Front Hot Swap Drive Bays
• Optional 4 x 2.5” NVMe U.2 4.0 Rear GPU Storage Drive Bays
• Dimension: 6.9" (174mm) H x 17.6" (446mm) W x 35.4" (900mm) D
• System Weight: 170 lbs. (77kg) Net, 230 lbs. (105kg) Gross
Power Supply
• 4 x 2200W Redundant Platinum Level (Optional 3000W Titanium)
• 1200W: 100-127Vac / 2200-3000W: 220-240Vac Input
OS Support
• Windows Server, Linux
Application
• GPU for AI, Deep Learning, HPC.
Environment

• Operating Temperature: 0 to +35 C
• Non-operating Temperature: -40 to +60 C
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, UL, RoHS Compliance

*
*
*
