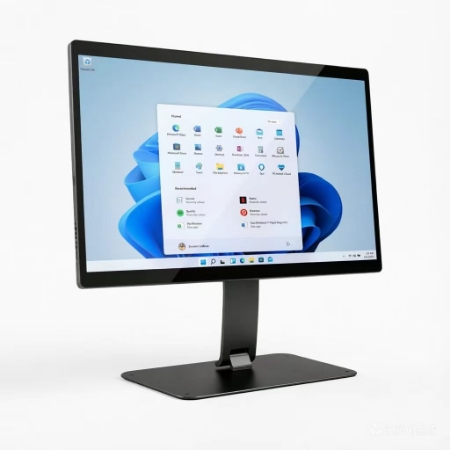

AIO-X15T-N5095 - Industrial Panel PC - Touchscreen Computer Solutions

All-in-one 15.6", Slim ITX MB Series, Industrial Panel PC, Touch Panel Kiosks

Featured Highlights
•	Dimension: 59mm(W) x 222mm(D) x 24mm(H)
	15.6" 1920x1080 IPS ,G+G, 10-Touch
•	Suppports all ThinITX MB with LVDS interface
•	Intel Celeron N5095
•	8GB LPDDR4 , 1 x M.2 2280 SSD,2.4G+5G, BT5.0
•	I/O
	4 x USB 3.0, 1 x USB-C (support DP output)
	Micro SD slot, 3.5mm Audio Jack
	1 x HDMI (support 8K output)
•	DC12V-19V Power in by 90W-120W Power Adapter
•	Applications: Home/Office or School PC, Library, Signage, Healthcare, Panel PC - Touchscreen Computer Solutions.

SKU: AIO-X15T-N5095

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® N5095 2.00/2.90GHz 4Core 4Threads 4M 10/15W Chipset • Intel® Jasper Lake Platform (SOC)
Graphics • Intel® 11th Generation UHD Graphics • Support 2 additional displays • 1 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz • 1 x Type-C, supporting DP or HDMI of 4K @60Hz Display • 15.6” IPS 1920x1080 • 10-Point Touch G+G • Aluminum Fanless Enclosure • Dimensions: 359mm (W) x 24(D) x 222(H), weight: 1.5Kg., Gross: 3.25kg. • Color: Black as default color, custom colors available with special order • Supports VESA/wall mount brackets
Memory • On-board 4G/8G LPDDR4 • 3200MHz unbuffered non-ECC • Option: supports up to 16GB memory Storage • On-board 128G eMMC • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)
LAN • 1 x Realtek RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 (for WiFi/BT or Other Module) • Supports 802.11 ac/ax WiFi-6 (2.4GHz/5.0GHz), Bluetooth 4.2 • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2230 (for WiFi/BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe NVMe)
I/O • 1 x LAN ports • 1 x Type-C port (Supports DP/HDMI) • 1 x HDMI® 2.0 port • 2 x USB 3.0 ports • 1 x DB9 RS232 Serial port • 1 x Type-C DC-In Power Connecter • 1 x Power Button Other I/O • 2 x USB 3.2 ports (Side) • 1 x 3.5mm Audio Jack (Side) • 1 x SD Slot (Side)
Audio • Realtek ALC 671 5.1 HD Audio • 1 x 3.5mm Analog Stereo Audio jack OS Support • Windows 11, IoT, Linux
Certificate • FCC, CE, UL on AC Adapter Power • Power: DC12V 3A 36W or higher wattage Power Adapter Type-C plug • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
Applications • POS, Kiosk, Digital Signage, Edge AI, Audio/Video PC, AI-IoT, Entertainment PC, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
