 High-end Desktop

B550x

2.5GHz LAN PCIe 4.0 2x16, 2 NVMe
Featured Highlights
AMD® Ryzen™ 3rd Gen. processor Socket AM4
AMD® B550 Chipset
AMD® Radeon™ Vega FGX Graphics, HDMI2.1+DP1.4
4 x DDR4 DIMM for up to 128GB Memory
6 x SATA-6Gb/s -RAID, 2 x M.2 SSD/NVMe
2 PCIe 16x+1 PCIe 1x
Gigabit LAN + M.2-WiFi
7 USB 3.0, 4 USB 2.0,1 Type-C
7.1 ALC1200 Audio Sound
750W 80 Plus high efficiency active PFC
OS Support: Windows 10, IoT, Linux
Applications: Set Top Box, Digital Signage, Surveillance, AV Player, etc.

SKU: B550X
Product specifications
Processor

• AMD® Ryzen™ processor 3rd Generation Socket AM4
• AMD Ryzen-9 3950X 16C/32T 3.5/4.7G 73M CPU 105W
• AMD Ryzen-9 3900XT 12C/24T 3.8/4.7G 70M CPU 105W
• AMD Ryzen-9 3900X 12C/24T 3.8/4.6G 70M CPU 105W
• AMD Ryzen-9 3900 12C/24T 3.1/4.3G 70M CPU 65W
• AMD Ryzen-7 3800XT 8C/16T 3.9/4.7G 36M CPU 105W
• AMD Ryzen-7 3800X 8C/16T 3.9/4.5G 36M CPU 105W
• AMD Ryzen-7 3700X 8C/16T 3.6/4.4G 36M CPU 65W
• AMD Ryzen-5 3600XT 6C/12T 3.8/4.5G 35M CPU 95W
• AMD Ryzen-5 3600X 6C/12T 3.8/4.4G 35M CPU 95W
• AMD Ryzen-5 3600 6C/12T 3.6/4.2G 35M CPU 65W
• AMD Ryzen-3 3300X 4C/8T 3.8/4.3G 18M CPU 65W
• AMD Ryzen-3 3100 4C/8T 3.6/3.9G 18M CPU 65W

Chipset
• AMD® B550 Chipset
Graphics
• AMD® Radeon™ Vega FGX Graphics
• Support 2 Graphics ports
• 1 x HDMI® 2.1 Port
• 1 x DP1.4 Port
Memory
• 4 x DDR4 DIMM
• 3600(OC)/3200(OC)/2667/2400MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 128GB
Network
• 1 x Realtek® RTL8125BG Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 2 x PCI Express 3.0 16x slot
• 1 x PCI Express 3.0 1x slot
• 1 x M.2 2230 socket (for WiFi+BT or Other Module)
• 2 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Storage
• 6 x SATA 6Gb/s supports RAID 0 ,1 ,5 ,10
• 2 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Audio
• Realtek® ALC1200 8-channel (7.1)
• Support for S/PDIF Out
• 5 x 3.5mm analog stereo audio jack
Back Panel I/O
• 5 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x USB Type-C port(for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions)
• 1 x HDMI® 2.1 port
• 1 x DP1.4 port
• 1 x LAN port
• 1 x S/PDIF port
• 5 x 3.5mm jack
• 1 x PS/2 Port
Internal I/O
• 2 x USB 3.0 Headers
• 2 x USB 2.0 Headers
Function
• 1 x TPM Header
System BIOS
• AMI® UEFI 128MBit / Legacy BIOS
Systemboard
Small Form Factor
Back I/O
Chassis

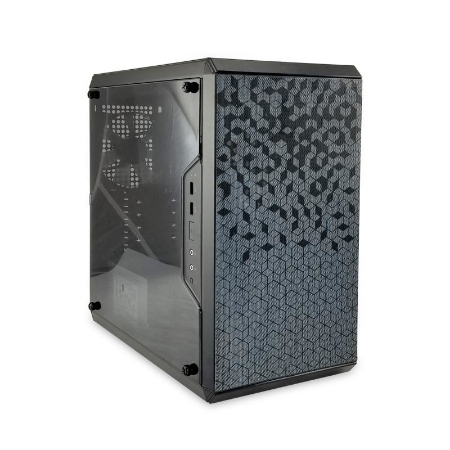

TM001-Q300L MicroATX Case
• Drive Bay: 1 x 3.5", 2 x 2.5" internal Bay
• Slot: 4
• Power Supply: PS/2 Size 400-1500W
• Cooling: 1 x 120mm Rear Quiet Fan
• Option: 2 x 120/140mm Front Fans, 2 x 120mm Top
• Radiator Support: 120, 240mm front, 120mm Rear
• Dust Filter: Front, Top, Bottom
• Dimension: 230mm x 387mm x 381mm or 9"(W) x 15.2"(D) x 15"(H)
• System Weight: 28 lb.

Option: TM2002 Case with 2 front drive bays option.
Option: TM0012 Case, Dimensions: 9.0"(W) x 15.2"(D) x 15.0"(H), transparent side panel, 1 x 120mm Rear Quiet Fan, 4 slots, Drive Bay: 1 x 3.5" and 2 x 2.5" internal Bay, Radiator Support: 120, 240mm front, 120mm Rear.

Power Supply
• 750W 80 Plus high efficiency active PFC (90V to 240V power in auto-switch)
• Quiet 140mm cooling fan, FCC, CE, CSA, UR Certified
• Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W available for custom configuration.
OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, Surveillance, AV Player, etc.
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
*
*
*
Product specifications
Processor

• AMD® Ryzen™ processor 3rd Generation Socket AM4
• AMD Ryzen-9 3950X 16C/32T 3.5/4.7G 73M CPU 105W
• AMD Ryzen-9 3900XT 12C/24T 3.8/4.7G 70M CPU 105W
• AMD Ryzen-9 3900X 12C/24T 3.8/4.6G 70M CPU 105W
• AMD Ryzen-9 3900 12C/24T 3.1/4.3G 70M CPU 65W
• AMD Ryzen-7 3800XT 8C/16T 3.9/4.7G 36M CPU 105W
• AMD Ryzen-7 3800X 8C/16T 3.9/4.5G 36M CPU 105W
• AMD Ryzen-7 3700X 8C/16T 3.6/4.4G 36M CPU 65W
• AMD Ryzen-5 3600XT 6C/12T 3.8/4.5G 35M CPU 95W
• AMD Ryzen-5 3600X 6C/12T 3.8/4.4G 35M CPU 95W
• AMD Ryzen-5 3600 6C/12T 3.6/4.2G 35M CPU 65W
• AMD Ryzen-3 3300X 4C/8T 3.8/4.3G 18M CPU 65W
• AMD Ryzen-3 3100 4C/8T 3.6/3.9G 18M CPU 65W

Chipset
• AMD® B550 Chipset
Graphics
• AMD® Radeon™ Vega FGX Graphics
• Support 2 Graphics ports
• 1 x HDMI® 2.1 Port
• 1 x DP1.4 Port
Memory
• 4 x DDR4 DIMM
• 3600(OC)/3200(OC)/2667/2400MHz unbuffered non-ECC (Dual Channel I/O)
• Supports up to 128GB
Network
• 1 x Realtek® RTL8125BG Gigabit (10/100/1000 Mb/s) LAN
• 1 x M.2 2230 WiFi+BT Socket (Taken by WiFi+BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module
Expansion Slot
• 2 x PCI Express 3.0 16x slot
• 1 x PCI Express 3.0 1x slot
• 1 x M.2 2230 socket (for WiFi+BT or Other Module)
• 2 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Storage
• 6 x SATA 6Gb/s supports RAID 0 ,1 ,5 ,10
• 2 x M.2 Socket(type 2280, SATA-6GB/s or PCIe 4x NVMe)
Audio
• Realtek® ALC1200 8-channel (7.1)
• Support for S/PDIF Out
• 5 x 3.5mm analog stereo audio jack
Back Panel I/O
• 5 x USB 3.0 Ports
• 2 x USB 2.0 Ports
• 1 x USB Type-C port(for Gigabit Ethernet, KB/Mouse, and other standard Type-C I/O functions)
• 1 x HDMI® 2.1 port
• 1 x DP1.4 port
• 1 x LAN port
• 1 x S/PDIF port
• 5 x 3.5mm jack
• 1 x PS/2 Port
Internal I/O
• 2 x USB 3.0 Headers
• 2 x USB 2.0 Headers
Function
• 1 x TPM Header
System BIOS
• AMI® UEFI 128MBit / Legacy BIOS
Systemboard
Small Form Factor
Back I/O
Chassis

TM001-Q300L MicroATX Case
• Drive Bay: 1 x 3.5", 2 x 2.5" internal Bay
• Slot: 4
• Power Supply: PS/2 Size 400-1500W
• Cooling: 1 x 120mm Rear Quiet Fan
• Option: 2 x 120/140mm Front Fans, 2 x 120mm Top
• Radiator Support: 120, 240mm front, 120mm Rear
• Dust Filter: Front, Top, Bottom
• Dimension: 230mm x 387mm x 381mm or 9"(W) x 15.2"(D) x 15"(H)
• System Weight: 28 lb.

Option: TM2002 Case with 2 front drive bays option.
Option: TM0012 Case, Dimensions: 9.0"(W) x 15.2"(D) x 15.0"(H), transparent side panel, 1 x 120mm Rear Quiet Fan, 4 slots, Drive Bay: 1 x 3.5" and 2 x 2.5" internal Bay, Radiator Support: 120, 240mm front, 120mm Rear.

Power Supply
• 750W 80 Plus high efficiency active PFC (90V to 240V power in auto-switch)
• Quiet 140mm cooling fan, FCC, CE, CSA, UR Certified
• Option: 550W, 650W, 850W, 900W, 1000W , 1250W or 1500W available for custom configuration.
OS Support
• Windows 10, IoT, Linux
Application
• Set Top Box, Digital Signage, Surveillance, AV Player, etc.
Environment
• Operating Temperature: -5 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified
