Processor
• Intel® Atom® x5-Z8350 1.44/1.92GHz 4Core 4Threads 2M 2W
Chipset
• Intel® Cherry Trail Platform (SOC)
|
Graphics
• Intel® 8th Generation HD Graphics 4K@24Hz Resolution • Support 2 Graphics ports • 1 x HDMI® 1.4, supporting a maximum resolution of 4096x2160@30 Hz • 1 x VGA Port supports up to 1920x1200 resolution
Memory
• 2G DDR3 (built-in, non-changeable) • Optional 4G DDR3 (custom order, MOQ required) • 1600MHz unbufferred non-ECC (Single Channel I/O)
|
Network
• 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN
• 802.11 ac/n Dual-Band Wi-Fi (2.4GHz / 5.8GHz), Bluetooth 4.0
Expansion Slot
• 1 x MiniPCIe full size socket for mSATA SSD • 1 x MiniPCIe full size socket for 3G/4G-LTE Modem, pair with 1 x SIM socket
|
Storage
• 1 x mSATA 6Gb/s
• 32G,64GB eMMC Flash internal Storage
• 1 x TF (microSD) Slot supports 128G+ microSD/TF Card
Audio
• 5.1 HD audio subsystem via HDMI® 1.4 interface
• 2 x 3.5mm analog stereo audio jacks
|
Back Panel I/O
• 1 x HDMI® port • 1 x VGA port • 1 x LAN port • 1 x TF Slot
Other I/O
• 1 x USB 3.0 Port (Front) • 3 x USB 2.0 Ports (Front) • 2 x 3.5mm Audio Jacks (Front) • Optional Side Serial COM DB9 port (For Linux only)
|
System BIOS
• AMI EFI BIOS
• Support for Advanced Configuration and Power Interface (ACPI), Plug and Play, and System Management BIOS (SMBIOS)
Chassis

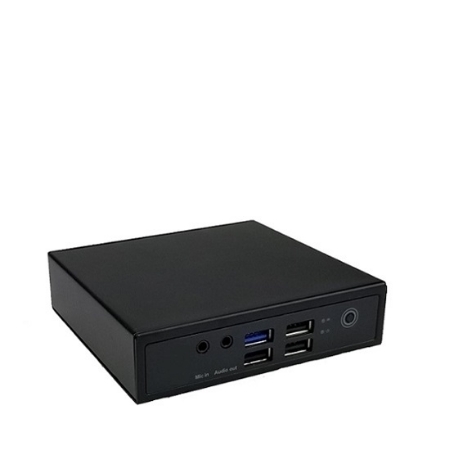

• NUC Tiny Chassis
• Dimensions: 1.33(H) x 4.96(W) x 4.33(D) inch(Height dimension can changeable), Weight: 1.5 lb (net) 6 lb(gross with packaging)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
|
Power Supply
• Power: DC5V 15W or DC12V 24W (Standard) Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support
• Windows 10 64/32-bit, 16.04, Android 4.4, IOT
|
Applications
• AI-IoT, Digital Signage, POS/Kiosk, Surveillance, Network Appliance, Media Player/IPTV, IP/PBX, Medical Equipment, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
