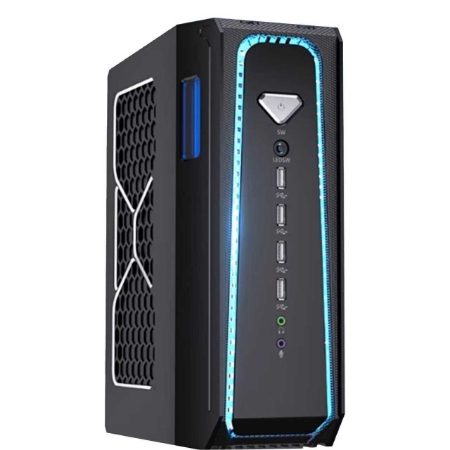

i2319-RTX5070 - Raptor Lake with NVIDIA® RTX™ 5070 for Edge AI

Intel® 14th Gen. Series i7/i9, NVIDIA® RTX™ 5070 Graphics, 1 x HDMI + 3 DP, M.2 PCI 4.0 slots + 8 x USB

Featured Highlights
	Intel® 14th Gen. Core™ i7/i9 Series Processor
	Intel® Raptor Lake Chipset
	NVIDIA® GeForce RTX 5070 12GB GDDR7 (Blackwell) 6144 Cuda Cores 94 TFLOPS 250W, 1 x HDM + 3 DP
	2 x DDR5 SO-DIMM for up to 96 GB Memory
	1 × 2280 NVMe 4.0 x4 high-speed SSD, 2 x 2.5-inch SATA 3.0 SSD / HD
	2 x Gigabit LAN, M.2 WiFi/BT
	4 x USB 3.2, 4 x USB 2.0, OPDCAL,
	Realtek® ALC892 7.1-channel HD Codec
	DC19V Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 10/11, Linux
	Applications: GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc.

SKU: i2319-RTX5070

i2319-RTX5070

Unlock the potential of AI-driven computing with i2319, powered by the formidable 14th Gen. Intel® Core™ i9/i7 Series Processor and Intel® Raptor Lake Chipset. Equipped with onboard NVIDIA® GeForce RTX™ 5070 and support for AI tasks, it delivers unparalleled performance for GPU Computing and AI Edge applications. With versatile connectivity options and robust performance, it's the ideal solution for gaming, multimedia, and demanding AI workloads. Experience seamless productivity and entertainment with the i2319.

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-14700KF 20 cores 28 threads 3.4GHz Max 5.6GHz, 33MB Cache • Intel® Core™ i9-14900KF 24 cores 32 threads 3.2GHz Max 6.0GHz, 36MB Cache Chipset • Intel® Raptor Lake Chipset
Graphics • NVIDIA® GeForce RTX 5070 12GB GDDR7 (Blackwell) 6144 Cuda Cores 94 TFLOPS 250W • Multi-display for up to Quad monitors • 1 x HDMI® 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR • 3 x DP 2.1b with UHBR20: up to 4K 480Hz or 8K 165Hz with DSC Memory • 2 x DDR5 SO-DIMM • 5600/5200/4800MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 128GB
Network • 2 x Gigabit (10/100/1000 Mb/s) LAN • WiFi6 with Bluetooth 5.3 • 1 x M.2 2230 (Taken by WiFi6+BT Module) • 2 x inner RF cables and without antennas • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for PCIe x4 NVMe/SSD)
Storage • 1 × M.2 2280 NVMe 4.0 x4 high-speed SSD • 2 x 2.5-inch SATA 3.0 SSD / HD Audio • Realtek® ALC892 7.1-channel HD Codec • 2 x front 3.5mm Analog Stereo Audio jacks • 1 x rear 3.5mm and an Optical SP/DIF Digital audio port
Back Panel I/O • 4 x USB 3.2 ports • 3 x DP1.4 port • 1 x HDMI® 2.1 ports • 2 x LAN port • 1 x OPDCAL • 1 x 3.5mm Audio jacks • 1 x DC-In 4-pin Power Connector Other I/O • 4 x USB 2.0 ports (Front) • 2 x 3.5mm analog audio jacks
System BIOS • AMI® UEFI 128MBit BIOS • Watchdog supported Chassis • Dimensions: 295(H)237(D)101(W) mm, Weight: 4.5 kg. (Net) 8 kg. (gross with packaging) • Cooling: Liquid Cooling for GPU and CPU with Dual Fans • Standard Color: Grey; Option: Black, Silver, Gold. Other custom colors are available (MOQ required)
Power Supply • Power: DC19V 300W Power Adapter 4-pin plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, Linux
Applications • GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc. Environment • Operating Temperature: 0 to +50 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Core™ i7-14700KF 20 cores 28 threads 3.4GHz Max 5.6GHz, 33MB Cache • Intel® Core™ i9-14900KF 24 cores 32 threads 3.2GHz Max 6.0GHz, 36MB Cache Chipset • Intel® Raptor Lake Chipset
Graphics • NVIDIA® GeForce RTX 5070 12GB GDDR7 (Blackwell) 6144 Cuda Cores 94 TFLOPS 250W • Multi-display for up to Quad monitors • 1 x HDMI® 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR • 3 x DP 2.1b with UHBR20: up to 4K 480Hz or 8K 165Hz with DSC Memory • 2 x DDR5 SO-DIMM • 5600/5200/4800MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 128GB
Network • 2 x Gigabit (10/100/1000 Mb/s) LAN • WiFi6 with Bluetooth 5.3 • 1 x M.2 2230 (Taken by WiFi6+BT Module) • 2 x inner RF cables and without antennas • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for PCIe x4 NVMe/SSD)
Storage • 1 × M.2 2280 NVMe 4.0 x4 high-speed SSD • 2 x 2.5-inch SATA 3.0 SSD / HD Audio • Realtek® ALC892 7.1-channel HD Codec • 2 x front 3.5mm Analog Stereo Audio jacks • 1 x rear 3.5mm and an Optical SP/DIF Digital audio port
Back Panel I/O • 4 x USB 3.2 ports • 3 x DP1.4 port • 1 x HDMI® 2.1 ports • 2 x LAN port • 1 x OPDCAL • 1 x 3.5mm Audio jacks • 1 x DC-In 4-pin Power Connector Other I/O • 4 x USB 2.0 ports (Front) • 2 x 3.5mm analog audio jacks
System BIOS • AMI® UEFI 128MBit BIOS • Watchdog supported Chassis • Dimensions: 295(H)237(D)101(W) mm, Weight: 4.5 kg. (Net) 8 kg. (gross with packaging) • Cooling: Liquid Cooling for GPU and CPU with Dual Fans • Standard Color: Grey; Option: Black, Silver, Gold. Other custom colors are available (MOQ required)
Power Supply • Power: DC19V 300W Power Adapter 4-pin plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10/11, Linux
Applications • GPU Computing, AI Edge, Video processing, High Performance PC, Digital Signage, Gaming PC, etc. Environment • Operating Temperature: 0 to +50 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 5% to 95% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
