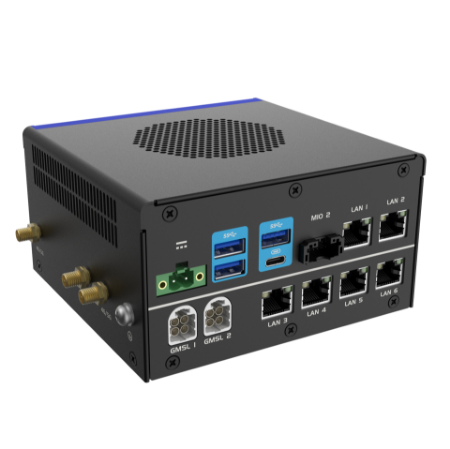

JSON6L - NVIDIA® Jetson Orin AI Edge PC

Processor

• ARM® Cortex®-A78AE 6 Core 1.7 GHz
• ARM® Cortex®-A78AE 6 Core 2.0 GHz
• ARM® Cortex®-A78AE 8 Core 2.0 GHz

Graphics

• Input: 2 x mini Fakra max（upto 8 channel GMSL2)，Output: 1 x HDMI2.1, Up to 4096 x 2160 @60Hz
• Ampere GPU, 4/8/16GB LPDDR5
• Jetson Orin Nano 4GB: 512 NVIDIA® CUDA® cores, 16 Tensor cores, 625Mhz, 7-10w ( 34 TOPS INT8 )；
• Jetson Orin Nano 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 625Mhz, 7-15w (67 TOPS INT8 )；
• Jetson Orin NX 8GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 765Mhz, 10-20w ( 117 TOPS INT8 )；
• Jetson Orin NX 16GB: 1024 NVIDIA® CUDA® cores, 32 Tensor cores, 918Mhz,10-25w ( 157 TOPS INT8 )；

Network

• 6 x Gigabit (10/100/1000 Mb/s) LAN
• 1 x WiFi5/6（support Station/AP）
• 1 x 4G-LTE/5G

I/O

• 6 x LAN RJ45 Gigabit (1 with PoE)
• 1 x 12-pin MIO Black：1 x RS232、1 x RS485、1 x CAN, 1x24V DC；
• 1 x 28pin Car MIO (Front)：1 x RS232、4 x RS485、1 x CAN，DC-12V；
• 1 x 12pin Car MIO (Front)：4 x RS485，DC-12V；
• 1 x 40pin Car MIO (Front)：24bit GPIO ( 8bit Optocoupler Isolation）
• 3 x USB3.0 Type-A，1 x USB3.0 Type-C（supports OTG）
• Video: 2 x Rear Mini Fakra (8-ch GMSL2),  1 x HDMI 2.1
• Audio: 1 x 3.5mm Combo Jack，1 x 12pin Car MIO(Front)：4 x DMIC、2 x 5W AMP

Chassis

• Nano-Size Sheet-metal, Desktop, wallmount, DIN
• Dimensions: 130L x 125W x 50H (mm)
• Color: Black or Silver as default color, custom colors available with special order
• Supports VESA/ wall mount brackets

OS Support

• Ubuntu22.04 (Jetpack6.2)

Environment • Operating Temperature: -20 to +75 C • Non operating temperature: -20 to +75 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
