Processor
• Intel® Xeon E3-1200 v5 LGA1151 Single Socket
Chipset
• Intel® C236 (for SKU# E3-236NL4, E3-236T, E3-236ST) • Intel® C232 (for SKU# E3-232x, 232N)
|
Memory
• 4 x DDR4 DIMM Sockets
• Supports Dual Channel DDR4 2133/1866/1600MHz Memory
• Supports ECC Unbuffered memory configured with Xeon E3 processor
• or non-ECC, unbuffered memory configured with Core i7/i5/i3 processor
• Max. capacity up to 64GB
LAN
• SKU# E3-232x, E3-232N: 2 x Intel® LAN (Gigabit i210-AT) Copper RJ45 ports • SKU# E3-236NL4: 4 x Intel® LAN (Gigabit i210-AT) Copper RJ45 ports • SKU# E3-236T, E3-236ST: 2 x Intel® LAN (10Gbit X550) Copper RJ45 ports • additional LAN through add-on cards
|
Expansion Slot
• 1 x PCIe 3.0 x8 (in x8 slot) • 1 x PCIe 3.0 x4 (in x8 slot) • 1 x PCIe 3.0 x8 (in x16 slot for SKU# E3-232x, E3-232N, E3-236NL4) • 1 x M.2 2260 PCIe 3.0 x4 (for SKU# E3-236NL4, E3-236T, E3-236ST)
Remote Boot Function
• IPMI 2.0 with dedicated LAN port, KVM over LAN (for SKU# E3-232N, E3-236ST, E3-236T, E3-232NL4)
|
Storage
• SKU# E3-232Xx: 6 x SATA 6.0 Gb/s supports RAID-0/1/5/10 • SKU# E3-232N: 2 x NVMe PCIe x4 + 6 x SATA 6.0 Gb/s supports RAID-0/1/5/10 • SKU# E3-236NL4, E3-236T: 8 x SATA 6.0 Gb/s supports RAID-0/1/5/10 • Sku# E3-236ST: 8 x SAS 12Gb/s (LSI) RAID-0/1/10 + 8 x SATA 6.0 Gb/s supports RAID-0/1/5/10 • 2 x DOM (SATA3 with Power) for Disk On Module SSD
Back Panel I/O
• 1 x VGA port • 2 x RJ-45 LAN port (SKU#: E3-236NL4 has 4 ports) • 1 x RJ45 IPMI port (for SKU# E3-232N ,E3-236NL4, E3-236T,E3-236ST with IPMI feature) • 2 x USB 3.0 • 2 x USB 2.0/1.1 • 1 x Serial Port (DB9)
|
Other I/O
• 2 x USB 3.0 Headers • 4 x USB 2.0 Headers • 1 x USB 2.0 Type A connector • 1 x RS-232 Header (for SKU#: E3-236 series) • 1 x TPM 1.2 20-pin Header • 2 x 4-pin fan connectors, 1 x 3-pin fan connectors • 1 x Front panel high definition audio header • 1 x 24-pin EPS Power connector • 1 x 4-pin ATX 12V Power connector • 1 x Front System Panel connector • 1 x Watchdog Header
System BIOS
• 1 x 128Mbit Flash Rom
• Licensed AMI UEFI BIOS
|
Manageability
• WOL, PXE, PME Wake
OS Support
• Windows 10 or 7 (32-bit or 64-bit) • Windows 10 or 7 Pro (32-bit or 64-bit) • Windows IoT / Embedded Linux / FreeBSD • Dual-boot Windows / Linux
|
Applications
• Internet Server, Network Appliance, Load Balance Gateway Control, Digital Signage, Medical Equipment, Banking Device, Phone System, Entertainment Server.
Chassis

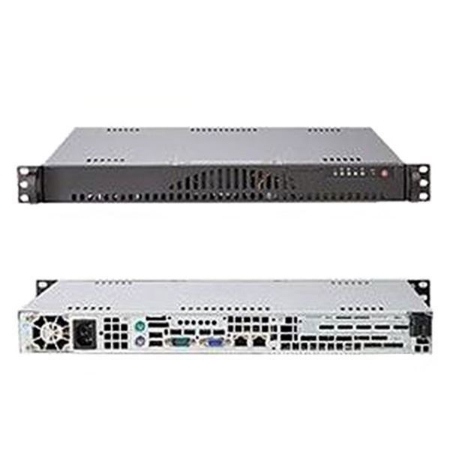

• 1U-1002SC 1U Short Rackmount Case
• Mini 1U front mount: 6.8(W)x14(D)x1.75(H) inch (30 lb.)
• Internal 1 x 3.5" or 2 x 2.5" drive bays
• Optional 2, 4 or 8 Hot Swap Drive bays by using 1U-1000S or 1104SM or 1108MS chassis
• PCIe Slot through RISER
• 180W to 400W mini 1U AC Power Supply 100-240V
• Option: DC12V Power Input, Build-in DC to DC Converter
|
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
