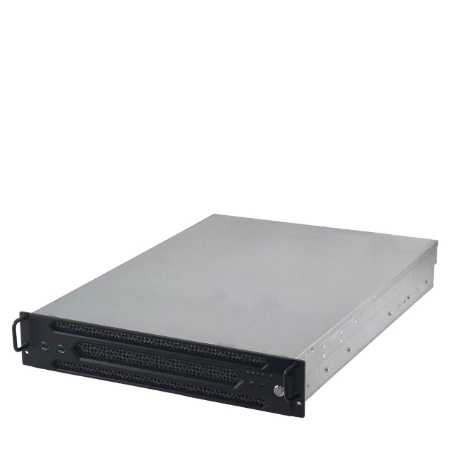

PolyServer 2U6E-X6 - 2U 6 PCIE Slots Xeon-6 Server

2U 6 PCIE Slots Xeon-6, 6 x16 PCIe 5.0 + 32 DDR5, OCP 3.0, 2x2000W CRPS

Key Features:

• Dual 6th Gen Xeon® Birch Stream-SP, up to 144 cores each, max 350W
• 32 x DDR5 DIMM 4800MHz ECC Memory
• 6 × PCIe 5.0 x16 + OCP 3.0 Slots
• 2 x 10GbE RJ45 Ethernet, IPMI 2.0
• Up to: 2× FHFLDW, 2× FHFLSW, 2× FHHLSW GPU
• 2 x 2000W CRPS Platinum
• For AI Server, Virtual Server, Compute Server, Database Server, Cloud

SKU: 2U5E-X6

Specifications
Request for Info

Product specifications

Processor • Dual Intel® 6th Gen Xeon® Birch Stream-SP, up to 144 cores each, max 350W • Support 6700P, 6500P, 6700E series CPU Chipset • None (Intel Xeon 6 PCH‑less architecture; all I/O provided by CPUs) • Xeon-6 SoC
Memory • 32 × DDR5 slots ((RDIMM/3DS RDIMM)，up to 6400MT/s, 16 channels • 6700P, 6500P series CPU support MRDIMMs, up to 8000MT/s Storage • 2 x M.2-2280/22110 for NVMe PCIe 5.0 x4 • 2 x Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays
Network • 1 x PCIe 5.0 x16 OCP3 NIC mezzanine slot (CPU0, NCSI supported) Expansion Slot • 2 × PCIe 5.0 x16 FHFL double wide slots support max 400W PCIe card (1 from CPU0, 1 from CPU1) • 2 x PCIe 50 x16 FHFL single wide slots (1 from CPU0, 1 from CPU1) • 2 x PCIe 50 x16 FHHL single wide slots (1 from CPU0, 1 from CPU1)
Graphics • VGA (AST2600) I/O Front I/O: 1 x USB 3.0 Type-A port 1 x USB 2.0 Type-A port 1 x System Power LED button 1 x UID LED button 1 x Reset button 4 x Status LEDs: Fault/LAN/M.2 Rear I/O: 2 x Hotswap E1S 95mm drive bays 1 x 1000BaseT Dedicated Server Management port 1 x COM USB Type A port 1 x USB 20 TypeA port 1 x Mini Display port 1 x Power LED (Green) button 1 x UID LED (Blue) button 1 x Status LEDs: Green/Red
BIOS • AMI / 64MB Chassis • 438mm (17.2") Wx 87mm (3.4") Hx 571mm (22.5")D
Power Supply • 2 x 2000W CRPS 80PLUS Titanium OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • Cloud Computing Service • Content Delivery Network • AI Inference and Finetune Environment • System Operating Temperature: 0°C ~ 35°C • Non-operating Temperature: -20°C ~ 70°C • Non-operating Relative Humidity: 5% to 85% (non-condensing)

Your name *

Your email *

Inquiry *

Product specifications

Processor • Dual Intel® 6th Gen Xeon® Birch Stream-SP, up to 144 cores each, max 350W • Support 6700P, 6500P, 6700E series CPU Chipset • None (Intel Xeon 6 PCH‑less architecture; all I/O provided by CPUs) • Xeon-6 SoC
Memory • 32 × DDR5 slots ((RDIMM/3DS RDIMM)，up to 6400MT/s, 16 channels • 6700P, 6500P series CPU support MRDIMMs, up to 8000MT/s Storage • 2 x M.2-2280/22110 for NVMe PCIe 5.0 x4 • 2 x Rear hot-swap E1.S 9.5mm PCIe 5.0 x4 NVMe drive bays
Network • 1 x PCIe 5.0 x16 OCP3 NIC mezzanine slot (CPU0, NCSI supported) Expansion Slot • 2 × PCIe 5.0 x16 FHFL double wide slots support max 400W PCIe card (1 from CPU0, 1 from CPU1) • 2 x PCIe 50 x16 FHFL single wide slots (1 from CPU0, 1 from CPU1) • 2 x PCIe 50 x16 FHHL single wide slots (1 from CPU0, 1 from CPU1)
Graphics • VGA (AST2600) I/O Front I/O: 1 x USB 3.0 Type-A port 1 x USB 2.0 Type-A port 1 x System Power LED button 1 x UID LED button 1 x Reset button 4 x Status LEDs: Fault/LAN/M.2 Rear I/O: 2 x Hotswap E1S 95mm drive bays 1 x 1000BaseT Dedicated Server Management port 1 x COM USB Type A port 1 x USB 20 TypeA port 1 x Mini Display port 1 x Power LED (Green) button 1 x UID LED (Blue) button 1 x Status LEDs: Green/Red
BIOS • AMI / 64MB Chassis • 438mm (17.2") Wx 87mm (3.4") Hx 571mm (22.5")D
Power Supply • 2 x 2000W CRPS 80PLUS Titanium OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • Cloud Computing Service • Content Delivery Network • AI Inference and Finetune Environment • System Operating Temperature: 0°C ~ 35°C • Non-operating Temperature: -20°C ~ 70°C • Non-operating Relative Humidity: 5% to 85% (non-condensing)
