Slim-U11L4 - is a Edge Network Gateway PC with 4 LAN

11th Gen Tiger Lake-u Mini PC, 11th Gen UHD Graphics 4 HDMI, 4 LAN + 2 SFP , 4 USB + 6 COM

Featured Highlights
	Intel Tiger Lake-u platform
	11th Gen UHD Graphics, 4 HDMI 1.4b, supports splicing
	2 DDR4 SO-DIMM
	2 M.2 2280, SATA
	4 Gigabit Ethernet, 2 Gigabit SFP, 2 M.2 WiFi/BT+4G/5G, MiniPCIe
	AI Accelerator Card Expansion
	2 USB 3.0, 2 USB 2.0, 6 COM, GPIO
	TPM/TCM (Encryption module)
	Power Supply: DC12-19V Wide Ranger Power Input
	OS Support: Windows11 Pro/IoT, Windows 10 Pro/IoT, Linux
	Applications: Edge AI, High Speed Router, Firewall, VPN, Network Security, etc

SKU: Slim-U11L4

Slim-U11L4

features Intel 11Th Gen Tiger Lake-U platform, 4 HDMI ports + 4 Gigabit LAN with option for 2 Gigabit SFP. This Rugged Industrial PC is a perfect Network Security PC and has a small form factor (SFF)

Specifications
Request for Info

Product specifications

Processor • Intel® Core™ i7-1185G7 3.00/4.80GHz 4Core 8Threads 12M 12/28W • Intel® Core™ i7-1165G7 2.80/4.70GHz 4Core 8Threads 12M 12/28W • Intel® Core™ i5-1145G7 2.60/4.40GHz 4Core 8Threads 8M 12/28W • Intel® Core™ i5-1135G7 2.40/4.20GHz 4Core 8Threads 8M 12/28W • Intel® Core™ i3-1125G4 2.00/3.70GHz 4Core 8Threads 8M 12/28W • Intel® Core™ i3-1115G4 3.00/4.10GHz 2Core 4Threads 6M 12/28W • Intel® Pentium® Gold 7505 2.00/3.5GHz 2Core 4Threads 4M 15W • Intel® Celeron® 6305 1.80GHz 2Core 2Threads 4M 15W Chipset • Intel® Tiger Lake-u Platform (SOC)
Graphics • Intel® 11th Gen. UHD Graphics • 4 x HDMI® 1.4b, supports a maximum resolution of 4K @30Hz • Support 2x2 displays or 1x4 splicing Memory • 2 x DDR4 SO-DIMM • 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 4 x Gigabit (10/100/1000/2500 Mb/s) LAN (Option: POE support) • 2 x Gigabit (10/100/1000/2500 Mb/s) SFP • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 3042 (for 4G-LTE/5G Wireless Module) • 1 x MiniPCIe (for LoRa/ZegBee/Bluetooth or Other Module) • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x MiniPCIe (for LoRa/ZegBee/Bluetooth or Other Module) • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 3042 (for 4G-LTE/5G Wireless Module) • 2 x M.2 2280 (for SATA-6Gb/s SSD) • Optional: 1 x M.2 2280 (for AI Accelerator Card, Max 16 TOPS) • Optional: 1 x SO-DIMM (for NVIDIA® JETSON NX™ Module)
Storage • 2 x M.2 2280 (for SATA-6Gb/s SSD) Audio • HD Audio • 2 x Audio-Out/Mic-In jacks

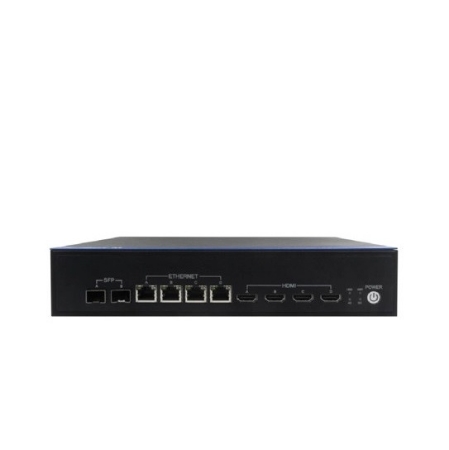

Back Panel I/O • 16 x GPIO Phoenix, 210pin port • 2 x Serial RS232/RS485 COM DB9 ports • 4 x Serial RS232 COM Phoenix, 26pin port • 2 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x DC-In 2.5mm Power Connector • 2 x Audio-Out/Mic-In jacks Other I/O • 4 x Gigabit LAN ports (Front) • 2 x Gigabit SFP ports (Front) • 4 x HDMI® 1.4b ports (Front)
Function • Onboard TCM/TPM support System BIOS • AMI® UEFI / Legacy BIOS
Chassis • Slim Chassis • Dimensions: 10.6" L x 7.9" W x 2.1" H (268 x 200 x 53.7 mm) • Color: Black as default color • Other custom color available with MOQ required for Project customers Power Supply • Power: DC12V 3A or DC19V 4.74A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Window 11 Pro/IoT, Windows 10 Pro/IoT, Linux Applications • Edge AI, High Speed Router, Firewall, VPN, Network Security, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Core™ i7-1185G7 3.00/4.80GHz 4Core 8Threads 12M 12/28W • Intel® Core™ i7-1165G7 2.80/4.70GHz 4Core 8Threads 12M 12/28W • Intel® Core™ i5-1145G7 2.60/4.40GHz 4Core 8Threads 8M 12/28W • Intel® Core™ i5-1135G7 2.40/4.20GHz 4Core 8Threads 8M 12/28W • Intel® Core™ i3-1125G4 2.00/3.70GHz 4Core 8Threads 8M 12/28W • Intel® Core™ i3-1115G4 3.00/4.10GHz 2Core 4Threads 6M 12/28W • Intel® Pentium® Gold 7505 2.00/3.5GHz 2Core 4Threads 4M 15W • Intel® Celeron® 6305 1.80GHz 2Core 2Threads 4M 15W Chipset • Intel® Tiger Lake-u Platform (SOC)
Graphics • Intel® 11th Gen. UHD Graphics • 4 x HDMI® 1.4b, supports a maximum resolution of 4K @30Hz • Support 2x2 displays or 1x4 splicing Memory • 2 x DDR4 SO-DIMM • 3200/2933/2666MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 4 x Gigabit (10/100/1000/2500 Mb/s) LAN (Option: POE support) • 2 x Gigabit (10/100/1000/2500 Mb/s) SFP • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 3042 (for 4G-LTE/5G Wireless Module) • 1 x MiniPCIe (for LoRa/ZegBee/Bluetooth or Other Module) • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x MiniPCIe (for LoRa/ZegBee/Bluetooth or Other Module) • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 3042 (for 4G-LTE/5G Wireless Module) • 2 x M.2 2280 (for SATA-6Gb/s SSD) • Optional: 1 x M.2 2280 (for AI Accelerator Card, Max 16 TOPS) • Optional: 1 x SO-DIMM (for NVIDIA® JETSON NX™ Module)
Storage • 2 x M.2 2280 (for SATA-6Gb/s SSD) Audio • HD Audio • 2 x Audio-Out/Mic-In jacks
Back Panel I/O • 16 x GPIO Phoenix, 210pin port • 2 x Serial RS232/RS485 COM DB9 ports • 4 x Serial RS232 COM Phoenix, 26pin port • 2 x USB 3.0 ports • 2 x USB 2.0 ports • 1 x DC-In 2.5mm Power Connector • 2 x Audio-Out/Mic-In jacks Other I/O • 4 x Gigabit LAN ports (Front) • 2 x Gigabit SFP ports (Front) • 4 x HDMI® 1.4b ports (Front)
Function • Onboard TCM/TPM support System BIOS • AMI® UEFI / Legacy BIOS
Chassis • Slim Chassis • Dimensions: 10.6" L x 7.9" W x 2.1" H (268 x 200 x 53.7 mm) • Color: Black as default color • Other custom color available with MOQ required for Project customers Power Supply • Power: DC12V 3A or DC19V 4.74A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Window 11 Pro/IoT, Windows 10 Pro/IoT, Linux Applications • Edge AI, High Speed Router, Firewall, VPN, Network Security, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 10% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
