Processor
• Intel® 12th/13th/14th Generation Core™ i5/i7/i9 Processors
Chipset
• Intel® W680 Chipset
|
Memory
• 4 x DDR5 RDIMM Slots 4800/5600MHz ECC • up to 128GB
Graphics
• ASPEED AST2600 Graphics Card Supports IPMI 2.0 Redfish • On-board 1 x DP, 1 x HDMI, 1 x VGA Graphics ports
|
Storage
• 8 x SATA 6Gb/s Supports RAID-0, 1, 5, 10 • 1 x M.2 2242/2280 for PCIE 4.0 x4 NVMe • 1 x M.2 2280 for PCIe 3.0 x 4 NVMe
Network
• 2 x Intel® I226 2.5Gigabit Ethernet • 1 x RJ45 10/100/1000Mbps LAN Port for IPMI 2.0 (Supports Redfish) • Option: additional LAN can be added by PCIe adapters
|
Expansion Slot
• 1 x PCI Express 5.0 x16 slot (x16 Signal) • 2 x PCI Express 4.0 x8 slot (x4 Signal) • 1 x PCI Express 3.0 x4 slot (x4 Signal) • 1 x M.2 2242/2280 for PCIE 4.0 x4 NVMe • 1 x M.2 2280 for PCIe 3.0 x 4 NVMe

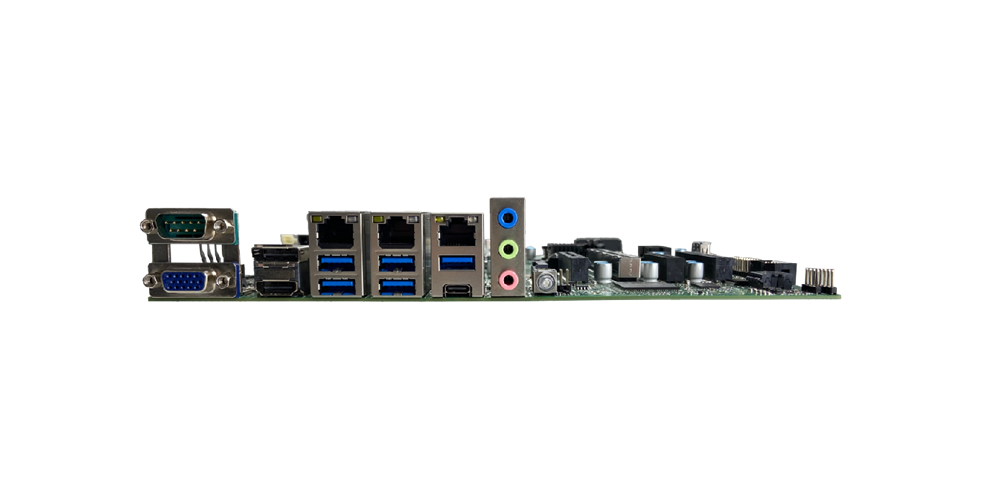

Back Panel I/O
• 1 x IPMI (RJ45) • 5 x USB 3.2 (Type-A) • 2 x RJ-45 2.5GbE LAN • 1 x Type-C (USB 3.2) • 1 x COM • 1 x UID Switch（with LED） • 3 x 3.5mm Audio • 1 x VGA • 1 x HDMI • 1 x DP
|

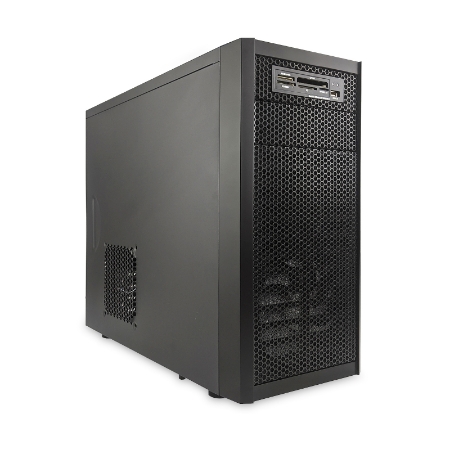

Chassis
• TM001 MicroATX Case, Dimension: 9"(W) x 15.2"(D) x 15"(H), System Weight: 28 lb. • Drive bay: 1 x 3.5", 2 x 2.5" Internal bays, 4 x Expansion slots • Power Supply: PS/2 Size 400-1500W, Cooling: 1 x 120mm Rear Quiet Fan, Option: 2 x 120/140mm Fans (Front), 2 x 120mm Fans (Top), Radiator Support: 120, 240mm front, 120mm Rear • Dust Filter: Front, Top, Bottom • Option: TM2002 Case with 2 x Front Drive bays option • Option: TM0012 Case
|
OS Support
• Windows 10/11 Pro, Windows Server, Linux, FreeBSD
|
Power
• Dual CRPS Redundant 550W/800W Platinum/Titanium • 90V-240VAC Input
Applications
• Edge AI Computing, AI Inference, NVIDIA® CUDA®, Open AI ChatGPT, Microsoft CoPilot, Google Gemini, Meta Llama, etc.
|
Environment
• Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
|
