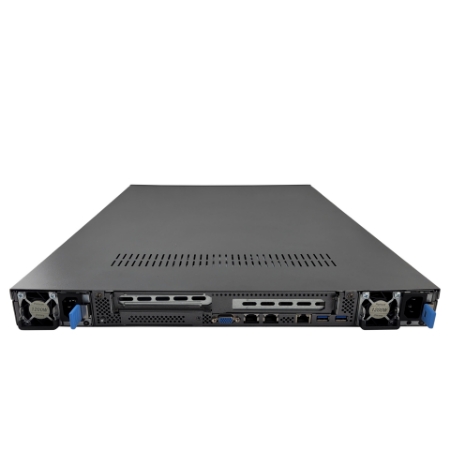

PolyServer 1U2S-X5 - 1U Short 5th Gen. EagleStream Server

1U Short 5th Gen. EagleStream , 2 x PCIe 5.0 + 32 DDR5, OCP 3.0 + 2x10GbE, 2x2000W CRPS

Key Features:

• Dual 5th Gen. Intel Xeon Scalable Processors
• 32 x DDR5 DIMM 4800MHz ECC Memory
• 2 x M.2 NVMe 4.0
• 2 x 10GbE RJ45 Ethernet, IPMI 2.0
• 2 x PCIe 5.0 x16 Slots (Full Height)
• 2 x 2000W CRPS Platinum
• For Virtual Server, Compute Server, Database Server, Cloud

SKU: 1U2E32TP-X4677B

Specifications
Request for Info

Product specifications

Processor • Dual 5th Gen. Intel Xeon Scalable Processors • Sockets Supported LGA4677, Max up to 350W (TDP) Chipset • Intel® C741
Memory • 32 x DDR5 DIMM Sockets • 8 Channels per CPU • Supports up to 4,096GB RDIMM/3DS RDIMM DDR5 4800/4400/ 4000 memory Storage • 2 x M.2 NVMe 4.0 Slots • Optional 12 U.2 NVMe 4.0 or 4 SATA/SAS ( SKU: 1U12N32TP-X4677B)
Network • 2 x 10GbE BaseT RJ45 LAN Ports from Intel® X710-AT2 • 1 x GbE dedicated for IPMI Expansion Slot • 2 x PCIe 5.0 x16 slots (Full Height Length) • 1 x PCIe 5.0 x16 OCP 3.0 Slot
Graphics • Aspeed AST2600 VGA (DB15) I/O • 1 x USB 3.2 Ports (R) • 2 x USB 3.2 Ports (F) • 2 x RJ45 10GbE LAN Ports • 1 x RJ45 IPMI 2.0 Port • 1 x DB15 VGA Port
BIOS • AMI / 64MB Chassis • 1U Rackmount with Front HDD LED • 6 x 4cm Cooling Fans • Dimension: 1.75" H x 17.2" W x 24.9" D • Weight: 35lb • Optional: • 2U Rackmount 3.43" H x 17.26" W x 25" D
Power Supply • 2 x 2000W CRPS Platinum Level PSU OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • Virtual Server, Compute Server, Database Server, Cloud Computing Environment • System Operating Temperature: 0°C ~ 35°C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Non-operating Relative Humidity: 5% to 85% (non-condensing)

Your name *

Your email *

Inquiry *

Product specifications

Processor • Dual 5th Gen. Intel Xeon Scalable Processors • Sockets Supported LGA4677, Max up to 350W (TDP) Chipset • Intel® C741
Memory • 32 x DDR5 DIMM Sockets • 8 Channels per CPU • Supports up to 4,096GB RDIMM/3DS RDIMM DDR5 4800/4400/ 4000 memory Storage • 2 x M.2 NVMe 4.0 Slots • Optional 12 U.2 NVMe 4.0 or 4 SATA/SAS ( SKU: 1U12N32TP-X4677B)
Network • 2 x 10GbE BaseT RJ45 LAN Ports from Intel® X710-AT2 • 1 x GbE dedicated for IPMI Expansion Slot • 2 x PCIe 5.0 x16 slots (Full Height Length) • 1 x PCIe 5.0 x16 OCP 3.0 Slot
Graphics • Aspeed AST2600 VGA (DB15) I/O • 1 x USB 3.2 Ports (R) • 2 x USB 3.2 Ports (F) • 2 x RJ45 10GbE LAN Ports • 1 x RJ45 IPMI 2.0 Port • 1 x DB15 VGA Port
BIOS • AMI / 64MB Chassis • 1U Rackmount with Front HDD LED • 6 x 4cm Cooling Fans • Dimension: 1.75" H x 17.2" W x 24.9" D • Weight: 35lb • Optional: • 2U Rackmount 3.43" H x 17.26" W x 25" D
Power Supply • 2 x 2000W CRPS Platinum Level PSU OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • Virtual Server, Compute Server, Database Server, Cloud Computing Environment • System Operating Temperature: 0°C ~ 35°C (Please contact product specialist for details) • Non operating temperature: -20 to 70 C • Non-operating Relative Humidity: 5% to 85% (non-condensing)
