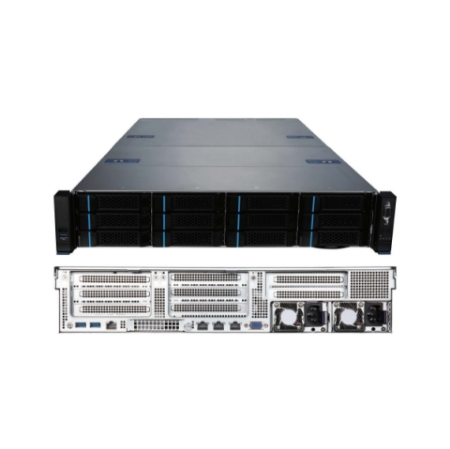

2U12S-E5

2U 12 x Hot-swap 2.5" drive bays, 7 PC le 5.0 x16 expansion slots , 24 × DDR5 slots, 5th Gen EPYC™

Key Features:

• 2 × AMD EPYC 9004/9005 series processors, up to 128 cores each, up to TOP 360W
• 12 x Hot-swap 2.5" drive bays: support 8 SATA 3.0/SAS + 4 x U.2 PC le 4.0 NVMe
• 24 × DDR5 slots,up to 4800MHz, RDIMM/3DS RDIMM
• 2 x 1GbE RJ45 LAN + 2 x 10G SFP+ Ethernet Ports (Intel® X71 0-BM2) through OCP3.0 NIC OCP-321
• 7 x PCle 5.0 x16 FHHL slots
• 1600W Titanium Redundant Power Supply
• For cloud computing services,content delivery networks, network function virtualization, 5G core and edge telecom micro data centers, and Al inference and machine learning.

SKU: 2U12S-E5

Specifications
Request for Info

Product specifications

Processor • 2 × AMD socket SP5 supporting AMD EPYCTM 9005/9004 Series processors, up to TOP 360W Memory • 24× DDR5 slots 12 channels(1 DPCI ) RDIMM/RIMM-3DS , up to 6000MHz • RDIMM: 96GB / RDIMM-3DS: 256GB
Storage • 24 x Hot-swap 2.5" drive bays: 16 x U.2 PCle 4.0 NVMe + 8 x SATA 3.0/SAS Network • 2 1000Base-T Ethernet Ports (Intel® 1350AM2) • 2 10G SFP+ Ethernet Ports (Intel® X71 0-BM2) through OCP3.0 NIC OCP-321
Expansion Slot • 3 x PCle 5.0 x16 FHHL slot from CPU0 • 4 x PCle 5.0 x16 FHHL slot [x8 signal) from CPU1 Graphics • Aspeed AST2600 BMC VGA
Back Panel I/O • 2 x 1000Base-T Ethernet ports [2U24N-E5 only) • 1 x 1000Base-T Dedicated Server Management port • 2 x USB 3.0 Type-A port • 1 x VGA O-Sub port • 1 x COM RJ45 port • 1 x UID LED button Front Panel • 12 Hot-swap 2.5" drive bays (Front) • 1 x USB 3.0 Type-A port (Front) • 1 x USB 2.0 Type-A port (Front) • 1 x VGA D-Sub port (Front) • 1 x System Power LED button (Front) • 1 x UID LED button (Front) • 1 x Reset button (Front) • 4 x Status LEDs: Fault/LAN/M.2 (Front)
BIOS • AMI® • Watchdog Supported Chassis • 2U Rackmount with Front UID/LED • 12 x 2.5” NVMe U.2 4.0/SATA/SAS Hot Swap Drive Bays • 4 x 8cm Cooling Fans • Dimensions: 438mm(17.2")W x 87mm(3.4")H x 770mm(30.3")D • System Weight: 42 lbs. (19kg) Net, 70 lbs. (32kg) Gross
Power Supply • 1600W (1+1) Redundant Titanium Level with PMBus • 1000W: 100-127Vac / 1600W: 200-240Vac Input OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • For cloud computing services,content delivery networks, network function virtualization, 5G core and edge telecom micro data centers, and Al inference and machine learning. Environment • Operating Temperature: 0 to +35 C • Non-operating temperature: -40 to +60 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
