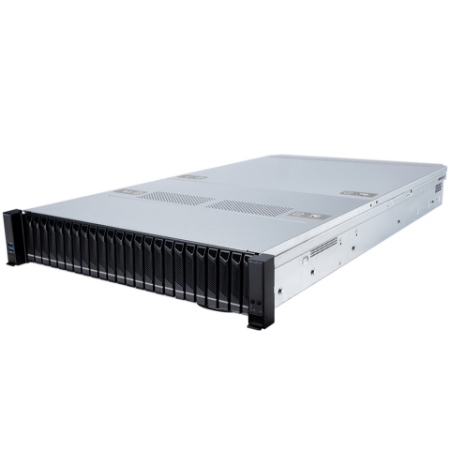

2U24N-E5

2U 24 2.5" front storge bays, 24x 12-Channel DDR5, 3 PCIe5.0 x16 Slots, Dual 3rd Gen. EPYC™

Key Features:

• Dual AMO socket SP5 supporting AMO EPYCTM 9005/9004 Series processors, up to TOP 360W
• 2U 24 x 2.5” NVMe U.2 4.0 / SATA / SAS Hot Swap Drives
• 24 DDR5 up to 96GB 12-Channel 6000MHz ECC Memory
• 4 x 10Gbit Ethernet (2 x RJ45, 2 x SFP+),OCP3.0 NIC OCP-321
• 1 PCle 5.0 x16 FHHL slot from CPU0
2 PCle 5.0 x16 FHHL slot [x8 signal) from CPU0
• 1600W Titanium Redundant Power Supply
• For cloud computing services,content delivery networks, network function virtualization, 5G core and edge telecom micro data centers, and Al inference and machine learning.

SKU: 2U24N-E5

Specifications
Request for Info

Product specifications

Processor • Dual AMO socket SP5 supporting AMO EPYC™ 9005/9004 Series processors, up to TOP 360W Other I/O • 24 Hot-swap 2.5" drive bays (Front) • 1 USB 3.0 Type-A port (Front) • 1 USB 2.0 Type-A port (Front) • 1 VGA O-Sub port (Front) • 1 System Power LED button (Front) • 1 UID LED button (Front) • 1 Reset button (Front) • 4 Status LEDs: Fault/LAN/M.2 (Front)
Memory • 24 DDR5 DIMM Sockets • 12-channel memory bus per processor • Supports up to 96GB ECC DDR5 6000MHz RDIMM, RDIMM-3DS: 256GB Storage • 24 Hot-swap 2.5" drive bays support 16 U.2 PCle 4.0 NVMe and 8 SATA 3.0/SAS • Supports NVMe (16GT/s) / SATA (6Gb/s) RAID-0/1/5/10 • 2 x M.2-2280 PCIe 3.0 x4 NVMe Slots
Network • 2 1000Base-T Ethernet ports [Intel® 1350AM2) • 2 10G SFP+ Ethernet ports [Intel® X71 0-BM2) through OCP3.0 NIC OCP-321 Expansion Slot • 3 x PCIe 5.0 x16 (2 Full Height, 1 Low Profile)
Graphics • Aspeed AST2600 BMC VGA Back Panel I/O • 2 1000Base-T Ethernet ports [2U24N-E5 only) • 1 1000Base-T Dedicated Server Management port • 2 USB 3.0 Type-A port • 1 VGA O-Sub port • 1 COM RJ45 port • 1 UID LED button
BIOS • AMI® • Watchdog Supported Chassis • 2U Rackmount with Front UID/LED • 24 x 2.5” NVMe U.2 4.0/SATA/SAS Hot Swap Drive Bays • 4 x 8cm Cooling Fans • Dimension: 3.5" (89mm) H x 17.2" (437mm) W x 28.46" (723mm) D • System Weight: 42 lbs. (19kg) Net, 70 lbs. (32kg) Gross
Power Supply • 1600W (1+1) Redundant Titanium Level with PMBus • 1000W: 100-127Vac / 1600W: 200-240Vac Input OS Support • Windows Server, Linux, FreeBSD, VMware
Applications • For cloud computing services,content delivery networks, network function virtualization, 5G core and edge telecom micro data centers, and Al inference and machine learning. Environment • Operating Temperature: 0 to +35 C • Non-operating temperature: -40 to +60 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, UL, RoHS Compliance
