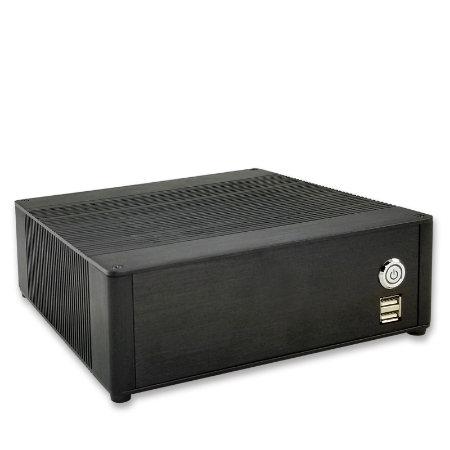

Picture of B860L2

Picture of B860L2

Picture of B860L2

Picture of B860L2

B860L2

Arrow Lake-S Dual LAN+WiFi-6 NVMe 5.0 16x Slot, DDR5 Memory, 8K DP+HDMI Dual Display

Featured Highlights
	Intel® Core™ Ultra i9/i7/i5 Socket-S Processor LGA1851
	Intel® B860 Chipset for Arrow Lake Family
	Intel® ARC/Xe 8K Graphics, HDMI 2.1+DP 1.4 Dual Display
	2 DDR5 DIMM for up to 128GB Dual Channel Memory
	2 x M.2 2280 PCIe 5.0 + 4.0 Dual SSD, 4 SATA3.0 SSD/HDD
	1 PCIe 5.0 x16, M.2 2230 WiFi slot
	Dual LAN (Intel i219 + Realtek 8125 2.5G), Supports WiFi/BT
	5 USB 3.2, 6 USB 2.0, 2 USB 3.2 Type-C
	7.1 Realtek® ALC897 Audio Codec
	DC12V 120W or higher wattage Power Adapter (UL/CE/FCC Certified) Option: 90V-240V 220W or higher wattage AC Power Supply
	OS Support: Windows 10/11, Linux, FreeBSD
	Applications: AI Edge (Edge Computing), Digital Signage, Network Security, Audio/Video PC, SoHo PC, etc.

SKU: B860L2

Specifications
Request for Info

Product specifications

Processor • Intel^® Core™ Ultra Processors (Series 2) (LGA1851) • Intel^® Core™ Ultra 9-285, 7-265, 5-245/235/225 (65W) • Intel^® Core™ Ultra 9-285T, 7-265T, 5-245T/235T/225T (35W) • Supports Intel^® Hybrid Technology • Supports Intel^® Turbo Boost Max 3.0 Technology • Supports Intel^® Thermal Velocity Boost (TVB) • Supports Intel^® Adaptive Boost Technology (ABT) • Integrated NPU for dedicated AI acceleration Chipset • Intel®B860 Chipset
Graphics • Intel® Xe LPG Graphics Architecture • 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz • 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Supports two 4K displays or one 8K display Only the CPU's embedded graphics can be displayed through Thunderbolt™ ports. If you want to display to a Thunderbolt™ monitor, please use CPU models with embedded graphics. Memory** • Dual Channel DDR5 Memory Technology • 2 x DDR5 DIMM Slots • Supports DDR5 non-ECC, un-buffered memory up to 8666+(OC)* • Supports Clocked Unbuffered DIMM (CUDIMM) • Max. capacity of system memory: 256GB • Supports Intel® Extreme Memory Profile (XMP) 3.0x • 1DPC 1R Up to 8933+ MHz (OC), 6400 MHz Natively. 1DPC 2R Up to 6800+ MHz (OC), 6400 MHz Natively.
Network • 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125BG) • Supports Dragon 2.5G LAN Software • Smart Auto Adjust Bandwidth Control • Visual User Friendly UI • Visual Network Usage Statistics • Optimized Default Setting for Game, Browser, and Streaming Modes • User Customized Priority Control 1 x Gigabit LAN 10/100/1000 Mb/s (Intel^® I219V) • Supports WiFi/BT • Supports 802.11axe Wi-Fi 6E Module • Supports IEEE 802.11a/b/g/n/ac/ax/axe • Supports Dual-Band 2x2 with extended 6GHz band support* • 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology • Supports Bluetooth 5.3 • Supports MU-MIMO Expansion Slot • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNVio2 (Integrated WiFi/BT) *Supports NVMe SSD as boot disks
Storage • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* • 4 x SATA3 6.0 Gb/s Connectorsne, supports RAID 0/1/5/10 for SATA storage devices Supports Intel^® Volume Management Device (VMD) Supports NVMe SSD as boot disks Audio • 7.1 CH HD Audio (Realtek ALC897 Audio Codec) • Nahimic Audio
Back Panel I/O • 2 x Antenna Ports • 1 x HDMI Port • 1 x DisplayPort 1.4 • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) • 1 x USB 3.2 Gen2 Type-A Port • 2 x USB 3.2 Gen1 Ports • 4 x USB 2.0 Ports • 2 x RJ-45 LAN Ports • HD Audio Jacks: Line in / Front Speaker / Microphone Internal I/O • 1 x Addressable LED Header* • 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) • 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control) • 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** • 1 x 24 pin ATX Power Connector • 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) • 1 x Front Panel Audio Connector • 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) • 1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports) • 1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
Other I/O • 1 x USB 3.2 Gen2 Type-C (Front) • 2 x USB 3.2 Gen1 (Front) • 2 x USB 2.0 (Front) System BIOS • 256Mb AMI UEFI Legal BIOS with GUI support
Systemboard • Small Form Factor 6.7-in x 6.7-in, 17.0 cm x 17.0 cm • Back I/O Chassis • 400B Small Form Factor Aluminum Chassis • Dimensions: 8.1"(W) x 8.1"(D) x 2.6"(H) Weight: 1.6 lb. Net 10 lb (with packaging) • Drive Bay: 2.5" • Color: Black as default color, option: Custom color, Custom logo available. MOQ required • Supports VESA, wall mount or rackmount bracket
Power Supply • DC12V 120W or higher wattage Power Adapter (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Microsoft Windows^® 11 64-bit
Applications • High-End Gaming, AI-IoT, Surveillance, AV Player, etc. Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
