Booksize i-Series

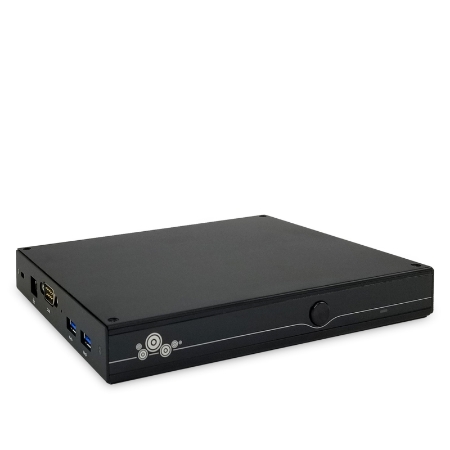

1" Slim Booksize Mini PC
  Featured Highlights
Dimensions:
7.46"(W)x 5.8"(D) x 1.0"(H)  / Fanless version: 7.48"(W)x 5.8"(D) x 1.45"(H)
For Booksize MB with Slim blower, Optional Fanless SKU available.
Supports u-series Core i7/i5/i3/Pentium/Celeron Mobile CPU configurations
7mm-15mm 2.5" HD/SSD Drive Bay
DC12/19V 36W-120W Power in
Supports VESA, wall mount as well for 1U Multiple System tray.
Color: Black or Silver  as default color, custom colors available with special order
Applications: Set Top Box, Digital Signage, POS/Kiosk, Traffic Controller, etc.

SKU: Booksize-i
Model Processor Chipset Memory Graphics Network USB2.0 USB3.0 Ports Expansion OtherIO Audio
i61B i5-7200u Kaby Lake-u 2 DDR3SO Intel HD 520 1 Intel 2 F 2 F 1 HDMI+1 DP 2 MiniPCIe 5.1 ALC662
i61F i5-7200u Kaby Lake-u 2 DDR4SO Intel HD 620 1 Intel\i219LM+1 Realtek\RTL8111F 2 R 2 R+2 S 2 DP+1 VGA 2 MiniPCIe TPM 5.1 ALC662
i63B / i65B i3-8145U Whiskey Lake-u Coffee Lake-u 2 DDR4SO Intel UHD 620 Intel Iris 655 1 Realtek\RTL8111H 5 S 5 S 1 HDMI+1 HDMI2.0+1 DP MiniPCIe 5.1 ALC662
i63F/i63u i7-8665u Whiskey Lake-u 2 DDR4SO Intel UHD 620 1 Intel i219LM/S+1 Realtek RTL8111F/R 2 R+4 S 2 R+4 S 1 HDMI+1 HDMI2.0+1 DP MiniPCIe TPM 5.1 ALC662
i63C / i65C 10th/8th Gen. u-Series Comet Lake-u/Whiskey Lake-u SOC 2 DDR4SO 10th/8th Gen. UHD Graphics Intel® i219+Realtek® RTL8111H w/ SIM 4 R+2F 1 HDMI 2.0+1 HDMI 1.4+1 DP 1.2 MiniPCIe 5.1 ALC662
i53B Intel Core i3 HM76 1 DDR3 Intel HD 4000 1 Realtek
i59B i5-6200u Skylake-u 2 DDR3SO Intel HD 520 1 Intel\i219LM 2 R 2 R 1 HDMI+1 DP 2 MiniPCIe 5.1 ALC662
i41F N3150 Braswell-u 2 DDR3SO 8th Gen. HD 2 Realtek 2 R 3 R 1 DP+1 HDMI 2 MiniPCIe TPM 5.1 ALC662
i42F/i43F N3350 Apollo Lake 1 DDR3SO Intel HD 500 2 Realtek 2 R 3 R 1 HDMI+1 DP 2 MiniPCIe 5.1 ALC662
i35GB D2550/N2600 NM10 1 DDR3SO NVIDIA GT610 1 Realtek 5R HMDI + VGA
i39B J1900 Bay Trail 1 DDR3SO 7th Gen. HD 1 Realtek 4 R 1 R 1 HDMI+1 VGA MiniPCIe 5.1 ALC662
i39F-J1900 J1900 Bay Trail 1 DDR3SO 7th Gen. HD 2 Realtek 2 R 3 R 1 HDMI+1 VGA MiniPCIe 5.1 ALC662
V4000-4HDMI V1605B AMD V1000 2 DDR4SO Radeon Vega 1 Realtek\RTL8111H 2 S 2 H 4 HDMI2.0 MiniPCIe

Support Models

*
*
*
