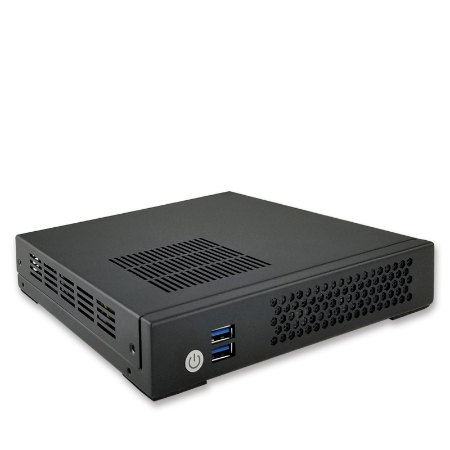

140D

7"(W) x 7.2"(D) x 1.4"(H)

Featured Highlights
•	Dimensions: 7"(W) x 7.2"(D) x 1.4"(H) 7.5"(W) x 7"(D) x 1.4"(H) (2 Front USB)
•	One 2.5" HD/Solid State Drive Bay
•	Built-in DC to DC Converter
•	DC12V 5A Power Adapter
•	Color: Black (Custom colors available with special order)
•	Applications: Digital Signage, AV Home Entertainment, Vehicle/ Boat PC, Set top box, Surveillance, Network Appliance, Medical Equipment, IP Phone

SKU: 140D

Support Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	M.2	MSata	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio
H410A1	10th Socket 1200	H410	2 DDR4SO	Intel UHD 630	1 Reltek\RTL8111F	1	2	4R	2R+2F	1 DP + HDMI		LPT/S	5.1 ALC662
B365AL2	6/7/8/9th Socket 1151	B365	2 DDR4SO	Integrated	2 Realtek\RTL8111H	1-4/6/8	2	4 H	4 R+2 H	1 DP+1 HDMI+1 LVDS/H		TPM	2.1 ALC269
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	2-8	1	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	2-8	1	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
H310A1	8/9th Socket 1151	H310	1 DDR4SO	Intel UHD 630	1 Intel\i219V	1	2	4 H	4 R+2 H	1 HDMI+1 VGA/H+1 LVDS/H			5.1 ALC662
H310CAL2	6/7/8/9th Socket 1151	H310C	2 DDR4SO	Intel UHD	2 Realtek\RTL8111H	1		2 R	2 R+2 F	1 DP+1 HDMI		LPT/S	5.1 ALC662
H310CA	6/7/8/9th Socket 1151	H310C	2 DDR4SO	Intel UHD	1 Realtek\RTL8111H	1		4 R	2 R+2 F	1 DP+1 HDMI		LPT/S	5.1 ALC662
H110AEL2/i1000A12	6/7th Socket 1151	H110	2 DDR4SO	Intel HD 530 Intel HD 630	1 Intel\i219V+1 Intel\i211AT	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH	MiniPCIe+PCIe 4x	GPIO	7.1 ALC887
H110L2A/i1000A13	6/7th Socket 1151	H110	2 DDR4	Intel HD 530 Intel HD 630	2 Realtek	2-8	1	6 H	2 R	1 HDMI+1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
Q170A2-3HDMI	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	2 HDMI+1 HDMI2.0+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
Q170A	6/7th Socket 1151 vPro	Q170	2 DDR4SO	Intel HD 530 Intel HD 630	2 Intel	2-8	1	4 H	4 R	1 DP+1 HDMI+1 VGAH+1 LVDS	2 MiniPCIe+PCIe 4x	GPIO+TPM	7.1 ALC887
Slim-H110A2	6/7th Socket 1151	H110	1 DDR4SO	Intel HD 530 Intel HD 630	1 Realtek\RTL8111F	2-8	1	4 H	4 R	1 HDMI+1 VGA+1 LVDS	1 MiniPCIe+1 MiniPCIe-F		5.1 ALC662
U10A/U10AL2	i7-10710U	Comet Lake-u	2 DDR4SO	10th Gen. UHD	1 Realtek\RTL8111H+option:1 Realtek\RTL8111H	1-4/6/8	2	3 H	4 R+2 H	1 DP\VGA+1 HDMI+1 LVDS/H		TPM	5.1 ALC662
Slim-7000A2/6000A2	i5-7200u	Kaby Lake-u Skylake-u	1 DDR4SO	Integrated	1 Realtek\RTL8111F+option:1 Realtek\RTL8111F	2	1	option 2 R+2 H	2 R	2 HDMI/R+1 eDP/H\LVDS	1 MiniPCIe		5.1 ALC662
Slim-7000e4	i7-7500u	Kaby Lake-u Skylake-u	1 DDR4SO	7th Gen. HD	1 Realtek/F\RTL8111F	1-8/4		4 R	6 R	2 HDMI/F	4 MiniPCIe	GPIO	5.1 ALC662
Slim-7000L4	i7-7660u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2-8	1	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
Slim-3865L4	3865u	Kaby Lake-u	1 DDR4SO	Intel HD 610	4 Intel	2-8	1	2 R+2 H	2 R+2 H	1 HDMI	MiniPCIe+PCIe 1x	1xPS/2+TPM	5.1 HDMI
i5-6267FL	i5-6267u	Skylake-u	2 DDR3SO	Intel Iris 550	1 Realtek\RTL8111F	1-4	1	2 R+4 H	2 R+2 H	1 HDMI+1 VGA+1 LVDS		1xPS/2+LPT+GPIO	5.1 ALC662
i5-6200FL2	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	2 Realtek	2-8	1	2 H	2 R+2 H	1 HDMI+1 DVI	2 MiniPCIe		5.1 ALC662
i5-6200L2B	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	2 Realtek	2-8	1	2 H	2 R+2 H	2 HDMI	2 MiniPCIe		5.1 ALC662
i5-6200SL	i5-6200u	Skylake-u	2 DDR3SO	Intel HD 520	1 Realtek	2-8	1	2 R+2 H	2 R+2 H	1 HDMI+1 DVI	2 MiniPCIe		5.1 ALC662
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	1	3 R	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	1	3 R	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
i2310	i7-6700HQ	QM170	2 DDR4SO	Nvidia GTX960M	1 Realtek	2	1	2 R	2 R+2 F	1 HDMI+1 DP+1 Type-C		TPM	Azalia Codec
i2311	6/7/8/9th Socket 1151	H310C	1 DDR4SO	Nvidia GT1030	1 Realtek\RTL8111H		1	2 H	4 R	1 HDMI+1 LVDS/H			5.1 ALC662
Slim-A320A	Socket AM4 Ryzen 3rd	AMD A320	2 DDR4SO	Radeon Vega	1 Realtek\RTL8111H	1-4/6/8	1	5 H	4 R	1 HDMI+1 LVDS/H			2.1 ALC269
U8A1 / U10A1	i5-10210u/i5-8259u	Comet Lake-u/Coffee Lake-u Platform SOC	2 DDR4SO	UHD 650/Iris Plus 655		1		2 H	4 R	HDMI+VGA/DP+LVDS/H			7.1 ALC897

Support Models

Your name *

Your email *

Inquiry *

Low Voltage Mini PC Matrix
Platform
Platform	Atom	J/N Series Celeron/Pentium		4th to 12th Gen. Socket-S / u-series Core i			NVIDIA	AMD	Other
Fanless	Z83E	Nano-N6400C	N4100D	Nano-8000FL2C	Nano-U10F	U12L2	G302F	Nano-A300G	236F3
Multi-Display	Nano-Z83-4	N4100V	J5005-NGC3	i63F	Nano-U8L2	Nano-U11C	i2314	V1807B-4HDMI	1U-12DP
RISER Slot	N2600-300R	J1900AE	J4105AE	Z690L2V4	Q370L3E2	H310AEL2	1750C-8DP	X570E	B560E
Multi LAN	2550L2D	Nano-J1900L4	J4125AEL2	H170L8-1U	HM170L4	H310L4	H110L2-K12	Nano-A320L2	C3338L4
Multi COM	525i6	J1900AC6	Nano-N6400L2C4	HM170AEL2	Nano-U8FL2C6	Z790L2	i2313	1750C-6DP	X58L2
Slim Series	Nano-Z83A	Nano-J1900D	Nano-N6005D	i63C	H610AL2	Nano-U12L2C	i2312	V4000-4HDMI	X55
Tiny Nano	Z83-Stick	Nano-N3350C	Nano-N3350D	SwapPC-U8S	Nano-U12C	Nano-U12P	i2311	NUC-A3000u	X10-mini
Special	SBC-Z83	Nano-J1900L2	Nano-N6400D	H610A	Nano-H510A	OPS-U11A	X299L2	H110-G330-6DP	POE-7000
