Processor
• 2 × AMD EPYC 9004/9005 series processors, up to TDP 210W
Chipset
None (AMD Turin PCH less architecture; all I/O provided by CPUs)
|
Memory
• 24 × DDR5 slots Max. Frequency 6000MT/s, Maximum capacity per DIMM: RDIMM 96 GB; 3DS RDIMM 256 GB
Storage
• 12 x Hot-swap 2.5" drive bays: 12 x U.2 PCIe 4.0 NVMe
|
Network
• 2 × 1GbE • 1 x 1GbE IPMI (BMC) by AST2600, Optional MicroSD slot for BMC log • 1 × OCP 3.0 PCIe 5.0 x16 (NCSI) slot supports Dual or Quad 1G/10G/25G/50G/100G/200G/400G Copper or Optical Ports
Expansion Slot
• 2 x PCIe 5.0 x 16 HHHL slots • 1 x PCIe 3.0 x 16 HHHL slot • 1 x OCP 3.0 PCIe 5.0 x 16 slot
|
Graphics
• Aspeed AST2600 BMC VGA
Back Panel I/O
• 2 x 1000Base-T Ethernet ports • 1 x 1000Base-T Dedicated Server Management port (AST2600 BMC for IPMI 2.0, supports Redfish) • 2 x USB 3.0 Type-A ports • 1 x VGA D-Sub port • 1 x COM Console RJ45 port • 1 x UID LED button
|
Front I/O
• 12 Hot-swap 2.5" U.2 drive bays (Front) • 1 x USB 3.0 Type-A port (Front) • 1 x USB 2.0 Type-A port (Front) • 1 x Power button with integrated LED (Front) • 1 x UID LED button (Front) • 1 x Reset button (Front) • 3 x Status LEDs: Fault/LAN/M.2 (Front)
BIOS
• AMI® • Watchdog Supported • TPM 2.0 (Infineon)
|
Chassis

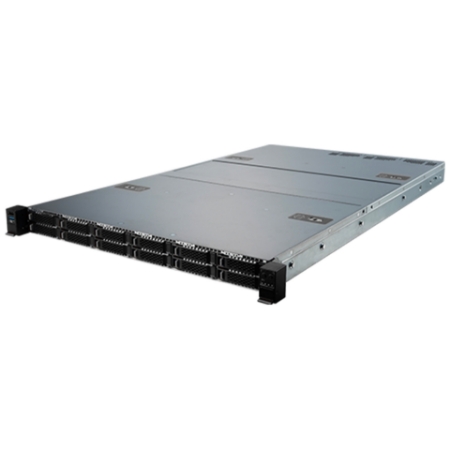

• 1U Rackmount with Front UID/LED • 12 x 2.5” NVMe U.2 4.0 • 4 x 8cm Cooling Fans • Dimensions: 438mm(17.2")W x 43.2mm(1.7")H x 770mm(30.3")D • System Weight: 38 lbs. (19kg) Net, 65 lbs. (28kg) Gross
Power Supply
• Dual 1300W (1+1) CRPS Redundant Platinum Level with PMBus • Output: Max 1300W, DC +12V/105.4A, +12Vsb/3A • Optional 2000W CRPS Titanium
|
OS Support
• Windows Server, Linux, FreeBSD, VMware
Applications
• For cloud computing services, content delivery networks, network function virtualization, 5G core and edge telecom micro data centers
|
Environment
• System Operating Temperature: 0°C ~ 35°C • Non-operating Temperature: -20°C ~ 70°C • Non-operating Relative Humidi
|
