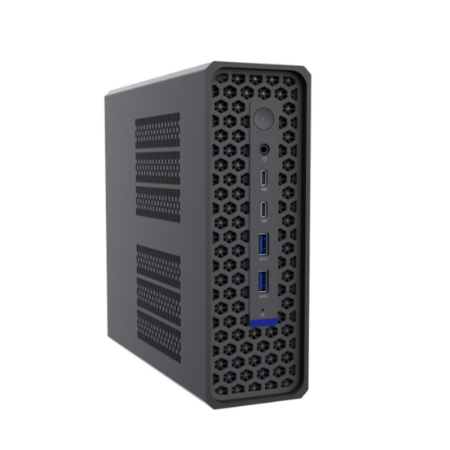

UC300L2V4M3 - Compact Mini UHD Digital Signage Player

Intel® Panther Lake Series, Intel® Arc™ GPU HDMI® + DP + 2 Thunderbolt 4, 2 LAN, 4 Display, 3 M.2 NVMe, Digital Signage Player PC

Featured Highlights
	Intel® Panther Lake Series
	Intel® Panther Lake Core Ultra Series 3
	Intel® ARC™ Graphics, HDMI®2.1+DP+2 Thunderbolt 4
	4 x LPDDR5x 8533Mhz, up to 64GB
	3 M.2 2280 KEY-M/SSD
	2 2.5G LAN, WiFi6+BT5.2
	2 USB 3.2, 2 USB 2.0, 2 Thunderbolt 4
	HD Audio
	DC20V 180W Power Adapter (UL/CE/FCC Certified)
	OS Support: Windows 11, Linux
	Applications: UHD Digital Signage Player, Kiosk, AI Edge, IoT, AI-IoT, Network Security, etc.

SKU: UC300L2V4M3

UC300L2V4M3

Intel® Panther Lake Series. This is a perfect compact PC for Digital Signage Player PC, POS/Kiosk, AI Edge, IoT, AI-IoT, Network Security and Mini PC etc. This PC tiny sized computer has impressive graphics with Intel® ARC™ Graphics,8K Resolution, HDMI+DP, and up to 64GB of dual-channel DDR5 memory.

Specifications
Request for Info

Product specifications

Processor • Intel® Panther Lake Series processors • Intel® Core™ Ultra X9-388H 16C/16T 2.1/5.1GHz 18M 25/80W • Intel® Core™ Ultra X9-378H 16C/16T 2.0/5.0GHz 18M 25/80W • Intel® Core™ Ultra 9-386H 16C/16T 2.1/4.9GHz 18M 25/80W • Intel® Core™ Ultra X7-368H 16C/16T 2.0/5.0GHz 18M 25/80W • Intel® Core™ Ultra X7-358H 16C/16T 1.9G/4.8GHz 18M 25/80W • Intel® Core™ Ultra 7-366H 16C/16T 1.9G/4.8GHz 18M 25/80W • Intel® Core™ Ultra 7-356H 16C/16T 1.9G/4.7GHz 18M 25/80W • Intel® Core™ Ultra 5-338H 12C/12T 1.9G/4.7GHz 18M 25/65W • Intel® Core™ Ultra 5-336H 12C/12T 1.9G/4.6GHz 18M 25/65W • Intel® Core™ Ultra 7-365 8C/8T 2.4G/4.8GHz 12M 25/55W • Intel® Core™ Ultra 7-355 8C/8T 2.3G/4.7GHz 12M 25/55W • Intel® Core™ Ultra 5-335 8C/8T 2.2G/4.6GHz 12M 25/55W • Intel® Core™ Ultra 5-325 8C/8T 2.1G/4.5GHz 12M 25/55W • Intel® Core™ Ultra 5-332 6C/6T 2.5G/4.4GHz 12M 25/55W • Intel® Core™ Ultra 5-322 6C/6T 2.5G/4.4GHz 12M 25/55W Chipset • Intel® Panther Lake Core Ultra Series 3
Graphics • Intel® Arc™ Graphics, 8K Resolution • 1 x HDMI® 2.1, supporting a maximum resoltion of 8K @60Hz • 1 x DP, supporting a maximum resolution of 8K @60Hz • 2 x Thunderbolt 4, supporting a maximum resolution of 8K @60Hz Memory • 4 x LPDDR5x • 8533MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 64GB
Network • 1 x RTL8125K 2.5Gigabit (10/100/1000/2500 Mb/s) LAN • 1 x RTL8125K 2.5Gigabit (10/100/1000/2500 Mb/s) LAN , Optional RTL8127 10Gigabit • Integrated Intel® AX201 WiFi6/BT5.2 • Wake on LAN, PXE boot (Diskless) supported Expansion Slot • 1 x M.2 2280 (for PCIe Gen5 x4 NVMe SSD) • 2 x M.2 2280 (for PCIe Gen4 x4 NVMe SSD) • 1 x M.2 2230 Standard Wi-Fi/BT module
Storage • 1 x M.2 2280 (for PCIe Gen5x4 NVMe SSD) • 2 x M.2 2280 (for PCIe Gen4x4 NVMe SSD) Audio • HD Audio • 1 x 3.5mm Analog Stereo Audio jack
Back Panel I/O • 2 x USB 2.1 ports • 2 x RJ45(2 x 2.5G or 2.5G+10G option) • 1 xThunderbolt 4(support 40G, DP and PD OUT 15W) • 1 x DP (8K60Hz) • 1 x HDMI® 2.1 port (8K60Hz) • 1 x Oculink (optional) Other I/O • 2 x USB 3.2 Gen2 ports (Front) • 1 x Thunderbolt 4(support 40G, DP and PD OUT 15W) (Front) • 1 x 3.5mm Audio jack (Front)
System BIOS • AMI® UEFI 64MBit Chassis • Chassis size: 205 x 192 x 70mm • Color: Black or Silver as default color, custom colors available with special order • Supports VESA/wall mount brackets
Power Supply • Power: DC20V 180W Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 11, IoT, Linux
Applications • Digital Signage, Kiosk, Edge AI, IoT, AI-IoT, Network Security, etc. Environment • Operating Temperature: -5~-20 to +40~+60 C (Please contact product specialist for details) • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified
