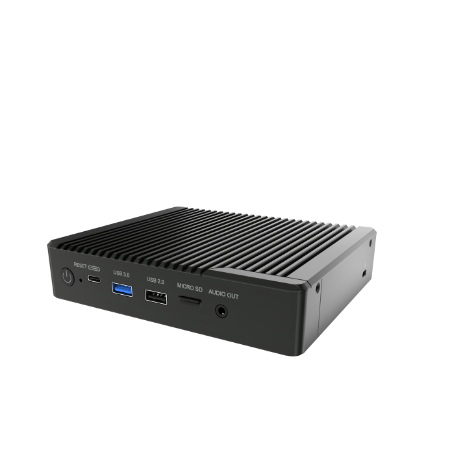

X55-2HDMI - ARM for Android or Linux with Dual HDMI

2 HDMI + DP, Gigabit LAN+WiFi/BT, 16GB/32G eMMC+TYPE-C+TF Slot

Featured Highlights
	ARM® Cortex®-A55 Processor
	RK3568 SoC
	Mali™-G52-2EE GPU, 2 HDMI 2.0, 1 DP
	4GB/8GB Onboard DDR4 Memory
	16GB/32GB eMMC, TF slot
	Gigabit LAN, M.2 Key E 2230 Wireless
	1 USB 2.0, 1 USB 3.0, 1 TYPE-C
	HD Audio Sound
	Power Supply: DC12V 2A Power Adapter (UL/CE/FCC Certified)
	OS Support: Android 11, Linux.
	Applications: AI-IoT, Network Security, Digital Signage, Kiosk, POS, IPTV, Entertainment, Audi Player, Digital Home, IoT, etc.

SKU: X55-2HDMI

X55-2HDMI

X55-2HDMI is based on Rockchip RK3568 platform design, which equips with Quad-core Cortex-A55 up to 2.0GHz processor and 4K display solution for conference solution, an ideal Digital Signage, KIOSK and Bank Information Release solution.

Specifications
Request for Info

Product specifications

Processor • ARM® Cortex®-A55 4Core up to 1.80GHz Chipset • Rockchip RK3568 (SOC)
Graphics • ARM® Mali™-G52 EE 4Core Graphics Processor • 1 x HDMI®-Out 4K @60Hz Graphics port • 1 x DP-Out 1920x1080 @60Hz Graphics port • 1 x HDMI®-In 1920x1080 @60Hz Graphics port Memory • 4GB/8GB DDR4 (built-in, non-changeable)
Network • Gigabit (10/100/1000 Mb/s) LAN • WIFI-6 802.11 a/b/g/n/ac/ax • Bluetooth 5.2 Storage • 16GB/32GB eMMC 5.1 • 1 x TF (microSD 3.0) slot, supports 1TB
Audio • 1 x Audio Out Back Panel I/O • 1 x Mini DP port • 1 x LAN ports • 2 x HDMI® 2.0 port • 1 x DC12V-In 2.5/5.5mm Power Connector
System BIOS • AMI® UEFI BIOS • 32KB EEPROM • Watchdog supported Chassis • Nano-LX series Aluminum Fanless Enclosure • Dimensions: 5.95"(W) x 5.00"(D) x 1.18"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets
Power Supply • Power: DC12V 2A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Android 11, Linux.
Application • AI-IoT, Digital Signage, Kiosk, POS, IPTV, IoT, Digital Home, Entertainment, Audio Player, etc. Environment • Operating Temperature: 0 to +40 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified • TAA Compliance SKU available

Your name *

Your email *

Inquiry *

Product specifications

Processor • ARM® Cortex®-A55 4Core up to 1.80GHz Chipset • Rockchip RK3568 (SOC)
Graphics • ARM® Mali™-G52 EE 4Core Graphics Processor • 1 x HDMI®-Out 4K @60Hz Graphics port • 1 x DP-Out 1920x1080 @60Hz Graphics port • 1 x HDMI®-In 1920x1080 @60Hz Graphics port Memory • 4GB/8GB DDR4 (built-in, non-changeable)
Network • Gigabit (10/100/1000 Mb/s) LAN • WIFI-6 802.11 a/b/g/n/ac/ax • Bluetooth 5.2 Storage • 16GB/32GB eMMC 5.1 • 1 x TF (microSD 3.0) slot, supports 1TB
Audio • 1 x Audio Out Back Panel I/O • 1 x Mini DP port • 1 x LAN ports • 2 x HDMI® 2.0 port • 1 x DC12V-In 2.5/5.5mm Power Connector
System BIOS • AMI® UEFI BIOS • 32KB EEPROM • Watchdog supported Chassis • Nano-LX series Aluminum Fanless Enclosure • Dimensions: 5.95"(W) x 5.00"(D) x 1.18"(H), Weight: 1.5 lb. (Net) 5 lb. (gross with packaging) • Color: Black or Silver as default color, custom colors available with special order • Supports VESA, wall mount or rackmount brackets
Power Supply • Power: DC12V 2A Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Powered by PoE supported • Energy Star Compliance, Idle mode at <1W OS Support • Android 11, Linux.
Application • AI-IoT, Digital Signage, Kiosk, POS, IPTV, IoT, Digital Home, Entertainment, Audio Player, etc. Environment • Operating Temperature: 0 to +40 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • FCC, CE, RoHS Certified • TAA Compliance SKU available
