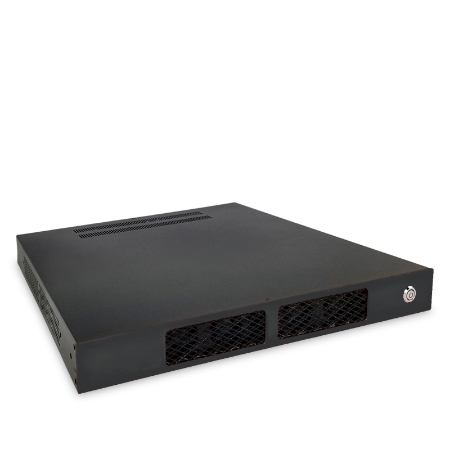

1U-1000D

5.25"CD/swap

Featured Highlights
	Dimensions: 17.2"(W) x 12.9"(D) x 1.75"(H)
	Mini 1U Chassis with custom front panel for OEM customers
	1 or 2 full height RISER Slots, Custom Back Panel for different MB
	Optional 2 x 2.5" Hot Swap Drive Bay or 5.25" Drive bay, up to 2 x 2.5" or 1 x 3.5" internal drive bay
	Supports Mini-ITX Form Factor(171mm X 171mm) MB
	Up to 500W mini 1U AC Power Supply, optional redundant PSU
	Steel+Aluminum, Weight: 13 Lbs
	Color: Black (Custom colors available with special order)
	OS support: Windows Server, Windows IoT, Linux: CentOS, FreeBSDs.
	Applications: ISP Server, Network Appliance, AI Edge, Business Server.

SKU: 1U-1000D

Supported Models
Request for Info

Model	Processor	Chipset	Memory	Graphics	Network	USB2.0	USB3.0	Ports	Expansion	OtherIO	Audio

C246L8	Xeon E-2200 (1151pin)	C246	4 DDR4 128G/2Ch	Aspeed AST2500	8xGbit Intel i210	2 R+2 H	2 R+2 H	IPMI 2.0	1x16	TPM	7.1 ALC892
C246L2	Xeon E-2200 (1151pin)	C246	4 DDR4 128G/2Ch	Intel UHD P630	2xGbit Intel i210	2 R	4 R+2 H	IPMI 2.0	1x16	6H	7.1 ALC892
C242L2	Xeon E-2200 (1151pin)	C242	4 DDR4 128G/2Ch	Aspeed AST2500	2xGbit Intel i210	2 R+2 H	2 R+3 H	IPMI 2.0	1x16	TPM+GPIO	7.1 ALC892
C236FL2	Xeon Socket-S 1151pin	C236	2 DDR4	Intel HD	2 RJ45	4 F+4 R	4 F+4 R	1 DP+1 HDMI+1 VGA	2 MiniPCIe+2 PCIe 8x+2 PCI	2 MXM3.0	5.1 ALC662
X-D2123T	D-2123IT	Skylake-D	4 DDR4	Aspeed AST2500	2 Intel\X557+1 IPMI	2 H	2 R	1 VGA	1 PCIe 8x+1 OCuLink	TPM	TPM
X-D2123TPL4	D-2123IT	Skylake-D	4 DDR4	Aspeed AST2500	4 Intel\I350-AM4+1 IPMI	2 H	2 R	1 VGA	1 PCIe 16x+1 PCIe 8x	TPM	TPM
C3338L4	Atom-C (BGA-1310)	Denverton C3000	2 DDR4 128G/1Ch	Aspeed AST2400	4x1Gbit Intel LAN	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
C3558L4	Atom-C (BGA-1310)	Denverton C3000	4 DDR4 256G/2Ch	Aspeed AST2400	4x1Gbit Intel LAN	2 R	1 H	IPMI 2.0 (AST2400)	1x4 3.0	TPM	option
C3758L4/C3758T	C3758	Denverton	4 DDR4	Aspeed AST2400	4 Intel+1 IPMI	2 R	1 H	1 VGA	PCIe 4x	TPM	option
X299L2	Socket 2066 Core X-Series	X299	4 DDR4	Various	1 Intel\i219V+1 Intel\i211AT+11ac WiFi/BT	5 R+2 H	5 R+2 H	1 HDMI+1 DP	PCIe 16x	TPM	7.1 ALC1220
B560E	10/11th Socket 1200	B560	2 DDR4	Intel UHD 750	1 Intel\i219V+11ac WiFi/BT	2 R+2 H	2 R+2 H	1 HDMI+1 DP1.4	PCIe 16x	1xPS/2	7.1 ALC897
H470x	11th/10th Socket 1200	H470	4 DDR4	Intel UHD	1 Intel\i219V	2 R+2 H	3 R+4 H	1 HDMI+1 DP+1 VGA	2 PCIe 16x+2 PCIe 1x	TPM+1xPS/2	7.1 ALC1200
H310L4	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	4 Intel\i211	4 H	2 R+2 F	1 VGA	MiniPCIe+PCIe 4x	GPIO	5.1 ALC662
H310AEL2	8/9th Socket 1151	H310 Q370	2 DDR4SO	Intel UHD 630	2 Intel\i211	4 R+2 H	2 R+2 F	1HDMI+1DP+1VGA/H+1LVDS/H	PCIe 4x	TPM	5.1 ALC662
H310A	8/9th Socket 1151	H310C	2 DDR4SO	Intel UHD 630	1 Realtek	2 R+5 H	2 R+2 H	1 HDMI+1 DP+1 LVDS		TPM	7.1 ALC887
H8100L2/H8100L3	Socket 1150 Haswell	H81	2 DDR3	Intel HD 5000	2 Realtek	4 R+1 H	2 R	1 HDMI+1 DVI+1 VGA	1 MiniPCIe+PCIe 16x	1xPS/2	5.1 ALC662
B8500L4/H8100L4	Socket 1150 Haswell	B85	4 DDR3	Intel HD 5000	4 Intel\i350	4 H	2 R	1 HDMI+1 DP+1 VGA	1 MiniPCIe+PCIe 8x	TPM	5.1 ALC662
HM170L2/AEL2	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
HM170L4	i5-6300HQ	HM170	2 DDR4SO	Intel HD 530	1 RJ45+option:1 RJ45	2 H+2 H/R	2 R+4 H	1 DP/H+1 HDMI+1 VGA+1 LVDS/H	1x MiniPCIe+1x PCIe 3.0x16	1xPS/2/H+TPM+GPIO	5.1 ALC662
J4125 - J5040AEL2	J4105	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek+1 Intel	1 R+4 H	2 R	1 HDMI+1 DP+1 eDP/H+1 LVDS/H	PCIe x2, 2 M.2m, MiniPCIe full size	GPIO	5.1 ALC662
J5040/J4125AE	J4005	Gemini Lake	2 DDR4SO	Intel UHD 600	1 Realtek	3 R+4 H	2 R	1 HDMI+1 DP+1 eDP+1 LVDS	PCIe 2x	GPIO	5.1 ALC662
J1900AEL2	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	2 Realtek\RTL8111F	2 R+2 H	1 R	2 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662 7.1 ALC892
J1900AE	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	4 R + 3H	1 R	1 HDMI+1 VGAH+1 LVDS/H	MiniPCIe-F+PCIe 1x	GPIO	5.1 ALC662
J1900AC6	J1900	Bay Trail	1 DDR3SO	7th Gen. HD	1 Realtek	3 R+1 F+2 H	1 R	1 HDMI+1 VGA+1 LVDS/H	MiniPCIe-F	TPM+1xPS/2/H	5.1 ALC662
i2311	6/7/8/9th Socket 1151	H310C	1 DDR4SO	Nvidia GT1030	1 Realtek\RTL8111H	2 H	4 R	1 HDMI+1 LVDS/H			5.1 ALC662
