J5040/J4125AE - 4K Fanless Intelligent Industrial PC with Expansion PCIe Slot

Gemini Lake Family, Intel® UHD 600 4K Graphics, DP + HDMI, PCIe x2 + 2 M.2 slots + Mini PCIe + SIM, PCIe expansion slot

Featured Highlights
	Intel® Celeron® / Pentium® Silver Processor
	Intel® Gemini Lake Platform (SoC)
	Intel® UHD 600 Graphics, HDMI + DP + eDP + LVDS
	2 x DDR4 SO-DIMM, up to 8 GB
	PCI Express 3.0 x2 slot, PCIe expansion slot
	Gigabit LAN, M.2 Wi-Fi + Mini PCIe 4G-LTE with SIM
	2 x USB 3.0, 7 x USB 2.0
	SATA 6 Gb/s, M.2 2280 SATA SSD
	5.1 Audio, Realtek® ALC662
	Power: DC12V 3A (36 W)
	OS Support: Windows 10, IoT, Linux
	Applications: AI-IoT, digital signage, POS/kiosk, etc.

In Stock

SKU: J5040/J4125AE

J5040/J4125AE

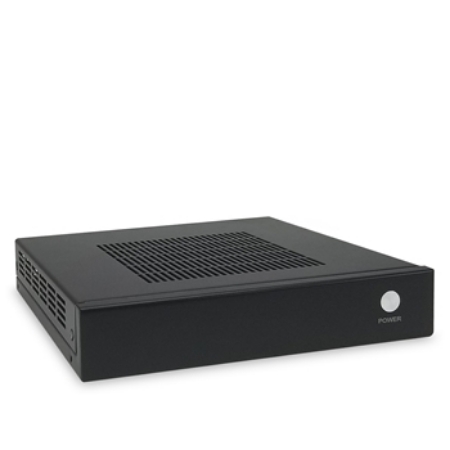

The J5040/J4125AE is a fanless 4K industrial Mini PC built on the Intel® Gemini Lake platform with Intel® UHD 600 graphics, DP + HDMI output and dedicated eDP/LVDS headers. It pairs a PCIe x2 slot with 2 M.2 slots, Mini PCIe and a SIM socket for 4G-LTE — a rugged embedded computer for digital signage, Edge AI, OpenVINO, audio/video playback, AI-IoT and industrial control.

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® J4125 2.0/2.7GHz 4Core 4Threads 4M 10W • Intel® Pentium® Silver J5040 2.0/3.2GHz 4Core 4Threads 4M 10W • Intel® Celeron® J4005 2.00/2.70GHz 2Core 2Threads 4M 10W • Intel® Celeron® J4105 1.50/2.50GHz 4Core 4Threads 4M 10W • Intel® Celeron® J4025 2.00/2.90GHz 2Core 2Threads 4M 10W • Intel® Pentium® Silver N5030 1.10/3.10GHz 4Core 4Threads 4M 6W • Intel® Celeron® N4120 1.10/2.60GHz 4Core 4Threads 4M 6W • Intel® Celeron® N4020 1.10/2.80GHz 2Core 2Threads 4M 6W Chipset • Intel® Gemini Lake Platform (SoC)
Graphics • Intel® UHD 600 Graphics • 1 x HDMI®, supporting a maximum resolution of 3840x2160 30Hz Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DP 4K 60Hz Graphics port • 1 x eDP header • 1 x LVDS header Memory • 2 x DDR4 SO-DIMM • 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 8GB
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Wi-Fi + Bluetooth module) • 1 x Mini PCIe full-size slot (for 4G-LTE modem or Movidius™ Myriad™ X) • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (diskless) supported • Option: additional Gigabit LAN via USB LAN module Expansion Slot • 1 x PCI Express 3.0 x2 slot • 1 x M.2 2230 (for Wi-Fi + Bluetooth or other module) • 1 x M.2 2280 (for SATA 6 Gb/s SSD) • 1 x Mini PCIe full-size slot (for 4G-LTE modem or Movidius™ Myriad™ X)
Storage • 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA SSD) • 32/64/128GB eMMC Flash Internal Storage Audio • Realtek® ALC662 6-channel (5.1) • 2 x 3.5mm Analog Stereo Audio jacks
Back Panel I/O • 2 x USB 3.0 ports • 3 x USB 2.0 ports • 1 x HDMI® port • 1 x DP • 1 x LAN port • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector Internal I/O • 4 x USB 2.0 headers • 2 x Serial COM headers • 1 x eDP header • 1 x LVDS header
Function • 1 x 4in/4out GPIO header System BIOS • AMI® UEFI BIOS • Watchdog supported
Systemboard • Small Form Factor • Back I/O Chassis • 138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7"(W) x 7.2"(D) x 1.38"(H), Weight: 3 lb(Net) 10 lb(gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • Option: Slim 10a Series 1.4" Slim • Option: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with riser Slot
Power Supply • Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified) • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W OS Support • Windows 10, IoT, Linux
Applications • AI-IoT, Digital Signage, POS/Kiosk, etc. • Embedded-Longevity Environment • Operating Temperature: 0 °C to +55 °C • Non-Operating Temperature: -20 °C to +70 °C • Vibration - Operating: 9.8 m/s² (1.0G), 5 to 500 Hz • Vibration - Non-Operating: 49 m/s² (5.0G), 15 to 500 Hz • Shock - Operating: 3,920 m/s² (400G), 2 ms • Shock - Non-Operating: 8,820 m/s² (900G), 1 ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-Operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 hours
