Processor
• Intel® Celeron® J4105 1.50/2.50GHz 4Core 4Threads 4M 10W • Intel® Pentium® J5005 1.50/2.80GHz 4Core 4Threads 4M 10W • Intel® Pentium® Silver J5040 2.00/3.20GHz 4Core 4Threads 4M 10W • Intel® Celeron® J4125 2.00/2.70GHz 4Core 4Threads 4M 10W • Intel® Celeron® J4025 2.00/2.90GHz 2Core 2Threads 4M 10W • Intel® Pentium® Silver N5030 1.10/3.10GHz 4Core 4Threads 4M 6W • Intel® Celeron® N4120 1.10/2.60GHz 4Core 4Threads 4M 6W • Intel® Celeron® N4020 1.10/2.80GHz 2Core 2Threads 4M 6W
Chipset
• Intel® Gemini Lake Platform (SOC)
|
Graphics
• Intel® UHD 600 Graphics • 1 x HDMI® 2.0, supporting a maximum resolution of 4096x2160 60Hz Supports HDCP 2.2 • 1 x DP 1.2, 4K 60Hz Graphics port • 1 x eDP header • 1 x LVDS header
Memory
• 2 x DDR4 SO-DIMM • 2666/2400/2133MHz unbuffered non-ECC (Dual Channel I/O) • Supports up to 8GB (Optional 16GB for special order with MOQ)
|
Network
• 1 x Realtek® RTL8111H Gigabit (10/100/1000 Mb/s) LAN • 1 x Intel® I211 Gigabit (10/100/1000 Mb/s) LAN • 1 x M.2 2230 socket (Taken by WiFi+BT Module) • 1 x MiniPCIe full size slot (for 4G-LTE modem or Movidius™ Myriad™ X) • 1 x SIM socket (for 3G/4G-LTE option) • Wake on LAN, PXE boot (Diskless) supported • Additional LAN by add-on PCIe Card or M.2 or miniPCIe adapter or USB adapters
Expansion Slot
• 1 x PCI Express 3.0 x2 slot • 1 x M.2 2230 (for WiFi+BT or Other Module) • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) • 1 x MiniPCIe full size slot (for 4G-LTE modem or Movidius™ Myriad™ X)
|
Storage
• 1 x SATA 6Gb/s • 1 x M.2 2280 (for SATA-6Gb/s or PCIe x4 NVMe) • 32/64/128GB eMMC Flash Internal Storage
Audio
• Realtek® ALC662 6-channel (5.1) • Cmedia® CM119B Audio Sound for J5040 SKU • 2 x 3.5mm Analog Stereo Audio jacks
|
Back Panel I/O
• 2 x USB 3.0 ports • 1 x USB 2.0 port • 1 x HDMI® 2.0 port • 1 x DP 1.2 • 2 x LAN ports • 2 x 3.5mm Audio jacks • 1 x DC-In 2.5mm Power Connector
Internal I/O
• 4 x USB 2.0 headers • 2 x RS232 Serial COM Headers • 1 x LVDS header • 1 x eDP header
|
Function
• Optional 1 x 4in/4out GPIO header for J4125 SKU
System BIOS
• AMI® UEFI BIOS • Watchdog supported
|

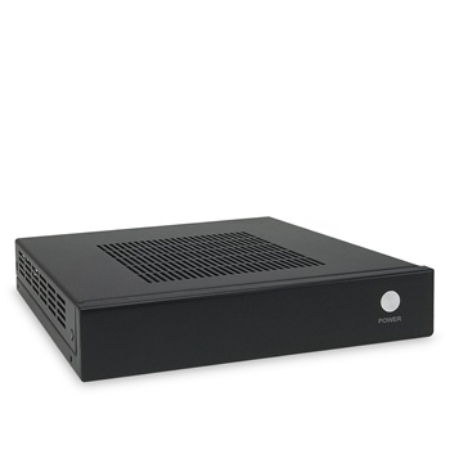

Chassis
• 138D Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 7"(W) x 7.2"(D) x 1.38"(H), Weight: 3 lb(Net) 10 lb(gross with packaging) • Cooling: Slim CPU Fan with Heatsink • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • Option: Slim 10a Series 1.4" Slim • Option: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot
|
Power Supply
• Power: DC12V 3A 36W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W
OS Support
• Stratodesk NoTouch OS
|
Applications
• AI-IoT, Network Appliance, Digital Signage, POS/Kiosk, IP/PBX, IoT/Edge System, etc.
• Embedded-Longevity
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
|
