Think Big. Go Small. Eco-Smart Computing

NUC-N100V4c Alder Lake-N 4K Mini Digital Signage PC

12th Gen Alder Lake-N UHD Graphics, 4 Display: 2 HDMI® 2.0 + 2 Type-C, LAN+ 4USB, M.2 SSD + M.2 SATA
Featured Highlights
  Intel® N-Series Processor
  Intel® Alder Lake-N Platform (SOC)
  Intel® UHD Graphics, 2 HDMI® 2.0 + 2 Type-C (DP/HDMI®)
  2 DDR4-SO, up to 32GB Memory
  M.2 2280 NVMe/SSD + M.2 2242 SATA/SSD
  1 Gigabit LAN, WiFi6/BT5.2
  2 USB 3.1, 2 USB 2.0
  HD Audio
  DC12V Power Adapter (UL/CE/FCC Certified)
  OS Support: Windows 11/10, Linux
  Applications: Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.




SKU: NUC-N100V4c

NUC-N100V4c

features 12th Gen. Alder Lake-N, UHD Graphics, 4 Display, LAN, 4 USB, up to 32GB Memory. This is a Alder Lake-N 4K Mini Digital Signage PC. This Fanless System is Perfect for Digital Signage, Edge AI, Audio/Video PC, Set Top Box.

Product specifications
Processor

• Intel® N100 3.40GHz 4Cores 4Threads 6M 6W
• Option:
• Intel® N97 3.60GHz 4Cores 6M 12W
• Intel® N50 3.40GHz 2Cores 6M 6W
• Intel® N95 3.40GHz 4Cores 4Threads 6M 15W
• Intel® N200 3.70GHz 4Cores 4Threads 6M 6W
• Intel® Core™ i3-N300 3.80GHz 8Cores 8Threads 6M 7W
• Intel® Core™ i3-N305 3.80GHz 8Cores 8Threads 6M 15W
• Intel® Atom® x7213E 3.20GHz 2Cores 6M 10W
• Intel® Atom® x7211E 3.20 GHz 2Cores 6M 6W
• Intel® Atom® x7425E 3.40 GHz 4Cores 6M 12W

Chipset

• Intel® Alder Lake-N Platform (SOC)

Graphics

• Intel® UHD Graphics
• 2 x HDMI® 2.0, supporting a maximum resolution of 4K @60Hz
• 2 x Type-C  (DP/HDMI®)

Memory

• 2 x DDR4 SO-DIMM
• 3200MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 32GB

Network

• 1 x Realtek® RT8111H Gigabit (10/100/1000 Mb/s) LAN
• Onboard WiFi6/BT5.2
• 1 x M.2 2230 (Taken by WiFi/BT Module)
• Wake on LAN, PXE boot (Diskless) supported
• Option: additional Gigabit LAN can be added by USB LAN module

Expansion Slot

• 1 x M.2 2230 (for WiFi/BT or Other Module)
• 1 x M.2 2242 (for SATA-6Gb/s SSD)
• 1 x M.2 2280 (for PCIe NVMe SSD)

Storage

• 1 x M.2 2242 (for SATA-6Gb/s SSD)
• 1 x M.2 2280 (for PCIe NVMe SSD)

Audio

• Realtek® ALC269
• 1 x 3.5mm Analog Stereo Audio jack

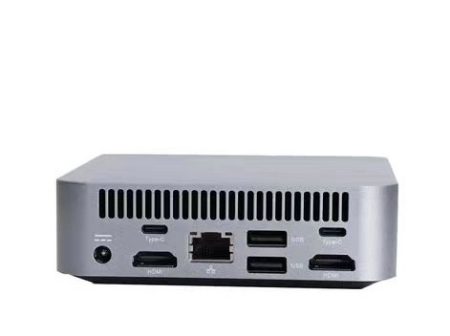

Back Panel I/O

• 1 x LAN port
• 2 x HDMI® 2.0 ports
• 2 x Type-C ports (Supports DP/HDMI®)
• 2 x USB 2.0 ports
• 1 x DC-In Power Connecter

Other I/O

• 2 x USB 3.2 ports (Front)
• 1 x Audio jack (Front)

System BIOS

• AMI® BIOS

Chassis

• NUC Enclosure
• Dimensions: 4.42"(W) x 4.42"(D) x 1.46"(H), Weight: 1 lbs., Gross: 5 lbs.
• Color: Silver and Dark Grey as default colors, custom colors available with special order
• Supports VESA/wall mount brackets

Power Supply

• Power: DC12V 3A Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support

• Windows 11/10, Linux

Application

• Digital Signage, Edge AI, Home / Office Mini PC, Set Top Box, Entertainment PC, etc.

Environment

• Operating Temperature: -5 to +60 C (Please contact product specialist for details)
• Non operating temperature: -20 to 70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• FCC, CE, RoHS Certified

*
*
*
