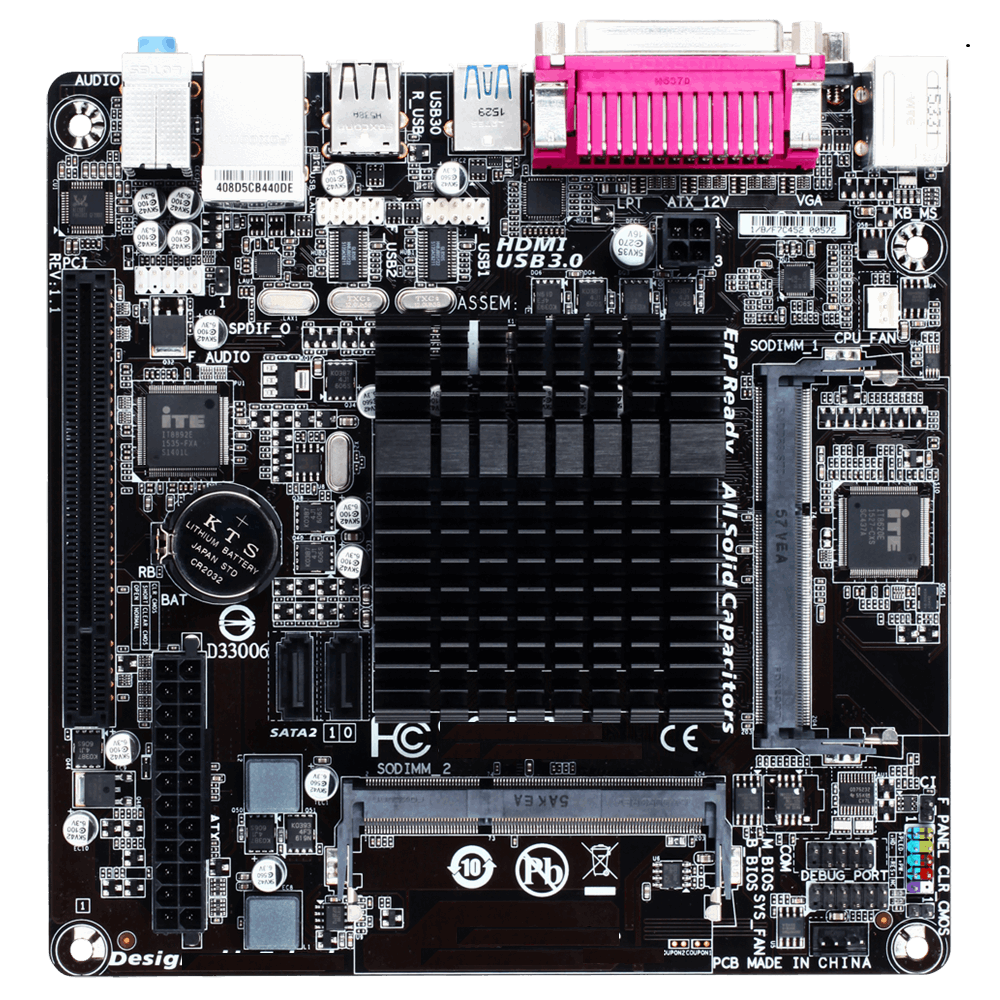

J1900P

Intel® Celeron® J1900, HDMI+DVI, 2 COM+2 SATA, PCI

Featured Highlights
	Intel® Celeron® J1900 Processor
	Intel® Bay Trail Platform (SOC)
	Intel® HD Graphics 1920x1080, HDMI+DVI+VGA
	2 x DDR3L SO-DIMM for up to 8GB Memory
	PCI
	Realtek® Gigabit LAN
	1 USB 3.0, 8 USB 2.0
	2 x SATA-6Gb/s
	7.1 ALC887 Audio Sound
	Power Supply: ATX input
	OS Support: Windows 7, Windows 8, Windows 10, IoT, Linux
	Applications: AI-IoT, Digital Signage, POS/Kiosk, Surveillance, AV Player, etc.

Starts at: $199.00

SKU: J1900P

Specifications
Request for Info

Product specifications

Processor • Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W Chipset • Intel® Bay Trail Platform (SOC)
Graphics • Intel® 7th Generation HD Graphics 1080p 2K Resolution • Support 3 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DVI Port • 1 x VGA Port Memory • 2 x DDR3L SO-DIMM • 1600/1333MHz unbufferred non-ECC (Dual Channel I/O) • Supports up to 8GB
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x Optional PCI Slot by PCIe to PCI converter
Storage • 2 x SATA 6Gb/s Audio • Realtek® ALC887 8-channel (7.1) • Internal audio, S/PDIF headers • 3 x 3.5mm analog stereo audio jacks

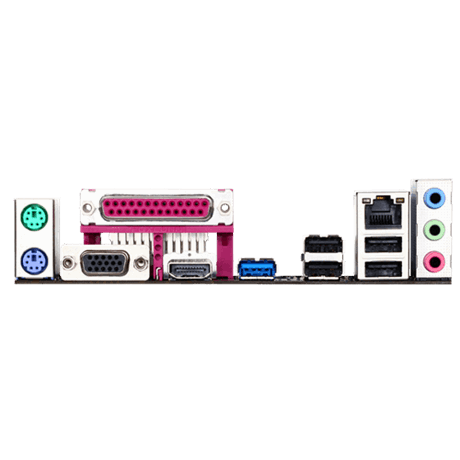

Back Panel I/O • 1 x USB 3.0 Port • 4 x USB 2.0 Ports • 1 x HDMI® port • 1 x DVI port • 1 x VGA port • 1 x LAN port • 3 x 3.5mm jack • 2 x PS/2 Ports for Keyboard and Mouse Internal I/O • 4 x USB 2.0 Headers • 2 x Serial COM Headers • 1 x S/PDIF header • 1 x Parallel Port header
System BIOS • AMI® UEFI BIOS Systemboard • Small Form Factor • Back I/O

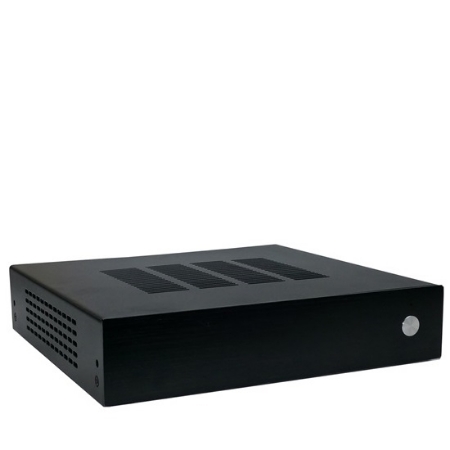

Chassis • 175C Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 1.75(H) x 8.1(W) x 8(L) inch, Weight: 3 lb(Net) 10 lb(gross with packaging) • Drive Bay: One 2.5" HD/Solid State Drive Bay • Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • 175C Case 1.75" H 175F Fanless 1.75" H • Option: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot • Option: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5" Power Supply • 100-240V ATX AC Power connector input • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 7, Windows 8, Windows 10, IoT, Linux Applications • AI-IoT, Digital Signage, POS/Kiosk, Surveillance, AV Player, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance

Your name *

Your email *

Inquiry *

Product specifications

Processor • Intel® Celeron® J1900 2.00/2.42GHz 4Core 4Threads 2M 10W Chipset • Intel® Bay Trail Platform (SOC)
Graphics • Intel® 7th Generation HD Graphics 1080p 2K Resolution • Support 3 Graphics ports • 1 x HDMI® , supporting a maximum resolution of 1920x1080 Support for HDMI® 1.4 version and HDCP 2.2 • 1 x DVI Port • 1 x VGA Port Memory • 2 x DDR3L SO-DIMM • 1600/1333MHz unbufferred non-ECC (Dual Channel I/O) • Supports up to 8GB
Network • 1 x Realtek® Gigabit (10/100/1000 Mb/s) LAN • Wake on LAN, PXE boot (Diskless) supported • Option: additional Gigabit LAN can be added by USB LAN module Expansion Slot • 1 x Optional PCI Slot by PCIe to PCI converter
Storage • 2 x SATA 6Gb/s Audio • Realtek® ALC887 8-channel (7.1) • Internal audio, S/PDIF headers • 3 x 3.5mm analog stereo audio jacks
Back Panel I/O • 1 x USB 3.0 Port • 4 x USB 2.0 Ports • 1 x HDMI® port • 1 x DVI port • 1 x VGA port • 1 x LAN port • 3 x 3.5mm jack • 2 x PS/2 Ports for Keyboard and Mouse Internal I/O • 4 x USB 2.0 Headers • 2 x Serial COM Headers • 1 x S/PDIF header • 1 x Parallel Port header
System BIOS • AMI® UEFI BIOS Systemboard • Small Form Factor • Back I/O
Chassis • 175C Small Form Factor with aluminum panel, Convertible to 1U Rackmount • Dimensions: 1.75(H) x 8.1(W) x 8(L) inch, Weight: 3 lb(Net) 10 lb(gross with packaging) • Drive Bay: One 2.5" HD/Solid State Drive Bay • Cooling: Slim CPU Fan with Heatsink, Fanless option available with 300F Chassis • Color: Black as default color, option: Gun Grey, Silver, Gold. Other custom color available • Supports VESA, wall mount or rackmount brackets • 175C Case 1.75" H 175F Fanless 1.75" H • Option: 300B Aluminum 2.1" H 300A w/Slim DVD Bay 300R with RISER Slot • Option: 400B Aluminum 2.6" H 400A w/Slim DVD Bay 400R with RISER Slot 400S Swap Bay 2x2.5" Power Supply • 100-240V ATX AC Power connector input • Power Cord: Standard US Power Cord included, European Power Cord available as option • Energy Star Compliance, Idle mode at <1W
OS Support • Windows 7, Windows 8, Windows 10, IoT, Linux Applications • AI-IoT, Digital Signage, POS/Kiosk, Surveillance, AV Player, etc.
Environment • Operating Temperature: 0 to +55 C • Non operating temperature: -20 to +70 C • Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz • Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz • Shock - Operating: 3,920 m/s2 (400G) 2ms • Shock - Non-Operating: 8,820 m/s2 (900G) 1ms • Operating Relative Humidity: 8% to 90% (non-condensing) • Non-operating Relative Humidity: 5% to 95% (non-condensing) • MTBF: 100,000 Hours • RoHS Compliance
