Think Big. Go Small. Eco-Smart Computing

2550L2D-MxPC

Intel Atom D2550, HDMI, VGA, 2 LAN, COM, 2 SATA, PCIe 1x
Featured Highlights
Intel® Atom™ D2550 Processor
Intel® NM10 Express Chipset
Intel® integrated 640MHz HD 3650 Graphics, HDMI+VGA
2 x DDR3 SO-DIMM for up to 4GB Memory
PCIe 1x
2 Broadcom® Gigabit LAN
2 USB 3.0, 6 USB 2.0
2 x SATA-6Gb/s
5.1 ALC662 Audio Sound
Power Supply: DC12V input
OS Support: Windows XP, Windows 7, IoT, Linux
Applications: Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.

Starts at: $199.00
SKU: 2550L2D-MxPC
Product specifications
Processor
• Intel® Atom® D2550 1.86GHz 2Core 4Threads 1M 10W
Chipset
• Intel® NM10 Express Chipset
Graphics
• Intel® integrated 640MHz HD 3650 Graphics
• Support 2 Graphics ports
• 1 x HDMI® , supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI® 1.4 version and HDCP 2.2
• 1 x VGA Port
Memory
• 2 x DDR3 SO-DIMM
• 1600/1333MHz unbuffered non-ECC (Single Channel I/O)
• Supports up to 4GB
Network
• 2 x Broadcom® Gigabit (10/100/1000 Mb/s) LAN
Expansion Slot
• 1 x PCI Express 3.0 1x slot
Storage
• 2 x SATA 6Gb/s
Audio
• Realtek® ALC662 6-channel (5.1)
• Internal audio, S/PDIF headers

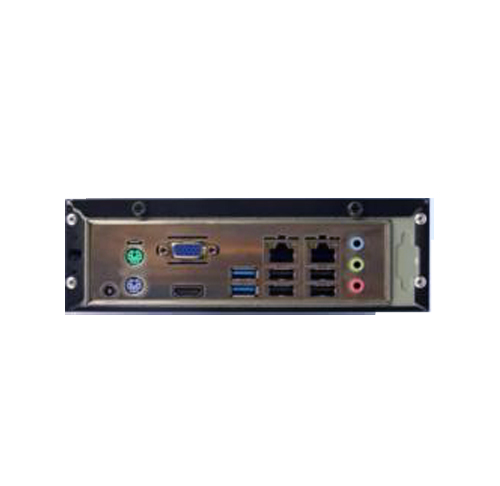

Back Panel I/O
• 2 x USB 3.0 Ports
• 4 x USB 2.0 Ports
• 1 x HDMI® port
• 1 x VGA port
• 2 x LAN ports
• 1 x DC-In 2.5mm Jack port
• 2 x PS/2 Ports for Keyboard and Mouse
Internal I/O
• 2 x USB 2.0 Headers
• 1 x Serial COM Header
• 1 x S/PDIF header
System BIOS
• AMI® UEFI BIOS

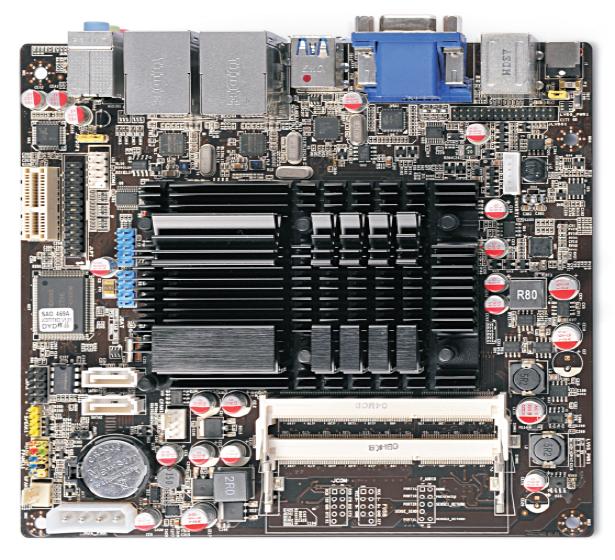

Systemboard
Small Form Factor
Back I/O

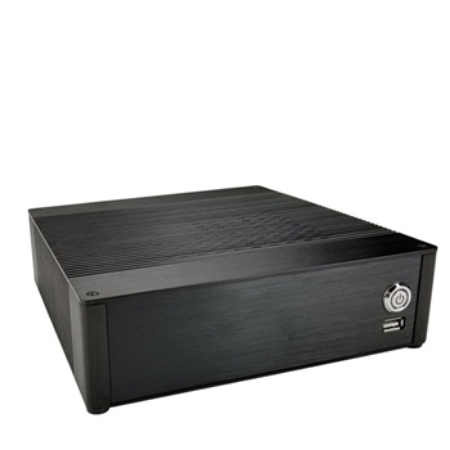

Chassis

300B Series Aluminum Mini Chassis
• Dimensions: 8.10"(W) x 8.10"(D) x 2.20"(H)
• Drive Bay: One 2.5" HD/Solid State Drive Bay
• System Weight: 3.9 lb. (Net) and 6 lb. (gross with packaging)
• Color: Black as default color, custom colors available with special order
• Supports VESA, wall mount or rackmount brackets
• Optional: 400B Aluminum 2.6"(H), 400A w/Slim DVD Bay, 400R with RISER Slot, 400S Swap Bay 2 x 2.5"
• Optional: 500B 3.5"(H) w/LP Slot, 500A DVD Bay +LP Slot 500D with 5.25" Bay, 500F Dust Filter, 500C LCD Control
• Optional: 1750C Aluminum Form Factor

Power Supply

• Power: DC12V 5A 60W or higher wattage Power Adapter 2.5mm plug (UL/CE/FCC Certified)
• Power Cord: Standard US Power Cord included, European Power Cord available as option
• Energy Star Compliance, Idle mode at <1W

OS Support
• Windows XP, Windows 7, IoT, Linux
Application
• Set Top Box, Network Appliance, Digital Signage, POS/Kiosk, Surveillance, IP/PBX, IoT/Edge System, etc.
Environment
• Operating Temperature: 0 to +55 C
• Non operating temperature: -20 to +70 C
• Vibration - Operating: 9.8 m/s2(1.0G) 5 to 500Hz
• Vibration - Non operating: 49 m/s2(5.0G) 15 to 500Hz
• Shock - Operating: 3,920 m/s2 (400G) 2ms
• Shock - Non-Operating: 8,820 m/s2 (900G) 1ms
• Operating Relative Humidity: 8% to 90% (non-condensing)
• Non-operating Relative Humidity: 5% to 95% (non-condensing)
• MTBF: 100,000 Hours
• RoHS Compliance
*
*
*
